FIELD OPERATION
59

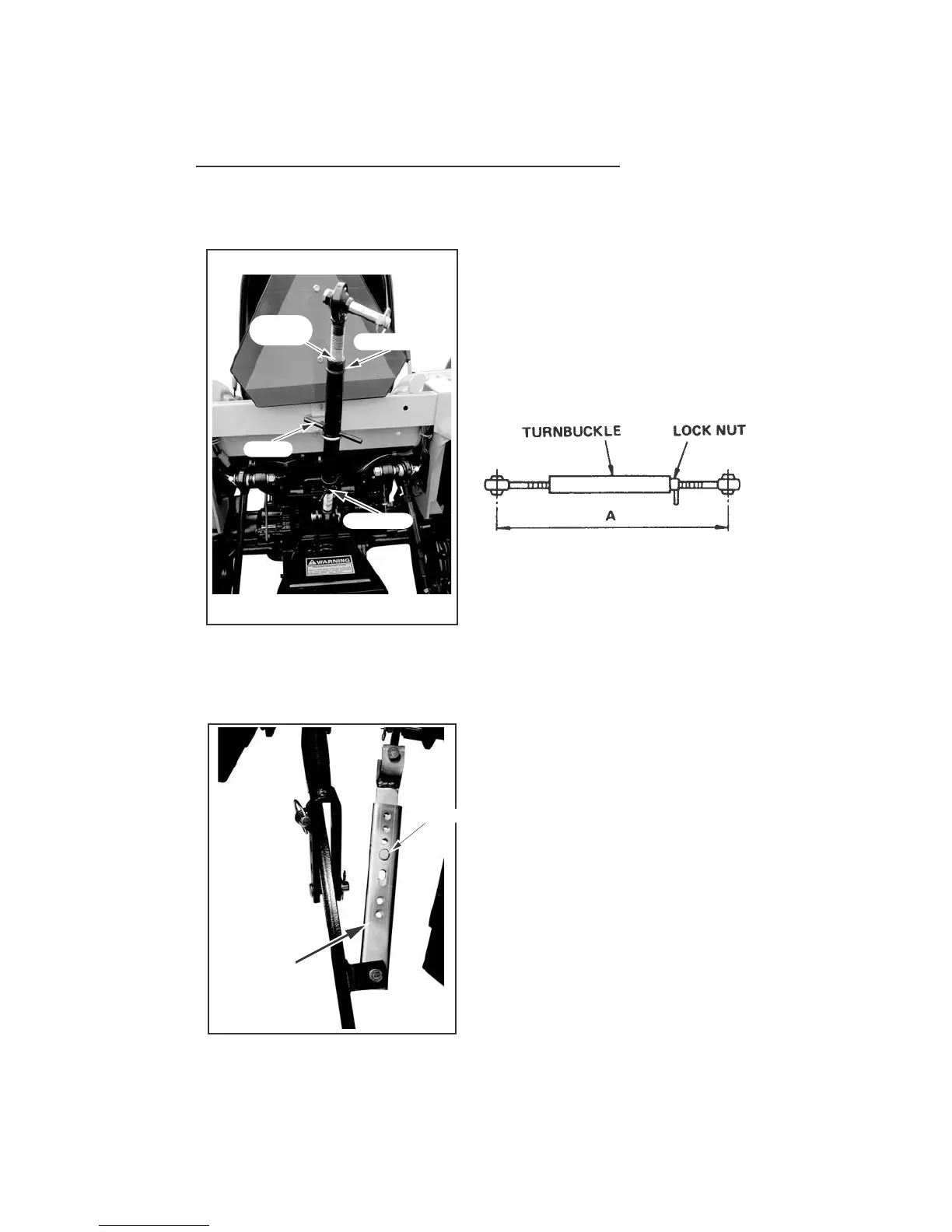

Upper Link
The length A of the upper link can be
adjusted from 470 to 750 mm (18.5 to
29.5 inches).
Turn the turnbuckle clockwise to
shorten the link or counterclockwise
to lengthen the link.
IMPORTANT: After the upper link is correctly adjusted, make sure the
lock nut is tightened against the turnbuckle.
Stabilizer
When side movement of the hitch is
undesirable or hazardous, the lateral
swing is adjusted by select hole on
the stabilizer.
Slide REAR STABILIZER and adjust
hole REAR and FRONT STABILIZER
set clevis pin the hole.
IMPORTANT: After making final
adjustments carefully raise the
implement to make sure that there is
proper clearance between the
implement and tractor components.
NOTE: Insert pin to hole in clevis pin
surely.
UPPER
LINK
TURNBUCKLE
HOOK
LOCK NUT
SLIDER PLATE
LOCK PIN
HOOK
TURNBUCKLE
UPPER
LINK
