FIELD OPERATION
58
HITCH SYSTEM ADJUSTMENTS
The upper and lower links must be
adjusted correctly so the implement
can work at the needed depth and the
links are free to move up and down
with the shape of the ground.
1. Connect the lift links to the tractor
and to the lower links. Make sure
the lift links are installed on the
proper Sides as shown below.
2. The RH side lift link is adjustable
by turnbuckle to obtain the desired
position of the hitch point.
Turn the turnbuckle clockwise to
shorten the link or counterclockwise
to lengthen the link.
IMPORTANT: After the lift link is adjusted, make sure the locknut is
tightened against the turnbuckle.

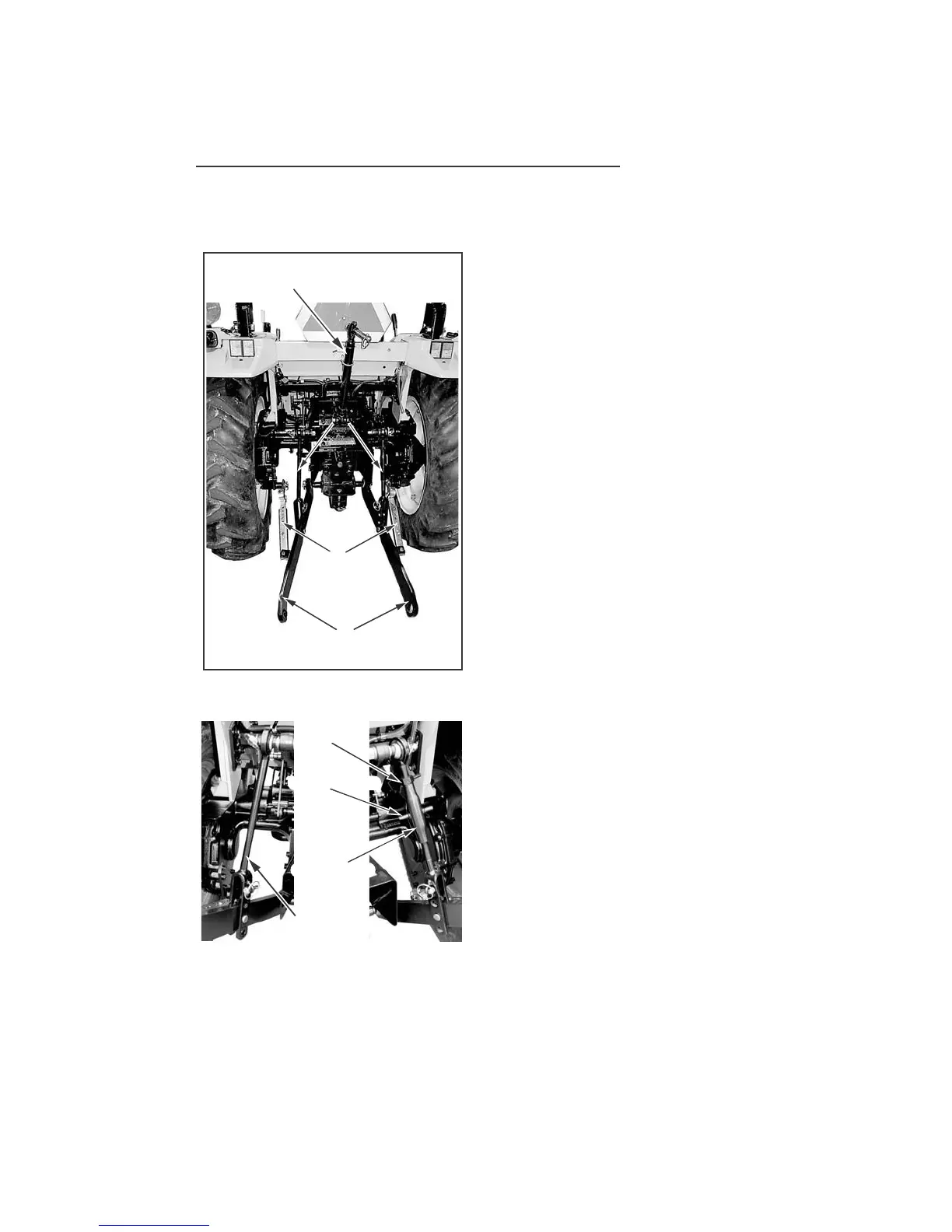

LOCK NUT
Lift Links
UPPER
LINK
LOWER LINKS
LIFT
LINKS
LIFT
LINKS
STABILIZERS
TURN BUCKLE
LH LIFT LINK
RH LIFT LINK
