Cub Cadet 7530

TIRES/WHEELS/SPACING/BALLAST
71

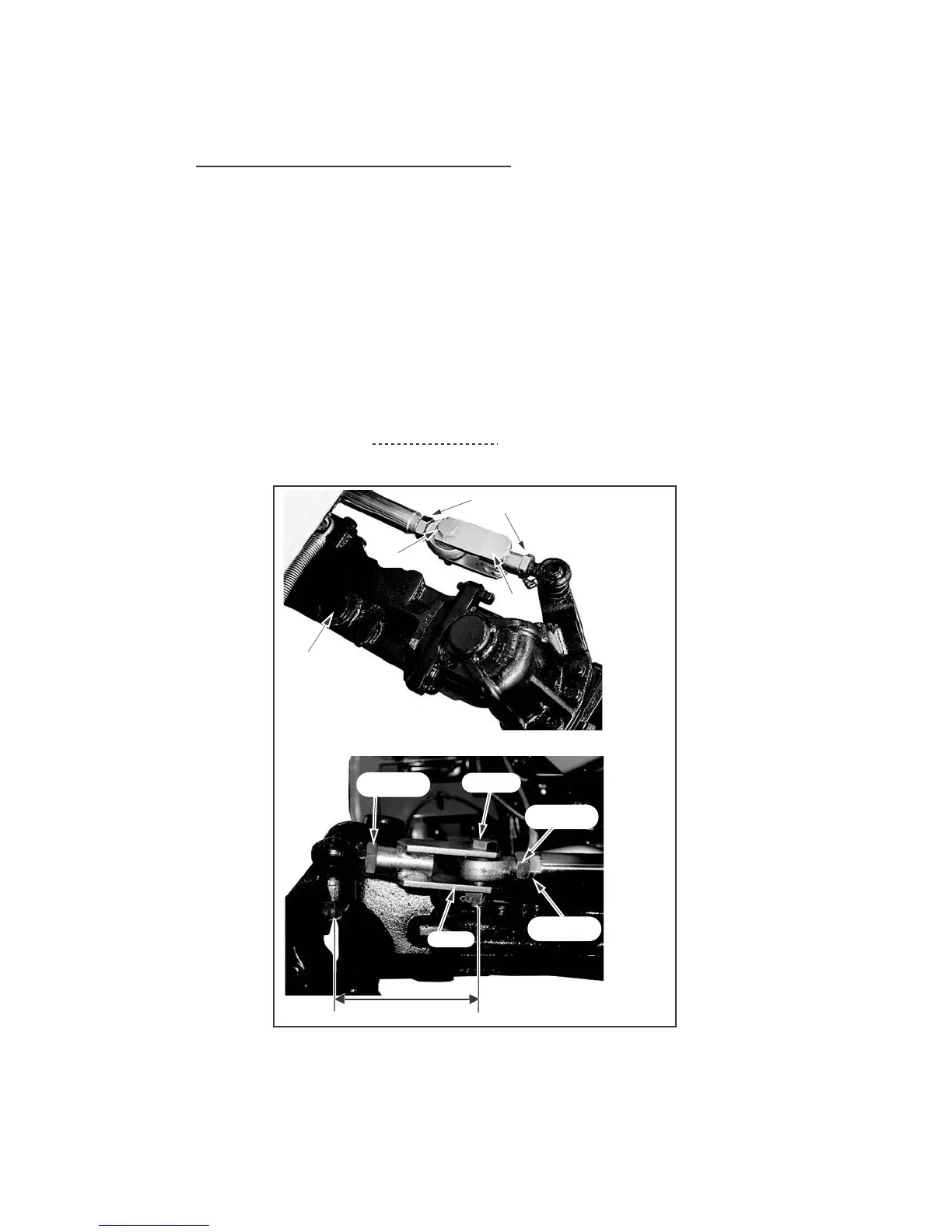

TO ADJUST THE TOE-IN, USE THE FOLLOWING PROCEDURE:
Adjust the rods to be equal the dimensions A on both side.
1. Loosen the lock nut at the rod end.
2. Turn the rod to shorten or lengthen the tie rod.
3. Look the lock nuts.
Tightening torque 147 to 166 Nm (109 to123lbft)
(RH SIDE)
(RH SIDE)
LOCK NUT
ROD END
BOLT
LOCK NUT
ROD
LOCK NUT
BOLT
ROD
FILL HOLE
A
