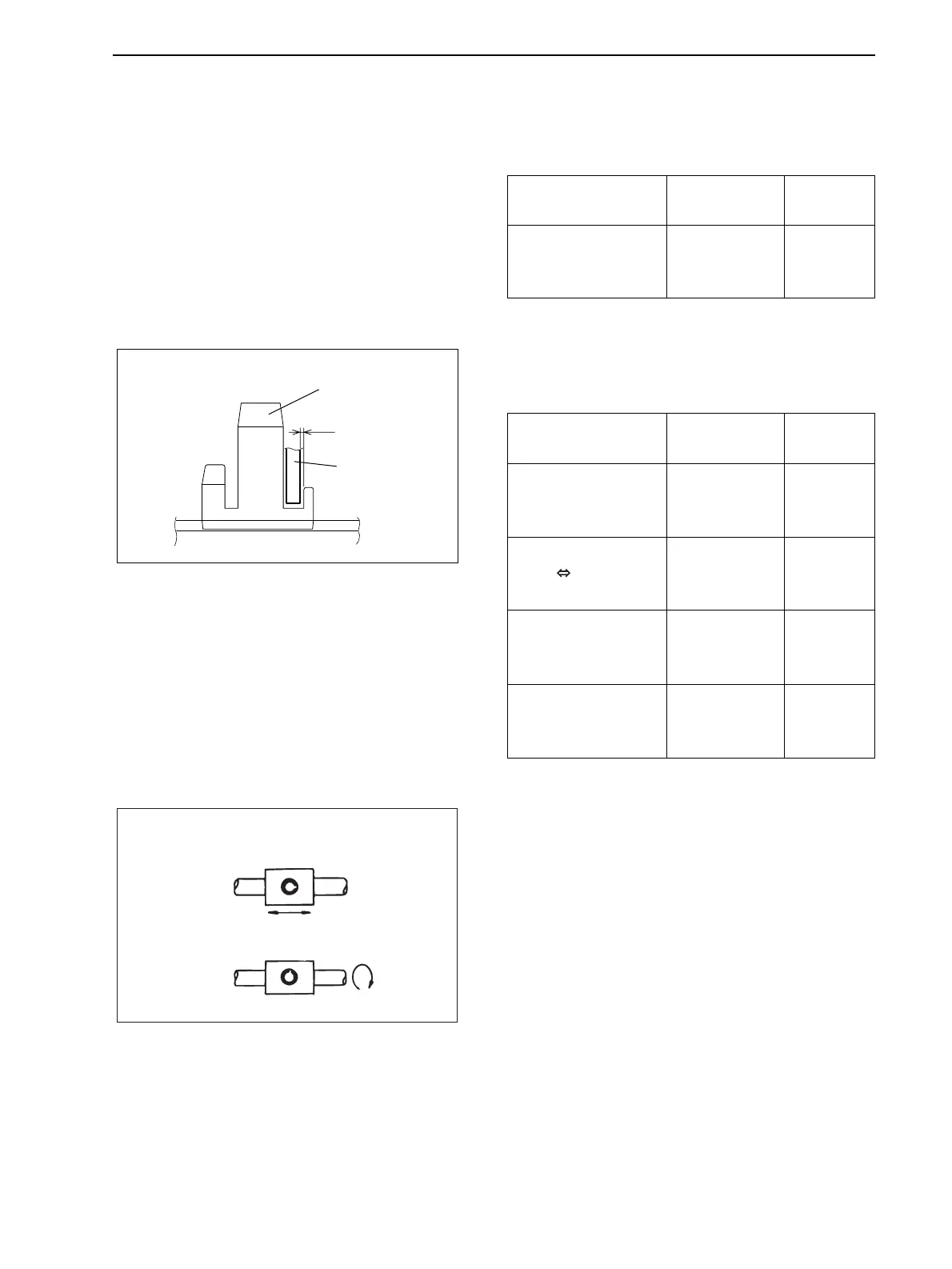

Cub Cadet 7532 User Manual

Transmission 5
76
2 Backlash of Gear
Change the spur gear with backlash exceeding the usable
limit.
(Unit: mm {in})
3 Clearance between Shift Fork and Gear groove
Measure the clearance between the shift fork and gear
groove and change if exceeding the usable limit.
(Unit: mm {in})
4 Assembly of Transmission Control
Refer to the drawing for the direction of slit for spring
pin.
• When driving the spring pins, as shown in the
figure, toward the split (joint) to the same direction
which the force is received.
Item
Referential
Val ue
Usable
Limit
Backlash of spur gear
for transmission
0.10 to 0.30
{0.004 to 0.012}
0.35
{0.014}
(Clearance)
Item
Referential
Val ue
Usable
Limit
Clearance bet. sub
gearing fork and gear
groove
0.35 to 0.65
{0.014 to 0.026}
1.00
{0.039}
Clearance bet.
2WD 4WD shift
piece and gear groove
0.20 to 0.40
{0.008 to 0.016}
1.00
{0.039}
Clearance bet. rear
PTO fork and gear
groove
0.35 to 0.65
{0.014 to 0.026}
1.00
{0.039}
Clearance bet. MID
PTO fork and gear
groove
0.35 to 0.65
{0.014 to 0.026}
1.00
{0.039}
Gear
Clearance
Fork
PR8W3-098
Shift rail
Lever boss
GS7W3-133
