Transmission 5
58

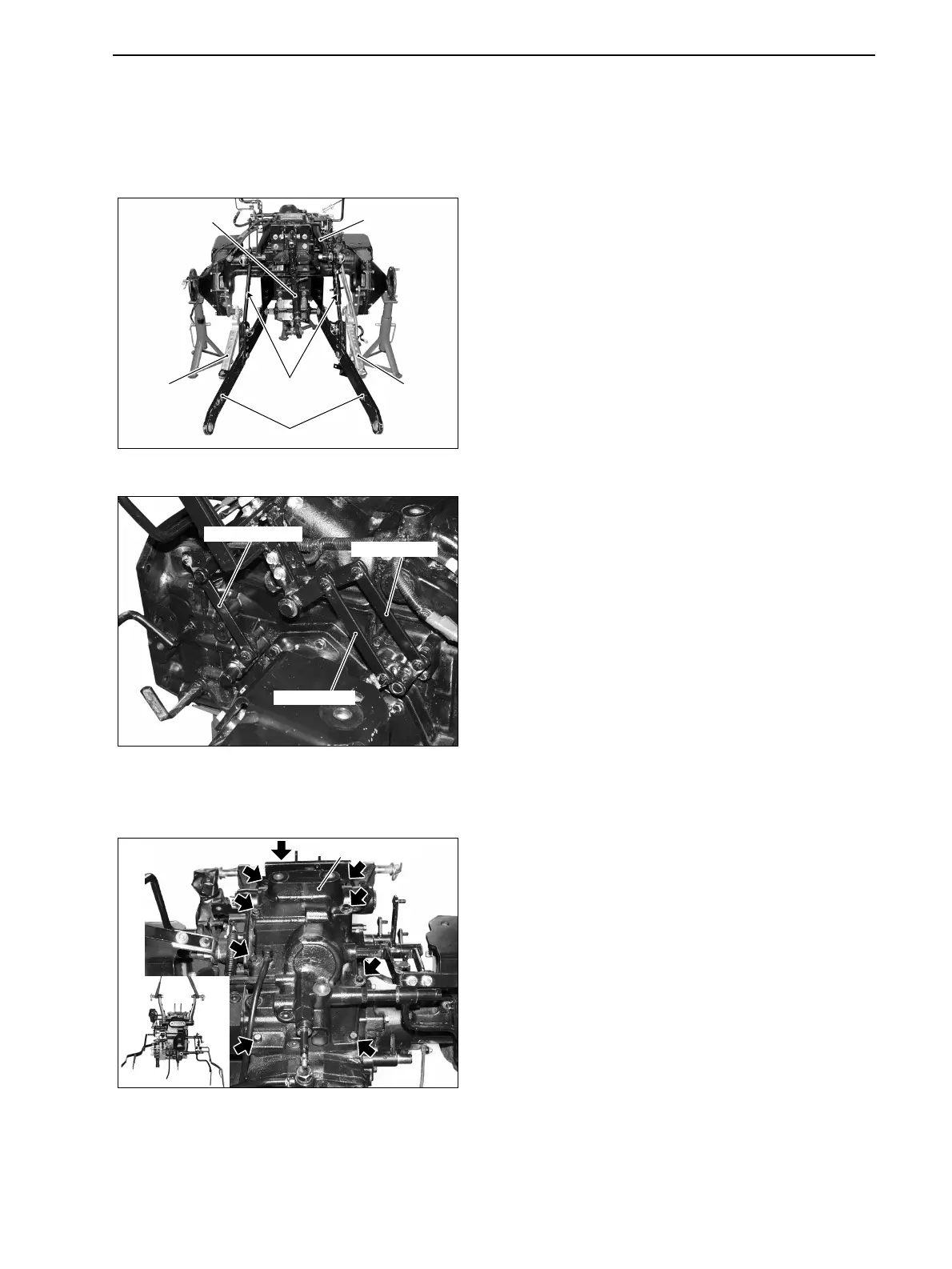

5.3 Removal and Disassembly of
Transmission
Follow the following procedure for removal and
disassembly of transmission.
1. Remove the 3-point link.
1) Remove the snap pin at rear axle housing and
disconnect the stabilizers.
2) Remove the linchpin from lift arm and
disconnect it lift rods LH/RM from lift arm.
3) Remove the linchpin at the mounting point of
lower link and remove 3-point link.
4) Remove the snap pin at top link bracket and
remove clevis pin and top link.
2. Remove the harness and link.
• Rear PTO link
• MID PTO link (Option)
• Range shift link
3. Remove the mounting bolts (9 pieces) for hydraulic
case.
4. Remove the hydraulic case assembly by hoisting.
Liftrod
Stabilizer Stabilizer
Toplink
Liftarm
Lowerlink
GZ3W24-007
MIDPTOlink
GZ3W24-009
Rangeshiftlink
RearPTOlink
Hydrauliccaseassembly
GZ3W24-010
