Rear Axle and Brake 6
84
6.4 Removal and Disassembly of
Rear Axle and Brake
1 Removal of Rear Axle Assembly
After removing the link, tire and fender, follow the
following procedure for removal of rear axle assembly.

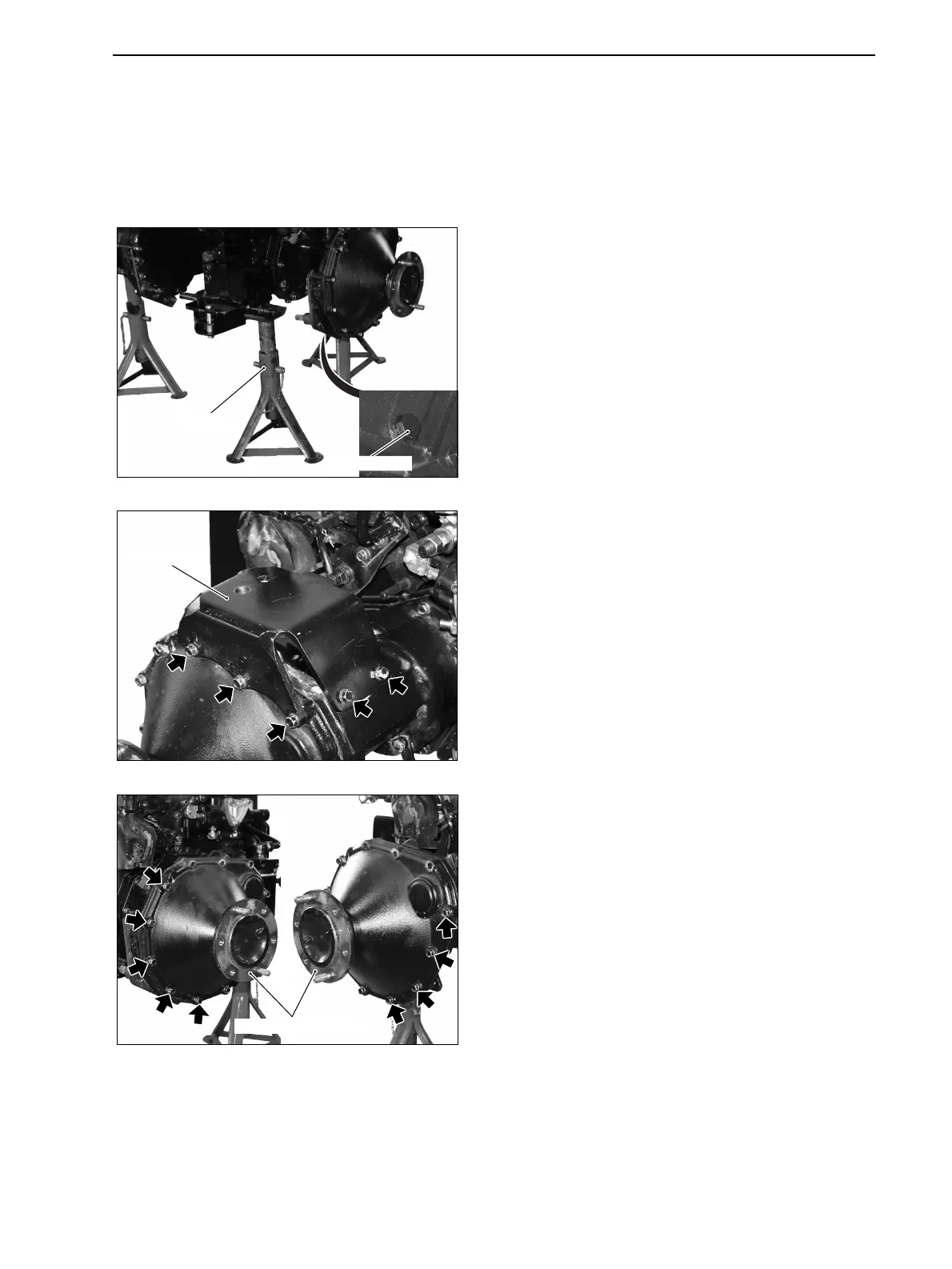

1. Set the stand in the position as shown. Drain the
transmission oil from the rear axle case.
2. Remove the bracket from rear axle housing with
removing the mounting bolts.
3. Remove the rear axle assembly with removing the
mounting bolts.
Drainplug
Stand
GZ3W25-004
Bracket
GZ3W25-005
Rearaxleassembly
GZ3W25-006
