Cub Cadet 7532

Front Axle 7
95
7Front Axle

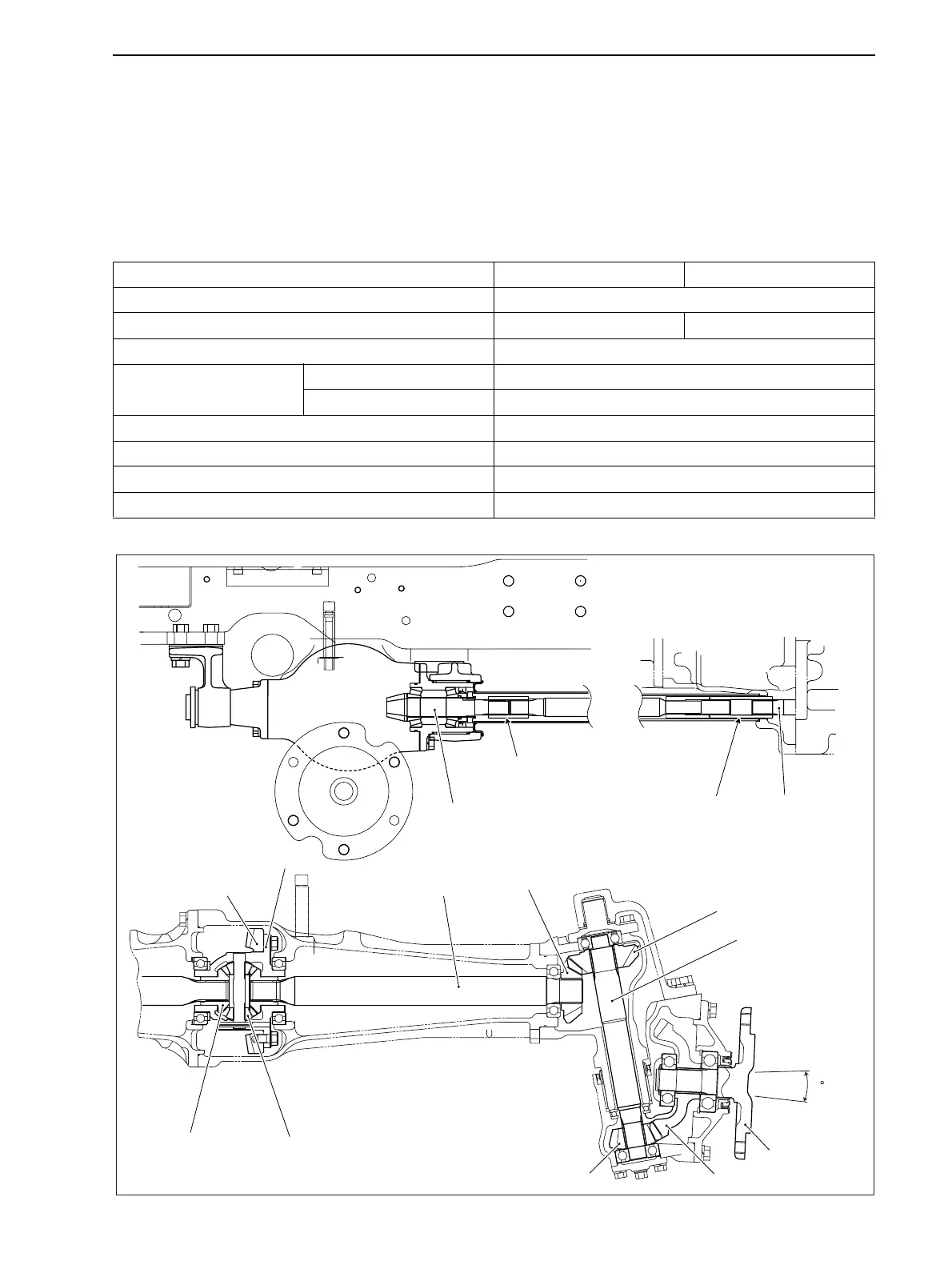

7.1 Structure and Specification of Front Axle
• Center pivot reverse Elliot type is applied to the front axle.
• Bevel type is applied to the front axle with the smaller turning radius at cutting angle interior: 60°, external:
54°, and caster 3°.
(Unit: mm {in})
Model 7530 7532
Tread (front wheel) (mm) 1070 {42.13}
Ground clearance (mm) 337 {13.3} 364 {14.3}
Swing angle 5°
Steering Angle
Interior angle 60°
0
-2°
External angle 54°
0
-2°
Kingpin angle 10°
Camber 2.5°
Caster 3°
Toe in 0 - 10
Pinionshaft6T
Frontjoint
Rearjoint
4WDshaft
Sidegear
Piniongear
Ringgear35T
Deferentialcase
Deferentialshaft
Shaftgear14T
Gear18T
Shaft
Gear32T
Gear12T
Wheelshaft
GZ3W26-001
5
