Steering 8
119

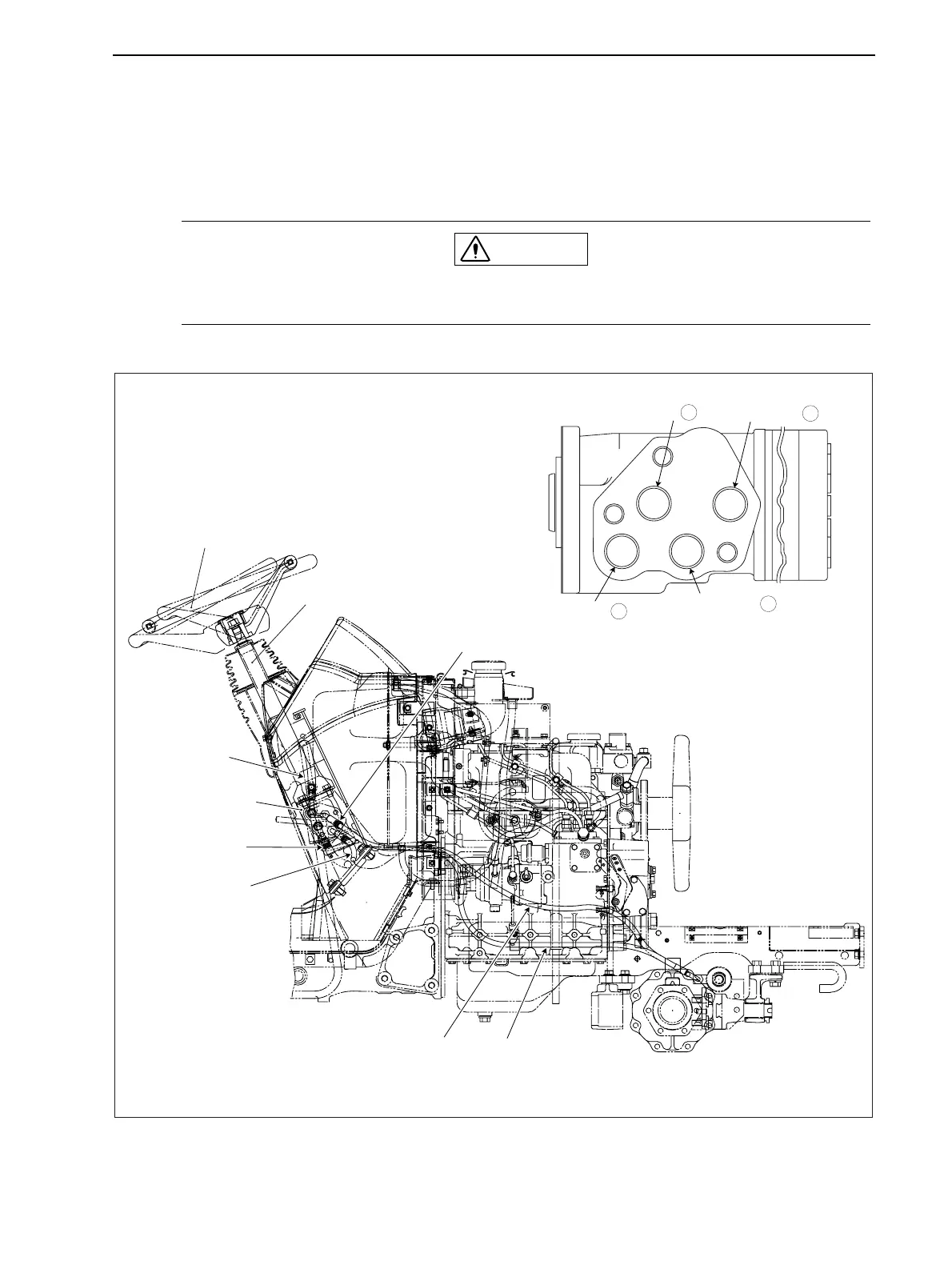

8.3.2 Installation of Steering Unit Hose
1. Assemble 4 units of steering hoses (T, P, L, and R) with caution not to misassemble. Tighten the fittings on
both sides of hose with torque at 29.4 to 39.2N•m {300 to 400kgf•cm, 21.7 to 28.9lbf•ft}.
2. Fix the steering hose R and L with some slacks using clamp to prevent obstruction from each other when the
front axle assembly swings.
CAUTION
After connecting the hoses, make sure that the tires steer left by left-operation of the steering
wheel.
Leftport
Rightport
Tankport
Pumpport
Steeringwheel
Returnhose
Pressurehose
HoseL
HoseR
Steeringshaft
Steeringunit
(Orbitroll)
HoseL HoseR
T
P
L
R
GZ3W27-006
