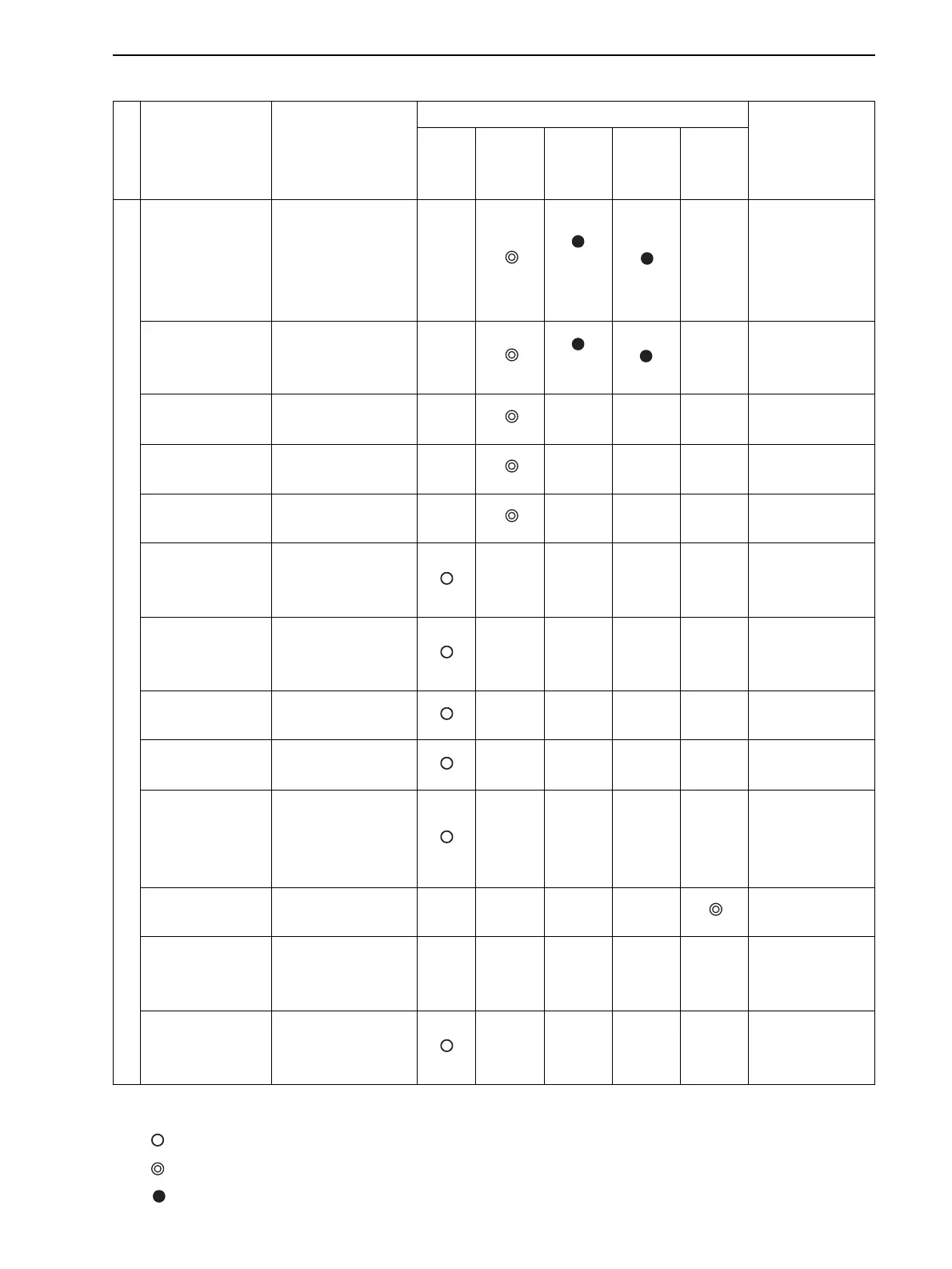

Periodical Inspection and Maintenance List 8
29
• Description of symbols
..........Perform maintenance work such as inspect, adjust, refill, or clean before operation of the tractor.
..........Perform maintenance work such as inspect, adjust, refill, or clean periodically.
..........Change periodically.
Classification
Inspecting and
Maintenance Item
Inspecting Details
Inspecting/Maintenance Period
Remarks
Pre-Op 50hrs 100hrs 200hrs 300hrs
Engine Related
Transmission oil
Inspection, refilling,
and change
(1
st
time)
GEAR : 29L{7.7gal}
HST :32L {8.5gal}
of genuine oil or over
API.GL - class 4, SAE
80W (for wet brake)
Front axle oil
Inspection, refilling,
and change
(1
st
time)
4.0L{1.1gal} of genuine
oil or over API.GL -
class 4, SAE 80W
Tie rod (left/right),
Rod end
Inspection and
refilling
Grease
Brake link
Inspection and
refilling
Grease
Differential locking
device pedal
Inspection and
refilling
Grease
Clutch pedal
Inspection and
adjustment
Backlash :
20 to 30mm
{0.79 to 1.18in}
Brake pedal
Inspection and
adjustment
Backlash :
35 to 45mm
{1.38 to 1.77in}
Actuation of each
lever
Inspection
Looseness of bolt
and nut
Inspection
Air pressure of tire Inspection
FR : 0.147MPa{1.5
kgf/cm
2
}, RR :
0.098MPa{1.0 kgf/
cm
2
}
Toe-in
Inspection and
adjustment
0 to 5mm
{0 to 0.39in}
Power steering
cylinder hydraulic
hose
Inspection and
change
Change every 2
years.
Steering Wheel Inspection
Backlash :
20 to 50mm
{0.79 to 1.97in}
