3Clutch
36
10. Remove the support by removing the fixing bolts of
the support.
3 Removal of Clutch Housing Assembly
1. Remove the block.
1) Disconnect the hydraulic pipe from the block.
2) Remove the block by removing the mounting
bolt of block.
2. Remove the pipe.
3. Remove the brake control link RH and LH.
1) Remove the cottor pin from clevis pin the end of
brake control link RH and LH.
2) Remove the brake control link RH and LH.

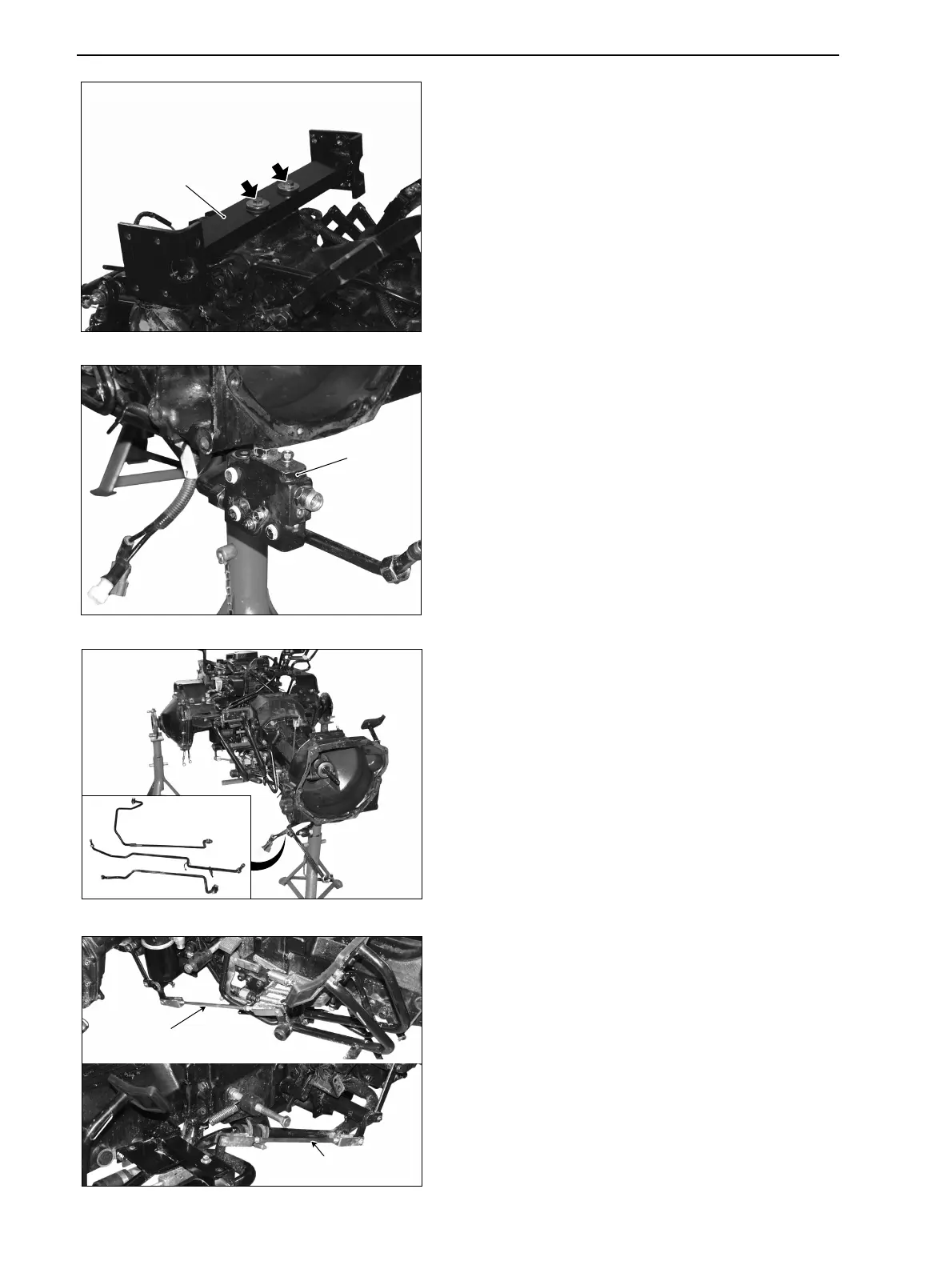

Support
GZ3W22-016
Block
GZ3W22-017
GZ3W22-018
BrakecontrolLinkLH
BrakecontrolLinkRH
GZ3W22-019
