-18-
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 603-0132 Rod, Quick Attach 1
2 603-0328C Frame 1
3 703-2257
777I20296
Drawbar
Graphic, Transmission Release Lever
1
1
4 703-2577 Bumper 1
5 710-0597 Screw, Hex Cap, 1/4-20 x 1.0 6
6 710-0623 Screw, Hex Wsh Hd Tapp 3/8-16 x .75 2
7 710-1260A Screw, Hex Wsh Hd Tap 5/16-18 x .75 4
8 710-3261 Screw, Hex Cap, 3/8-16 x 7.0 1
9 712-0431 Nut, Hex Flange Lock, 3/8-16 1
10 712-3027 Nut, Hex Flange Lock, 1/4-20 8
11 722-0258 Grommet, Insulator 6
12 732-3002 Spring, Latch 1
13 736-3090 Washer, Flat, .255 x .72 x .60 6
14 738-0255 Bolt, Shoulder 2
15 750-04198 Spacer, Idler, .411 x .720 x 3.67 2
16 750-3169 Spacer, .28 x .40 x .42 Lg 6
17 756-3045 Pulley, Idler 2
18 732-0970 Belt Guide 1

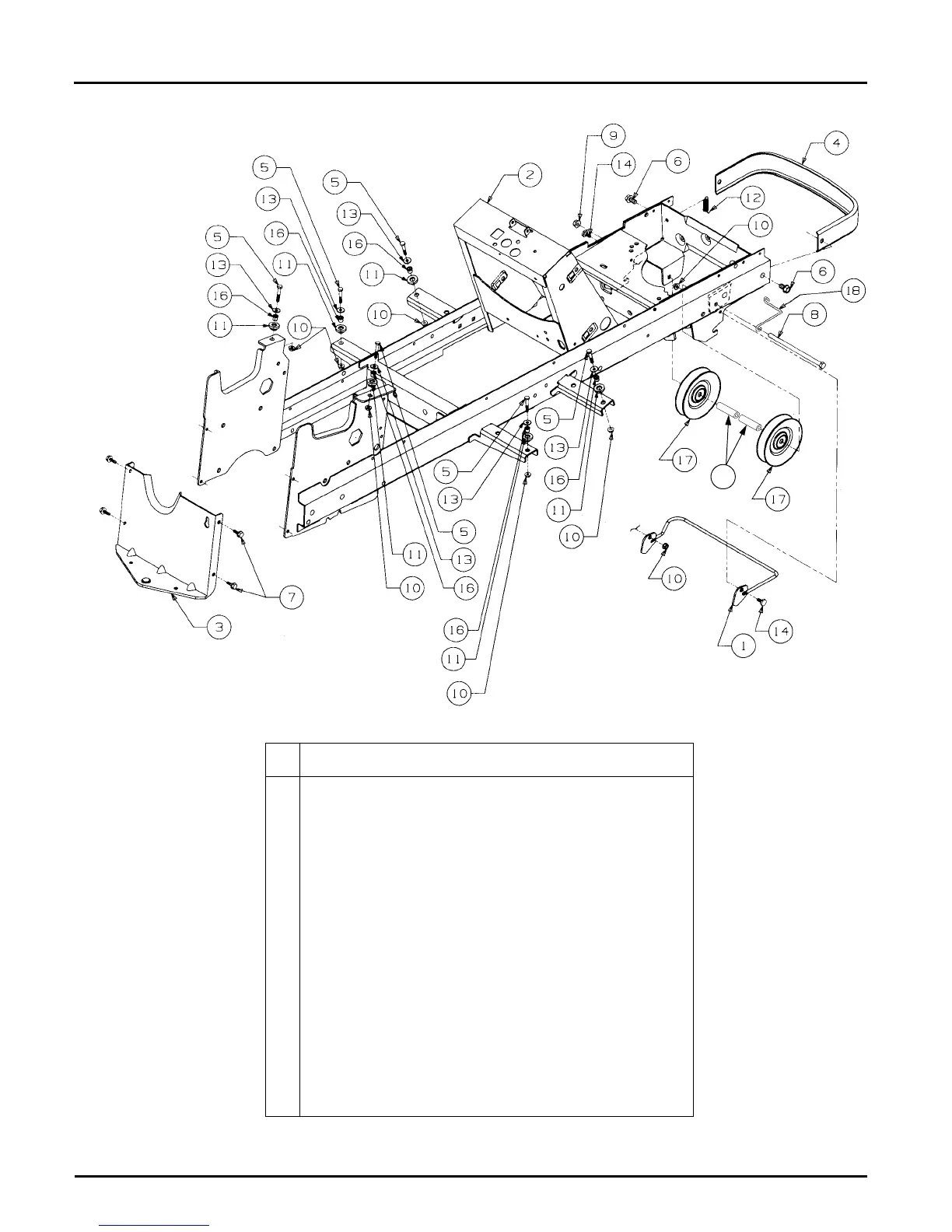

FRAME AND DRAWBAR
15
To Next Page
