Cub Cadet LT 2180 - Controls and Indicators

-9-
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 603-0179
759-3764
Shaft Assembly, Drive, 29.06 Lg
Kit, Drive Barrel
1
2
2 618-04110 Transmission Assembly,
Does NOT include wheel hub as-
semblies and brake spring
1
3 618-3088 Pinion Assembly, Input 1
4 618-3243 Pump, Hydrostatic 1
5 710-1260A Screw, Hex Wsh Tap, 5/16-18 x .75 2
6 710-3180 Screw, Hex Cap, 5/16-18 x 1.75 GR5 4
7 710-3195 Screw, Hex Cap, 5/16-18 x 4.5 GR5 2
8 710-1062 Screw, Hex Patch, 1/4-20 x 1.25 GR5 4
9 710-3288 Screw, Hex Patch, 1/4-20 x 1.62 GR5 4
10 710-3290 Screw, Hex Wsh Tap, 3/8-16 x 1.25 5
11 712-3059 Nut, Hex Top Lock Jam GR5, 1/2-20 1
12 748-3093 Adapter, Pump 1
13 725-0157 Tie, Self-Clinch Cable 1
14 726-0205 Clamp, Hose 1
15 731-3297 Fan, 10 Blade Cooling 1
16 736-0253 Washer, Bell, 1/2 ID 1
17 759-3330 Line, Fuel, 7in (10ft Bulk) 1
18 736-3099 Washer, Wave, 1.96 x 2.44 x .06 1
19 737-0296 Vent 1
20 719-3096 Adapter, Drive Shaft 1
21 711-3330 Pin, Locating, .352 Dia x 1.156 1
22 736-3008 Washer, Flat, .344 x .75 x .12 2
23 750-0507 Spacer, .38 x .625 x .275 2
REF.
NO.
PART
NUMBER DESCRIPTION QTY.

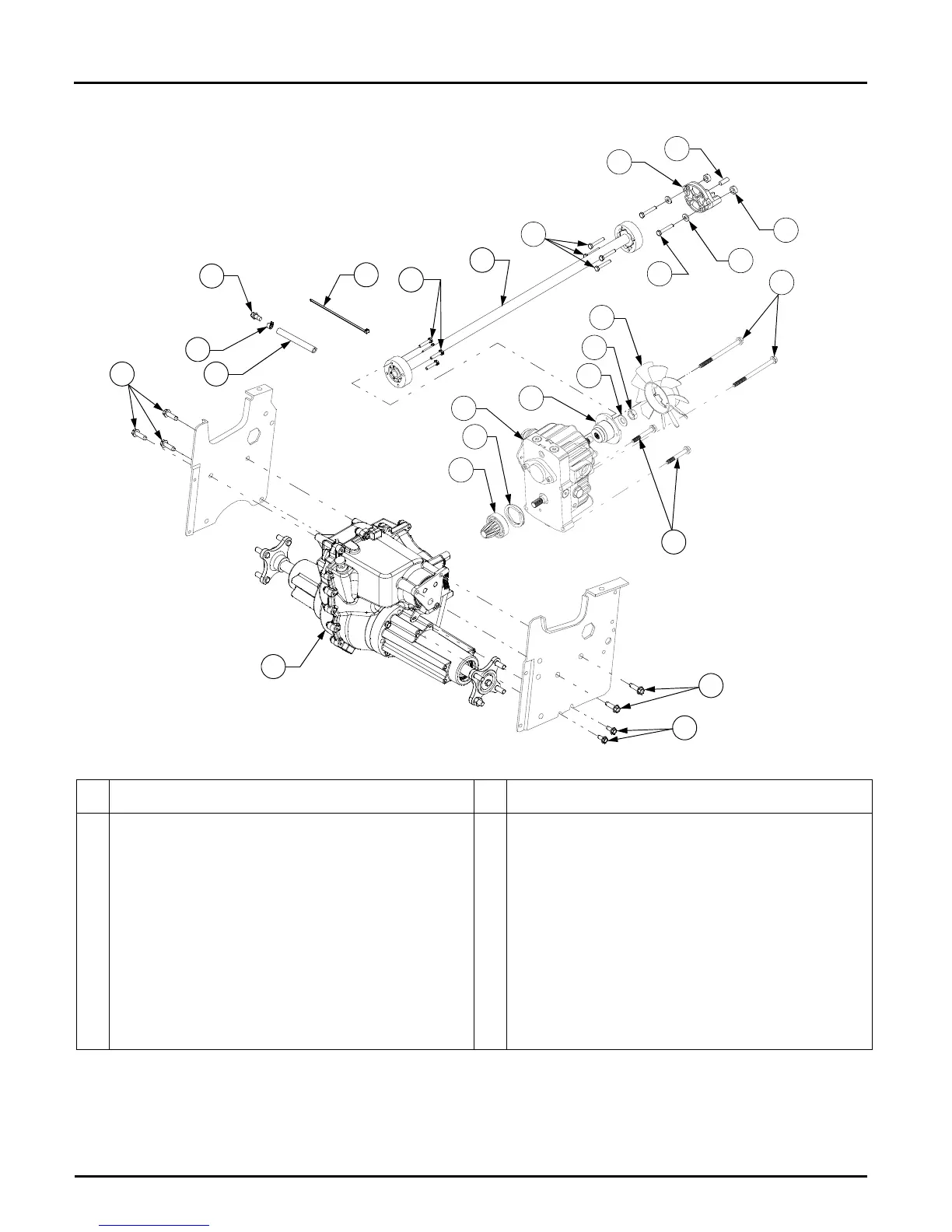

DRIVE LINE
19
3
4
8
7
11
1
20
16
18
12
6
15
9
2
5
6
10
10
13
14
17
22
21
23
