Cub Cadet LT 2180 Parts Manual

-29-
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 603-0066 Knuckle Assembly, Steering 2
2 710-3066 Screw, Hex Cap, 3/8-16 x 2.75 GR8 2
3 710-3103 Screw, Hex Cap, 5/16-18 x 2 GR5 2
4 712-3054 Nut, Hex Lock, 3/8-24 GR5 2
5 712-0431 Nut, Hex Flanged Lock, 3/8-16 2
6 712-0711 Nut, Hex Jam, 3/8-24 GR2 4
7 712-3004A Nut, Hex Flange Top Lock, 5/16-18 2
8 712-3083 Nut, Hex Top Nylon Lock, 1/2-13 1
9 719-3095 Axle, Front Pivot 1
10 723-0156 Joint, Ball, 3/8-24 4
11 736-0188 Washer, Flat, .760 x 1.49 x .06 Thk. 2
12 737-3000 Fitting, Lube, 3/16 Drive Type 3
13 738-3110 Bolt, Pivot Shoulder, 3/4 Dia x 2.23 1
14 747-3171 Rod, Tie 2
15 748-3049 Arm, Steering 2
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
734-3186 Tire, Cub Tread, 15 x 6 x 6 2
1 634-3015 Rim Assy, Front 2
2 710-3119 Bolt, Hex Patch, 3/8-16 x .75 GR5 2
3 731-3020 Cap, Hub 2
4 734-0255 Valve, Tubeless Air 2
5 736-3039 Washer, Flat, .406 x 1.5 x .110 2
6 736-3040 Washer, Flat, .406 x 1.92 x .06 2
7 737-0224 Fitting, Grease 2
8 741-3032 Bearing, Ball 4
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
734-3189 Tire, Cub Tread, 20 x 9 x 8 2
1 634-3187 Rim Assy, Rear 2
2 712-3050 Nut, Lug, 7/16-14 8
3 734-0255 Valve, Tubeless Air 2

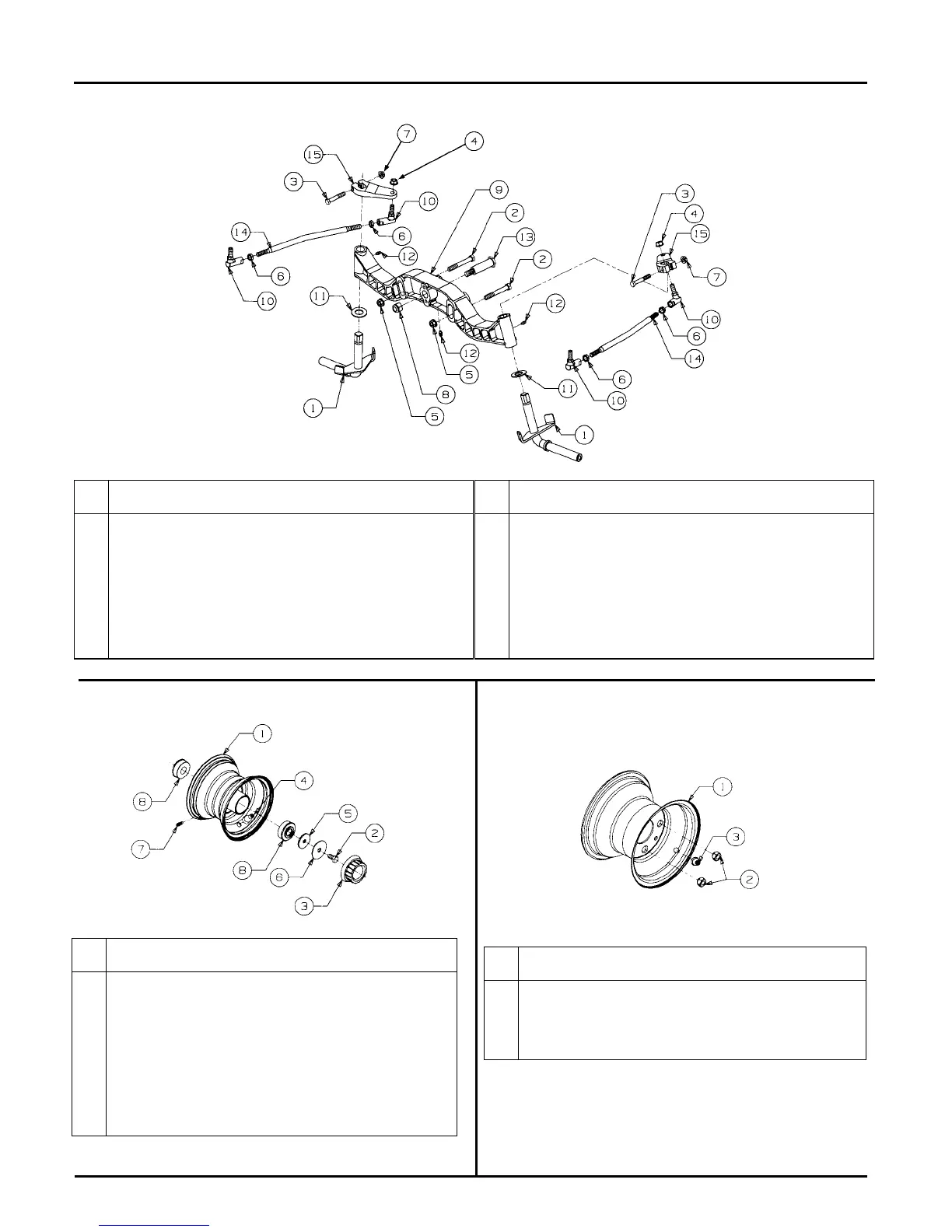

FRONT AXLE AND CONNECTIONS
FRONT WHEEL
REAR WHEEL
