15. SERVICE THE ELECTRICAL SYSTEM
Sc2400 Operator’s Manual
■ Replace the Headlight Bulb
IMPORTANT: Avoid damage.
●NEVER touch the headlight bulbs with bare fingers,
otherwise, the bulb may fail prematurely. When
inspecting or replacing the bulb, use gloves or a piece of
cloth to handle the bulb.
1. Park the tractor safely and securely.
2. Stop the engine and remove the key from the starter
key switch.
3. Open the hood.
4. Remove the headlight cover.
5. Turn the headlight bulb socket counterclockwise
slightly to remove it from the headlight bulb housing.
●The halogen light bulb contains compressed gas. If
the glass has been scratched or is dropped, the bulb
may shatter. Wear protective goggles and handle
the bulb carefully when replacing it.
6. Remove the old headlight bulb from the bulb socket.
7. Install new one into the bulb socket and fix it.
8. Turn the headlight bulb socket clockwise slightly and
fix it to the bulb housing.
9. Put on the headlight cover on the headlight bulb
housing and fix it.
10.Close the hood.
11.Check that the headlights light normally.

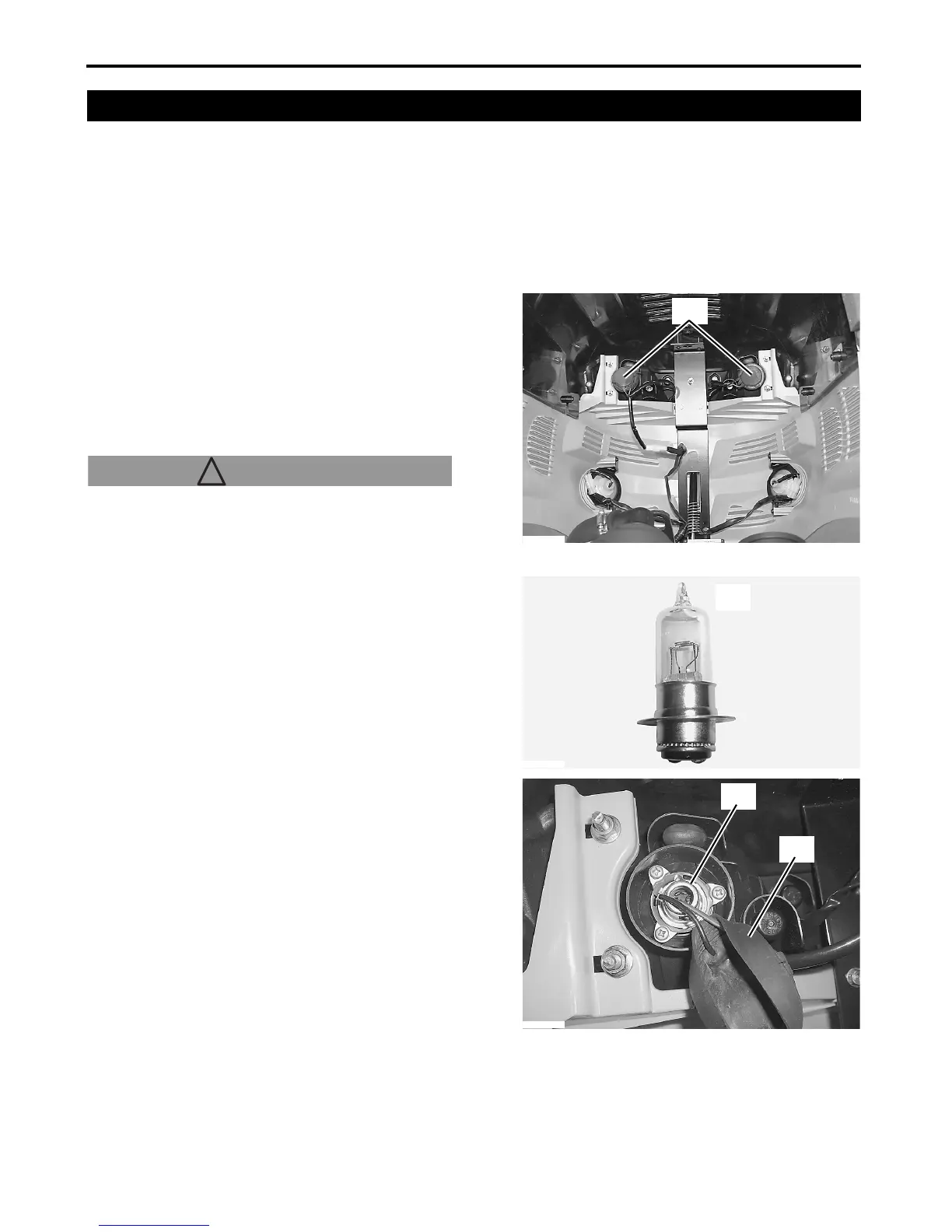

(A) Headlight assembly
(B) Headlight bulb
(C) Headlight socket
(D) Headlight cover
3. Bulb
P3014935
(A)
! WARNING! WARNING
P3014955
(B)
P3014950
(C)
(D)
