Cub Cadet SERIES 7000 7264 User Manual

-29-

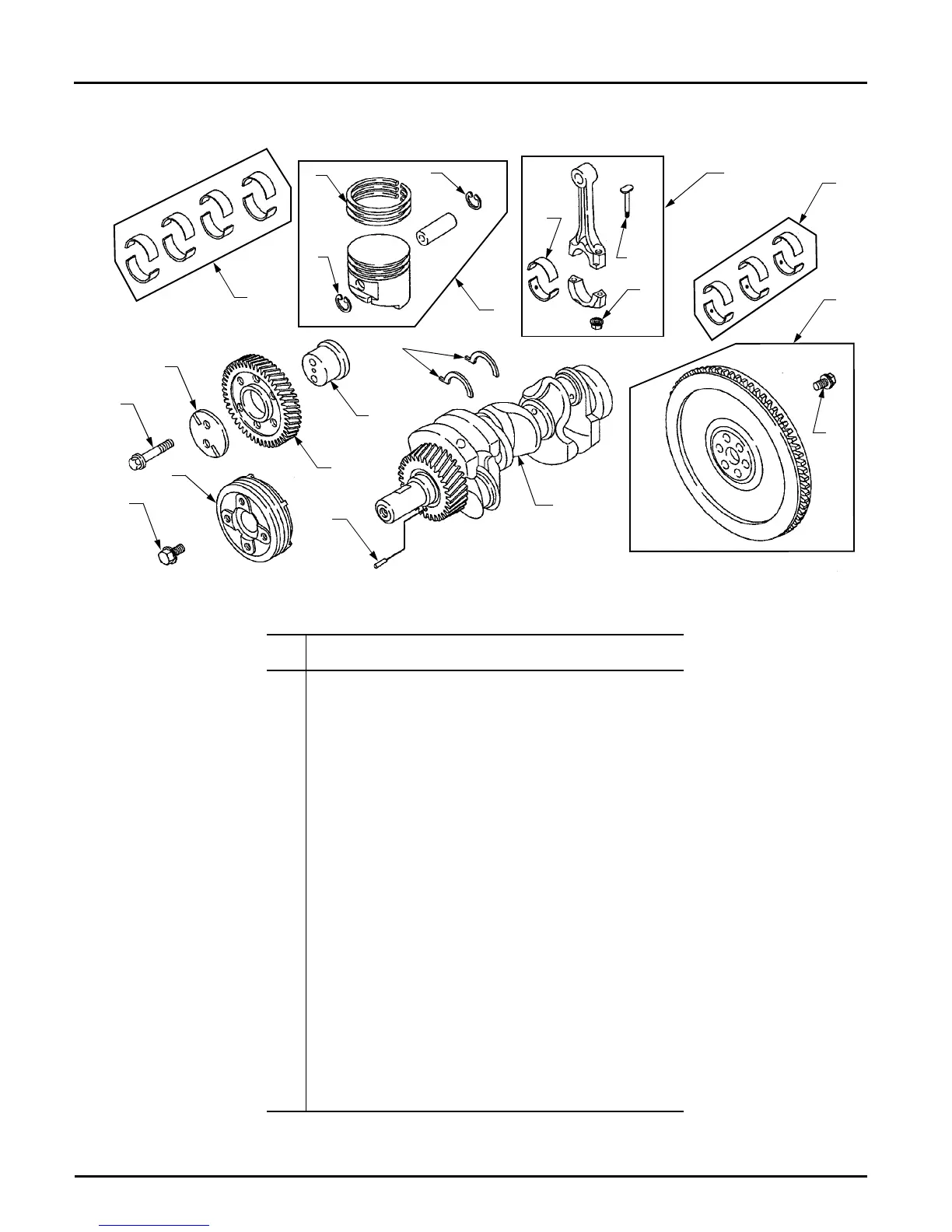

CRANKSHAFT, PISTONS & FLYWHEEL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
5
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 BS-825552 Crankshaft ....................................... 1
2 BS-825303 Flywheel ........................................... 1
3 BS-825354
BS-825355
Piston Assembly, Standard ..............
Piston Assembly, .010 Oversize ...
3
3
4 BS-825187
BS-825188
Ring Set, Standard ..........................
Ring Set, .010 Oversize ................
3
3
5 BS-820402 Lock Ring, Piston Pin ....................... 6
6 BS-825171 Rod, Connecting .............................. 3
7 BS-820128 Screw, Connecting Rod ................... 6
8 BS-820080 Screw, Hex, 10mm .......................... 6
9 BS-820081 Screw, Hex, 8mm ............................ 2
10 BS-820079 Screw, Hex ...................................... 1
11 BS-820073 Nut, Hex ........................................... 6
12 BS-820140
BS-820139
Washer, Thrust, Standard ................
Washer, Thrust, .005 Oversize .....
1
1
13 BS-820059 Pin, Locating .................................... 1
14 BS-820611 Gear, Drive ...................................... 1
15 BS-820116 Shaft, Gear ...................................... 1
16 BS-820117 Plate, Idler Gear ............................... 1
17 BS-820236 Pulley, Crankshaft ............................ 1
18 BS-820142 Bearing, Rod Standard .................... 3
19 BS-825019
BS-825060
Bearing Set, Rod Standard ..............
Bearing Set, Rod, .010 Undersize
3
3
20 BS-825040
BS-825039
Bearing Set, Main Standard .............
Bearing Set, Main, .010 Undersize
1
1
