Cub Cadet SERIES 7000 7264 User Manual

-5-

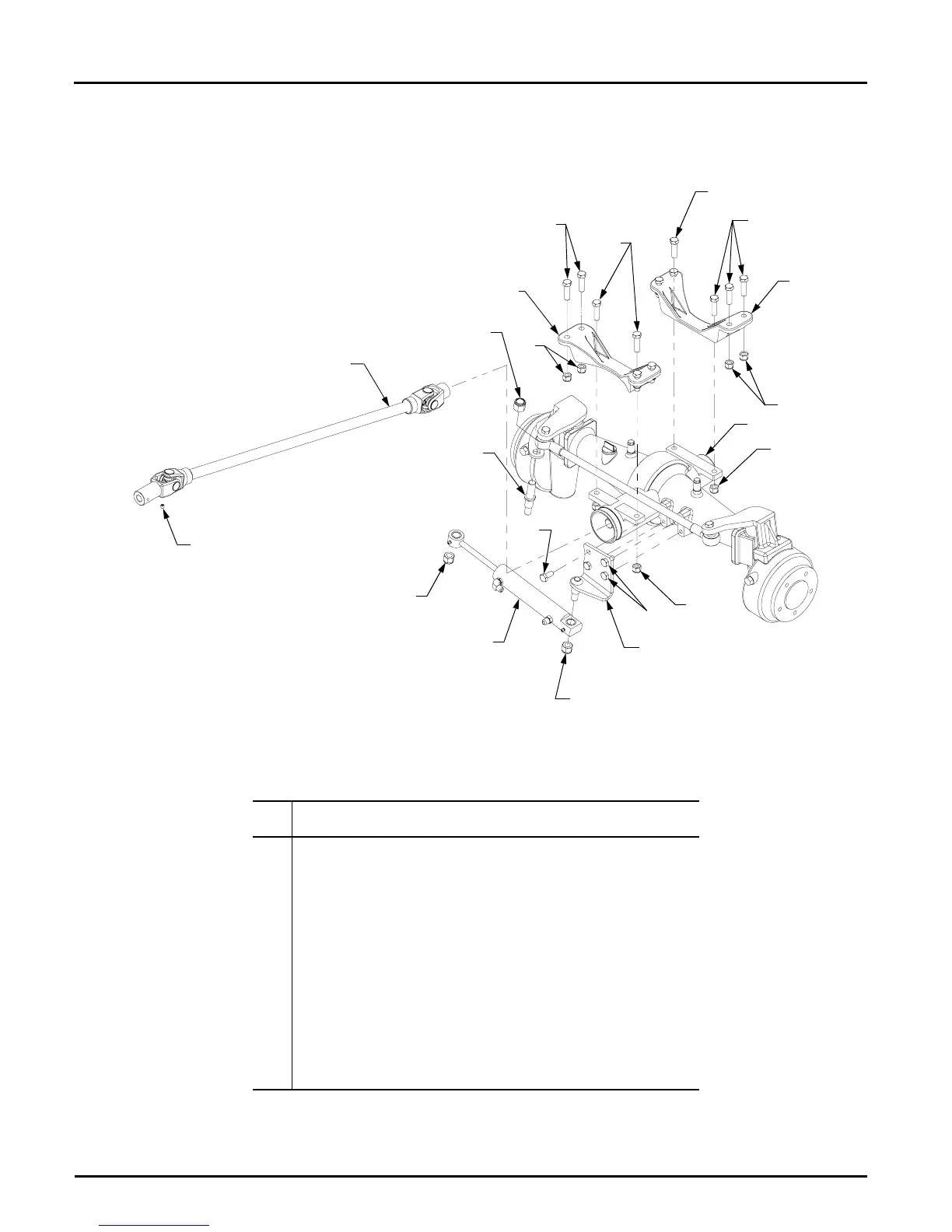

FRONT AXLE 4WD
REF.
NO.
PART
NUMBER CODE DESCRIPTION QTY.
1 603-0735 0637 Plate, Steering Cylinder Mtg. ......... 1
2 618-3207 Axle Assembly, Front 4WD ............ 1
3 710-1843 Screw, Hex Cap, M12-1.75 x 25.GR8 4
4 710-3006 Screw, Set, 5/16-18 x 3/8 .............. 1
5 710-3067 Screw, Hex Cap, 1/2-13 x 1.75 GR5 12
6 711-1410 Stud, Cylinder Mtg. ........................ 1
7 712-3016 Nut, Hex Nylon Insert Lock ............
5/8-11 GR5
2
8 712-3083 Nut, Hex Nylon Insert Lock ............
1/2-13 GR8
12
9 712-3107 Nut, Hex Lock, 3/4-10 .................... 1
10 717-3502 Cylinder, Steering .......................... 1
11 717-3513A Shaft, Drive 4WD ........................... 1
12 719-3158 Bracket, Axle Mtg. ......................... 2
1
2
3
4
5
6
7
8
9
10
11
12
3
5
5
5
7
8
8
8
12
