-30-

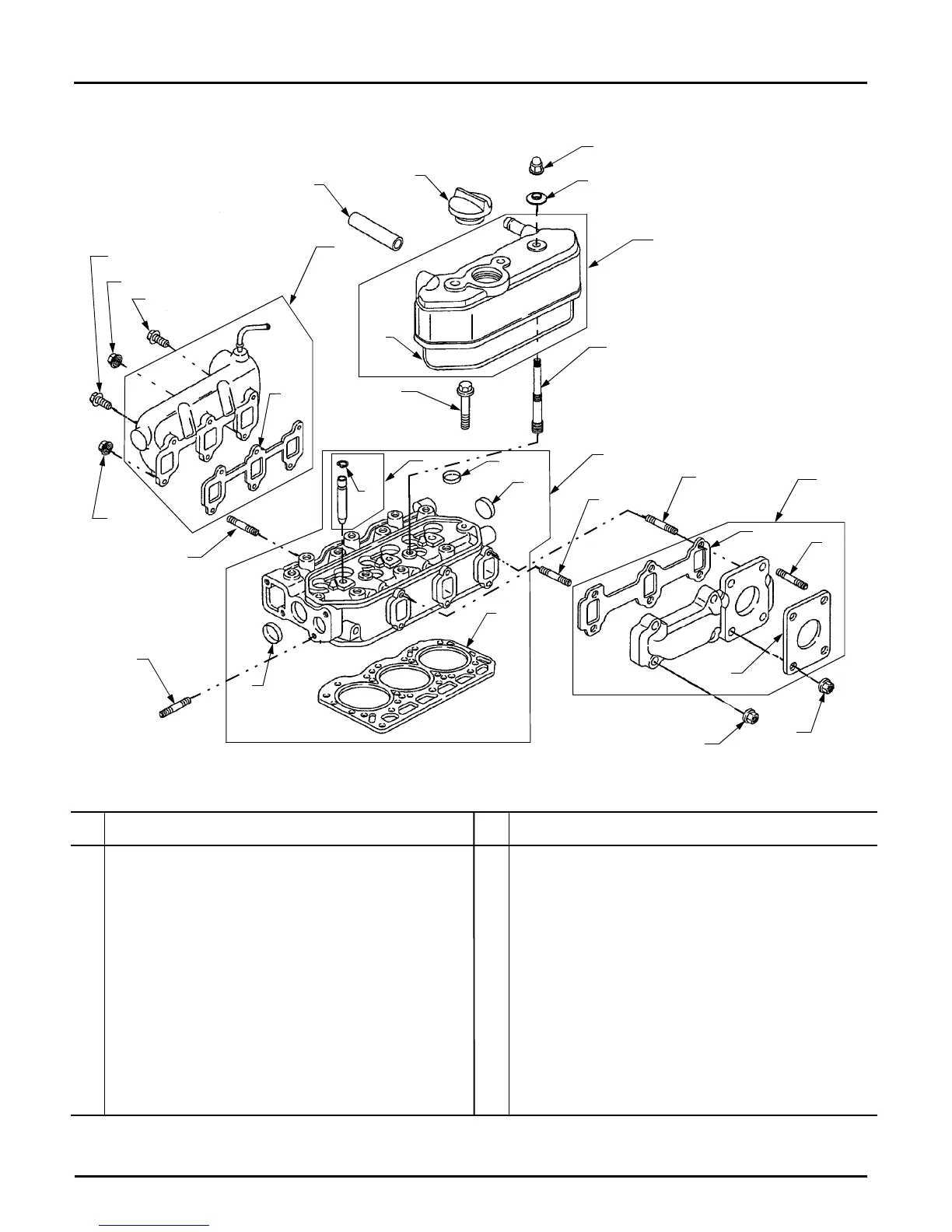

CYLINDER HEAD AND MANIFOLDS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
11
19
20
21
22
23
24
25
26
27
28
29
24
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 BS-825347 Head, Cylinder ................................. 1
2 BS-820660 Gasket, Cylinder Head .................... 1
3 BS-821003 Tube, Breather ................................. 1
4 BS-820623 Screw, Metric ................................... 14
5 BS-825024 Cap, Oil Fill ...................................... 1
6 BS-820015 Stud, Metric ..................................... 2
7 BS-820078 Stud, Metric ..................................... 2
8 BS-820014 Stud, Metric ..................................... 5
9 BS-820466 Stud, Metric ..................................... 1
10 BS-820004 Plug, Welch ..................................... 2
11 BS-820005 Plug, Welch ..................................... 2
12 BS-820071 Nut, Hex Metric ................................ 3
13 BS-820064 Washer, Sealing .............................. 3
14 BS-820130 Ring, Retainer .................................. 6
15 BS-820076 Stud, Rocker Arm ............................ 3
16 BS-825030 Bushing, Guide ................................ 6
17 BS-820150 Gasket, Rocker Cover ..................... 1
18 BS-825088 Cover, Rocker .................................. 1
19 BS-820031 Screw, Hex, 6mm ............................ 1
20 BS-820408 Screw, Hex, 6mm ............................ 3
21 BS-825175 Manifold, Intake ............................... 1
22 BS-820407 Gasket, Intake Manifold ................... 1
23 BS-820584 Stud, Exhaust Manifold .................... 4
24 BS-820069 Nut, Hex Metric ................................ 2
25 BS-820010 Nut, Hex Metric ................................ 6
26 BS-820178 Nut, Hex Metric ................................ 4
27 BS-825055 Manifold, Exhaust ............................ 1
28 BS-820817 Gasket, Exhaust Manifold ................ 1
29 BS-820670 Gasket, Muffler ................................ 1
