Cub Cadet SERIES 7000 7264 - Three Point Hitch

-47-
REF.
NO.
PART
NUMBER CODE DESCRIPTION QTY.
1 603-0750 Link, Lower Hitch ...................... 2
2 603-0756 Link, Lift - Fixed ......................... 1
3 603-0757 Link, Lift - Adjustable ................. 1
4 603-0765 Link, Upper Center .................... 1
5 603-0933 Chain Assembly, Check ............ 2
6 711-0174 Pin, Clevis, .624 Dia. ................. 2
7 711-1105 Pin, Klik, 1.75 Lg. ...................... 2
8 711-1432 Pin, Upper Lift Arm .................... 2
9 711-1622 ‘U’ Clevis, Check Chain ............ 2
10 711-1648 Pin, Clevis, .75 x 2.75 ............... 2
11 712-0301 Nut, Hex, 3/4-10 GR5 ............... 2
12 712-3058 Nut, Hex Insert Lock, 1/2-20 ..... 2
13 714-0117 Pin, Internal Cotter, .148 x 3.0 .. 2
14 714-0147 Pin, Internal Cotter, .125 x 1.75 2
15 714-0149B Pin, Internal Cotter .................... 4
16 736-0156 Washer, Flat, .635 x 1.12 x .09 2
17 736-0262 Washer, Flat, .385 x .87 x .09 2
18 736-0364 Washer, Lock, 3/4 ..................... 2
19 703-3553 Bar, Draw .................................. 1
20 747-04014 Pin, Double Clevis ..................... 2
REF.
NO.
PART
NUMBER CODE DESCRIPTION QTY.

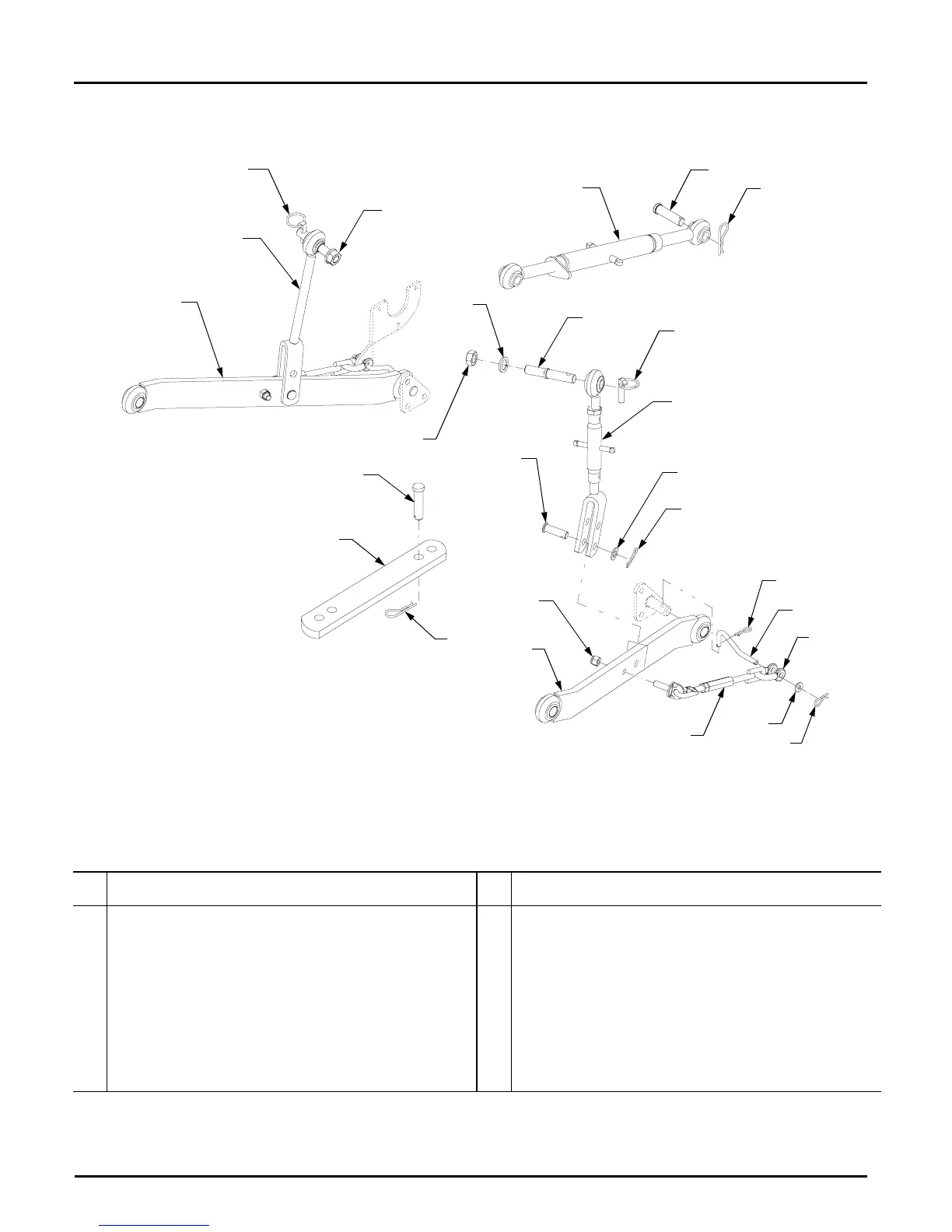

THREE POINT HITCH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
20
1
11
15
7
13
10
19
18
