-38-

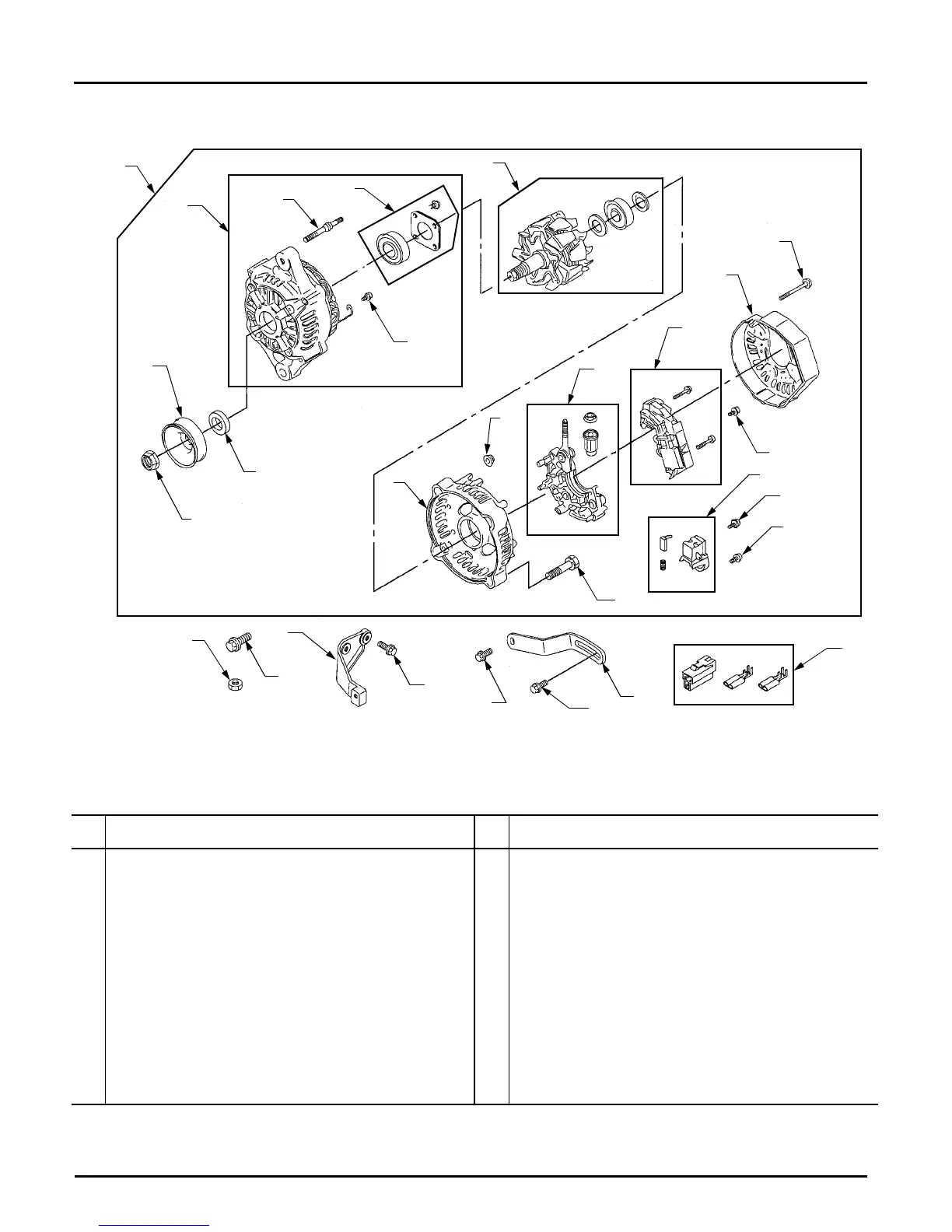

ALTERNATOR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 BS-820692 Housing, Brush End ........................ 1
2 BS-820711 Pulley, Alternator ............................. 1
3 BS-820703 Cover, Brush ................................... 1
4 BS-825084 Alternator ......................................... 1
5 BS-825385 Rectifier ........................................... 1
6 BS-825388 Regulator ......................................... 1
7 BS-820702 Screw, Rectifier ............................... 1
8 BS-825383 Housing, Drive End ......................... 1
9 BS-820819 Strap, Adjusting ............................... 1
10 BS-820275 Screw, Support Bracket ................... 1
11 BS-820713 Spacer, Support Bracket ................. 1
12 BS-825390 Rotor ................................................ 1
13 BS-820213 Bracket, Support .............................. 1
14 BS-820690 Stud, Alternator ............................... 1
15 BS-825384 Retainer, Bearing ............................. 1
16 BS-825157 Connector, Terminal ........................‘ 1
17 BS-825387 Retainer, Brush ................................ 1
18 BS-820343 Screw, Alternator ............................. 1
19 BS-820270 Screw, Alternator ............................. 1
20 BS-820023 Screw, Adjusting Strap .................... 1
21 BS-820069 Nut, Alternator ................................. 1
22 BS-820715 Screw, Brush Cover ......................... 1
23 BS-820701 Screw, Brush Retainer ..................... 1
24 BS-820702 Screw, Brush Retainer ..................... 1
25 BS-820702 Screw, Ground Terminal .................. 1
26 BS-820705 Nut, Alternator Pulley ....................... 1
27 BS-820707 Screw, Brush End Housing .............. 1
28 BS-820709 Nut, Brush End Housing .................. 1
