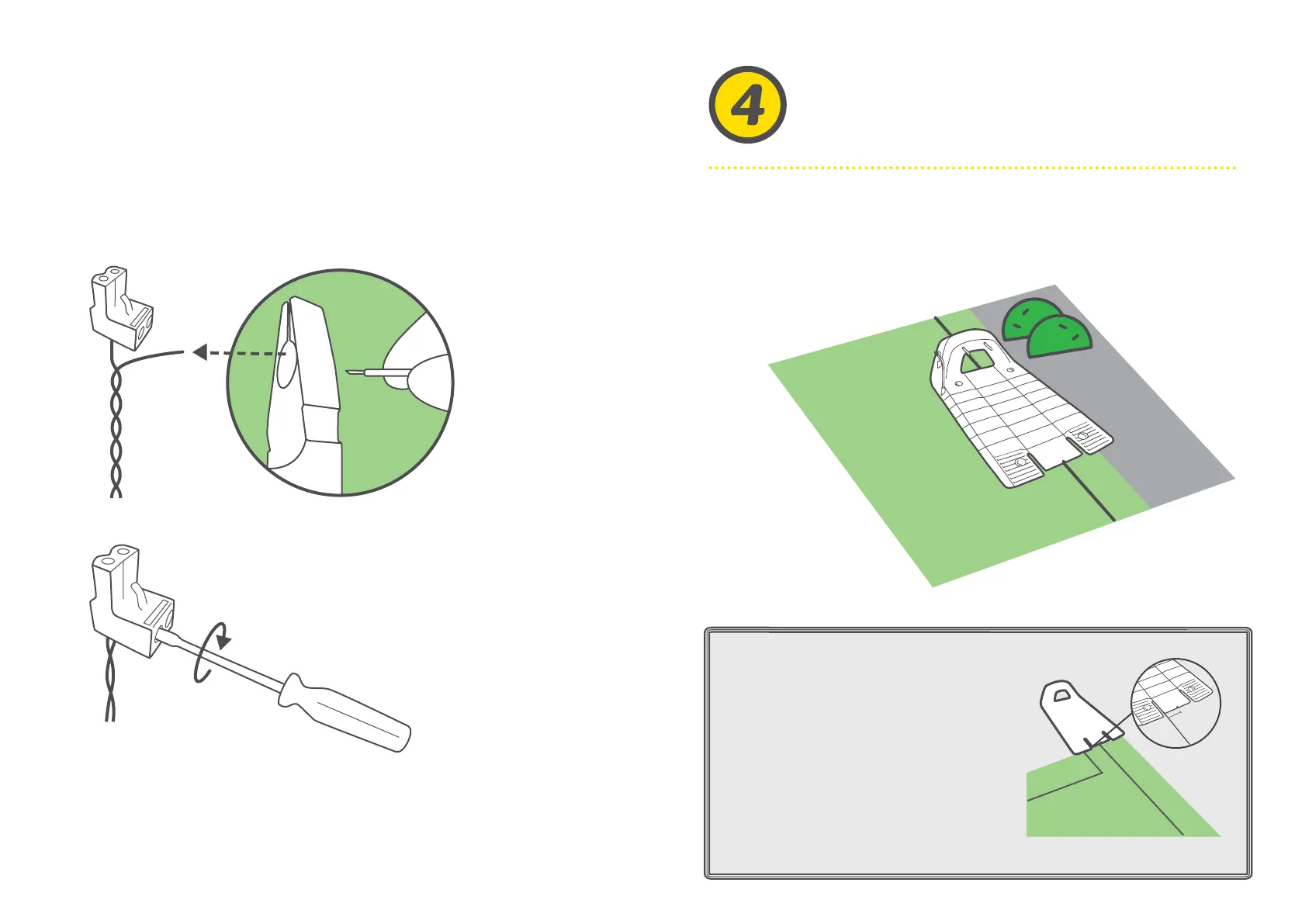

Strip back 5 mm (0.2 in) of insulation from the wire ends, insert
the twisted wire into the connector and secure it using a small at
screwdriver.
4-5cm
In case of External
Installation, the Base
Station should be placed in
a small shift to the right,
in order to allow smooth
entry of the mower to the
Base Station.
Power
Up
Place the Base Station in its planned location and
align its center on the perimeter wire.
Install and connect the Base Station
