5. Feed the label, printing side facing up, through the label guide and pass over the
platen.
6. Lead the label through the backing paper opening, beneath the roller.
7. Adjust the paper guide by moving left or right to fit the paper width.

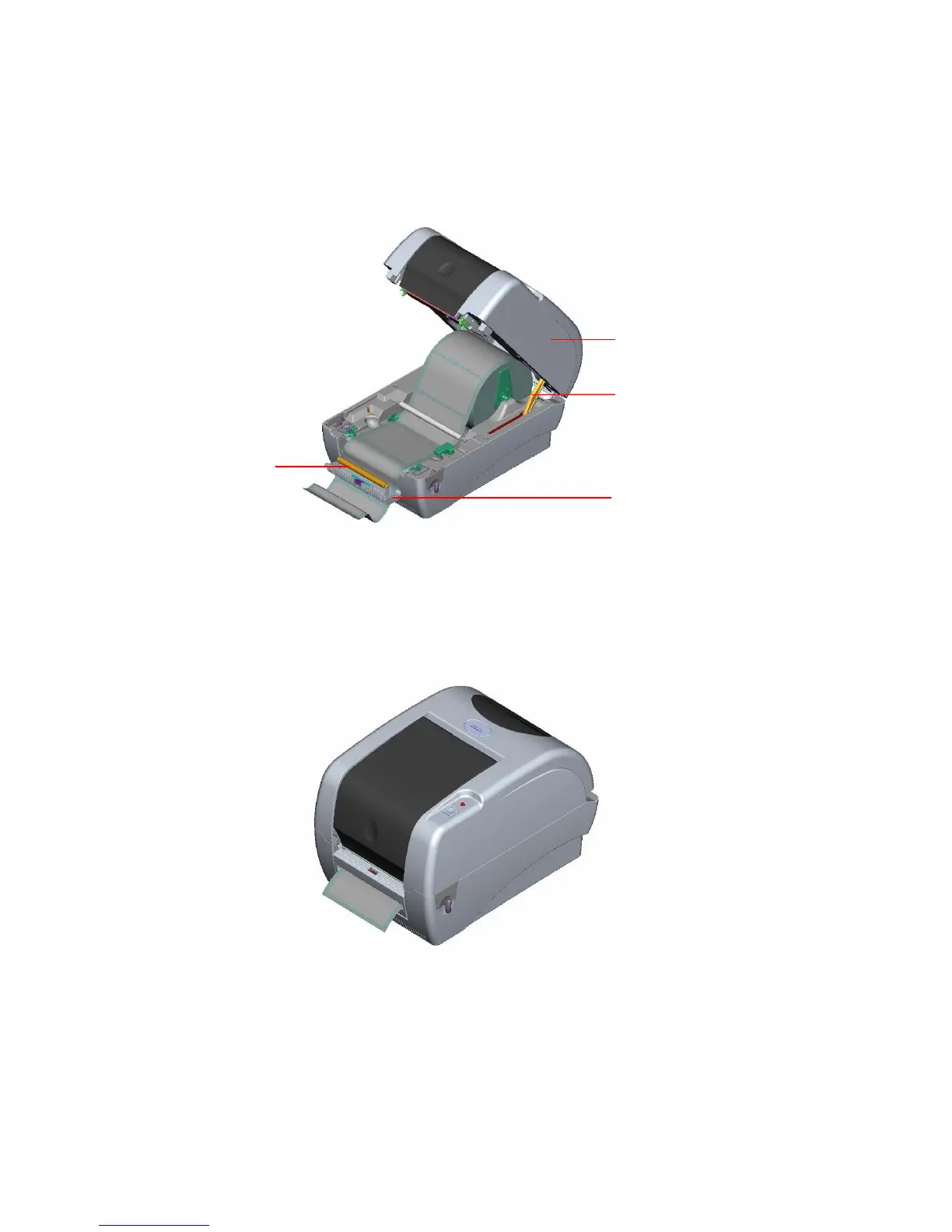

Fig. 20 Lead the paper through the backing paper opening, beneath the roller
8. Push the peel-off panel back to the printer.
9. Close the top cover by lifting up the top cover support and close the top cover slowly.
Note: Pull the label outward tightly after closing the top cover.
Fig. 21 Complete label installation for peel-off mode
Roller
Top Cover
Top Cover Support
Peel-off panel
