are not required.).

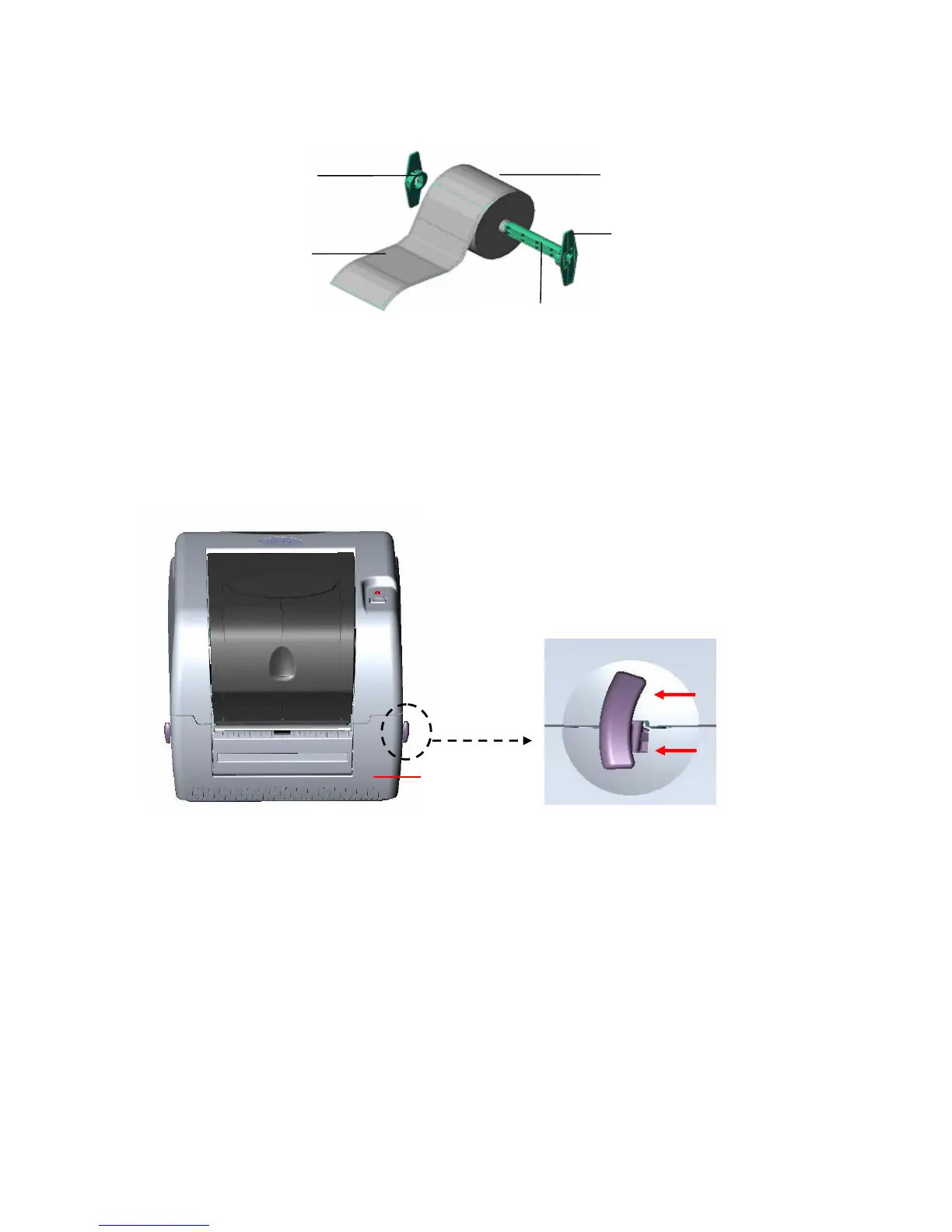

Fig. 6 Label roll installation (I)
2. Open the printer’s top cover by releasing the green top cover open levers located on
each side of the printer. lift open the top cover. The top cover support at the rear of the
printer will hold the printer top cover open.
Fig. 7 Pull the lever to open the cover
3. Place a label roll onto the center of the paper roll mount.
4. Feed the label, printing side face up, under the Teflon bar and paper guides and
pass over the platen.
5. Adjust the green center-biased paper guides to slightly touch the edges of the label
backing.
6. To close the printer top cover, lift the cover to the maximum open angle then use both
hands to close the cover gently. Close the printer top cover slowly and make sure the
cover latches securely.
