CUE touchCUE-5 - Page 9

Wired Touch Panels - User Manual
9© CUE, a.s. | All Rights Reserved.

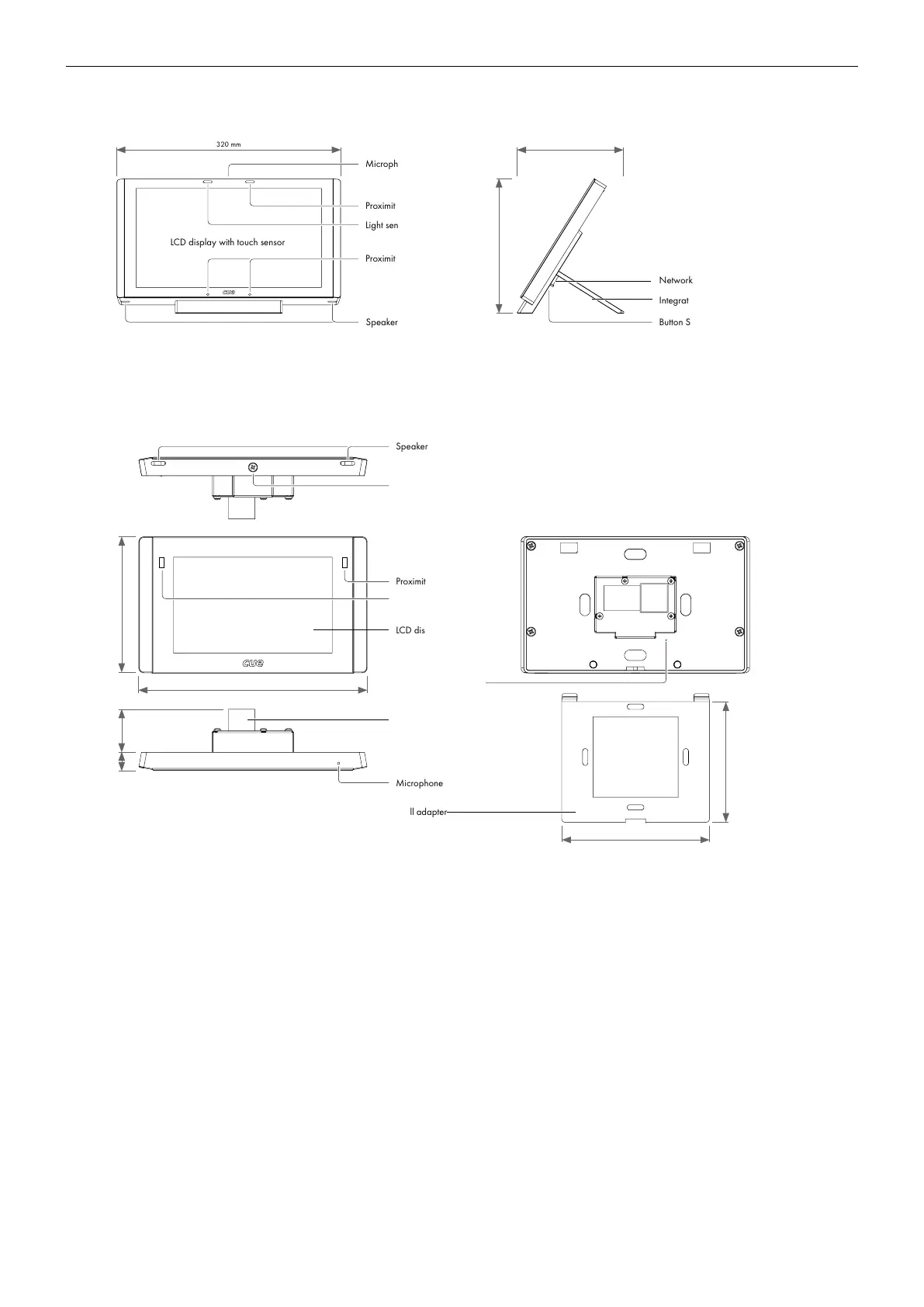

touchCUE-12
Speakers
Light sensor
320 mm 153 mm
192 mm
Network connector
Microphone
Button System Default
Integrated tabletop stand
Proximity sensor receiver
LCD display with touch sensor
Proximity sensor transmitter
Built-In Models
touchCUE-5-B
LCD display with touch sensor
Microphone
Network connector
Front View Rear View
Top View
Button System Default
Speakers
Bottom View Fixing screw
136 mm
81 mm11 26 mm
88 mm
Wall adapter
72 mm
Proximity sensor receiver
Proximity sensor transmitter
Light sensor
