Installation 29
Cat. No. 01016370
Cable Routing
All input and output connections to the circuit board are 24 volt or less. Non-shielded type cable is provided for installation.
It is imperative that the correct type of cable is used to reduce the possibility of radiated electrical noise from entering the
wiring. This precaution will insure reliable operation of the controller.
Although the cables do not have to be run in conduit, it is necessary that long runs of cable be supported or protected by
strapping them to the equipment piping. If conduit will be used to route the shielded cables, three factors must be consid-
ered:
• DO NOT share the same conduit or raceway with 120 volt or higher circuits.
• Keep cables at least 6 inches away from 120 volt or higher electrical circuits.
• GROUND the conduit (if metallic) to a known “earth ground” location.

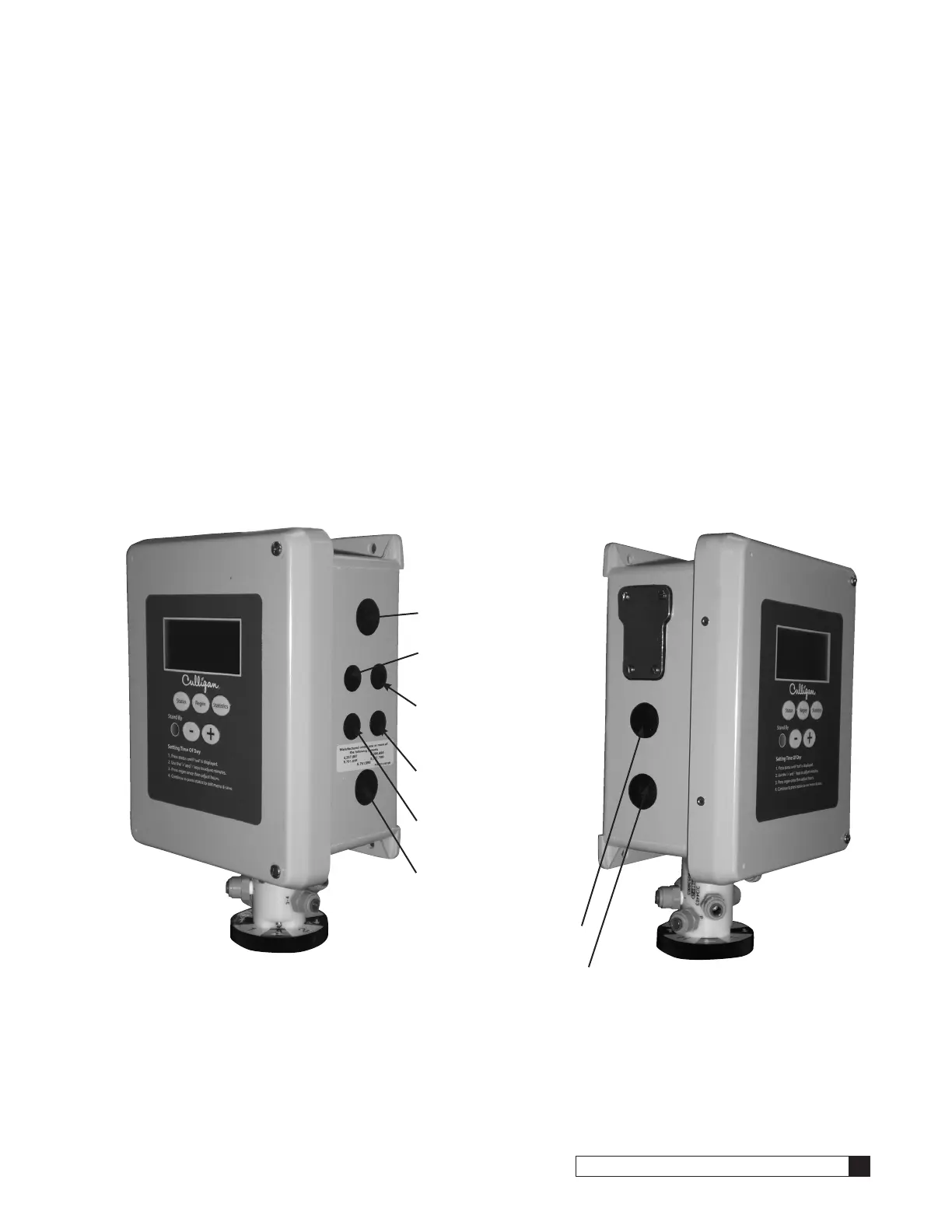

A series of holes are located on the sides of the controller (see Figure 42). Strain relief fittings are provided with the con-
troller enclosure for interconnecting wiring. Install the plastic fittings as needed. Remove the compression nut and rubber
sleeve from each fitting. Prior to connection of the shielded cable wires to the circuit board, slide the compression nut and
sleeve over the cable for the wiring connections. When wiring is completed, apply a small amount of silicone to the rubber
sleeve and reassemble. This will assure all wiring is secure and assist in making the tightening of the fitting easier. Insert
the plugs provided to block any holes not used for wiring or other accessories.
Right Side View
Brine Reclaim Solenoid
(optional)
Input Connection
for Flow Sensor
Output Connection
for Remote Accessories
Input Connection
for Remote Accessories
24 Volt Power
Input Connection
Brine Reclaim Solenoid
(optional)
Brine Refill Valve
Blocking Solenoid for
Alternating Operation
Left Side View
Figure 42.
