Schematic 31
Cat. No. 01016370
24V TRANSFORMER
The MVP control is powered by a 24V/50VA transformer. If there are multiple controls in the system being installed, each
control will require its own transformer. It is recommended that the transformer be plugged into a dedicated 120V circuit.
CAUTION! Connecting 24V to the 2.5V connection on the circuit board will damage the circuit board
1. Connect one of the wires from the 24V cable to one of the outermost 24V transformer screw terminals
(Reference Figure 45). The other end of the wire should be connected to one of the 24 VAC terminals on the
MVP control circuit board (Figure 44).
2. Repeat the process for the other 24V power supply cable attaching the second wire to the opposite terminal.

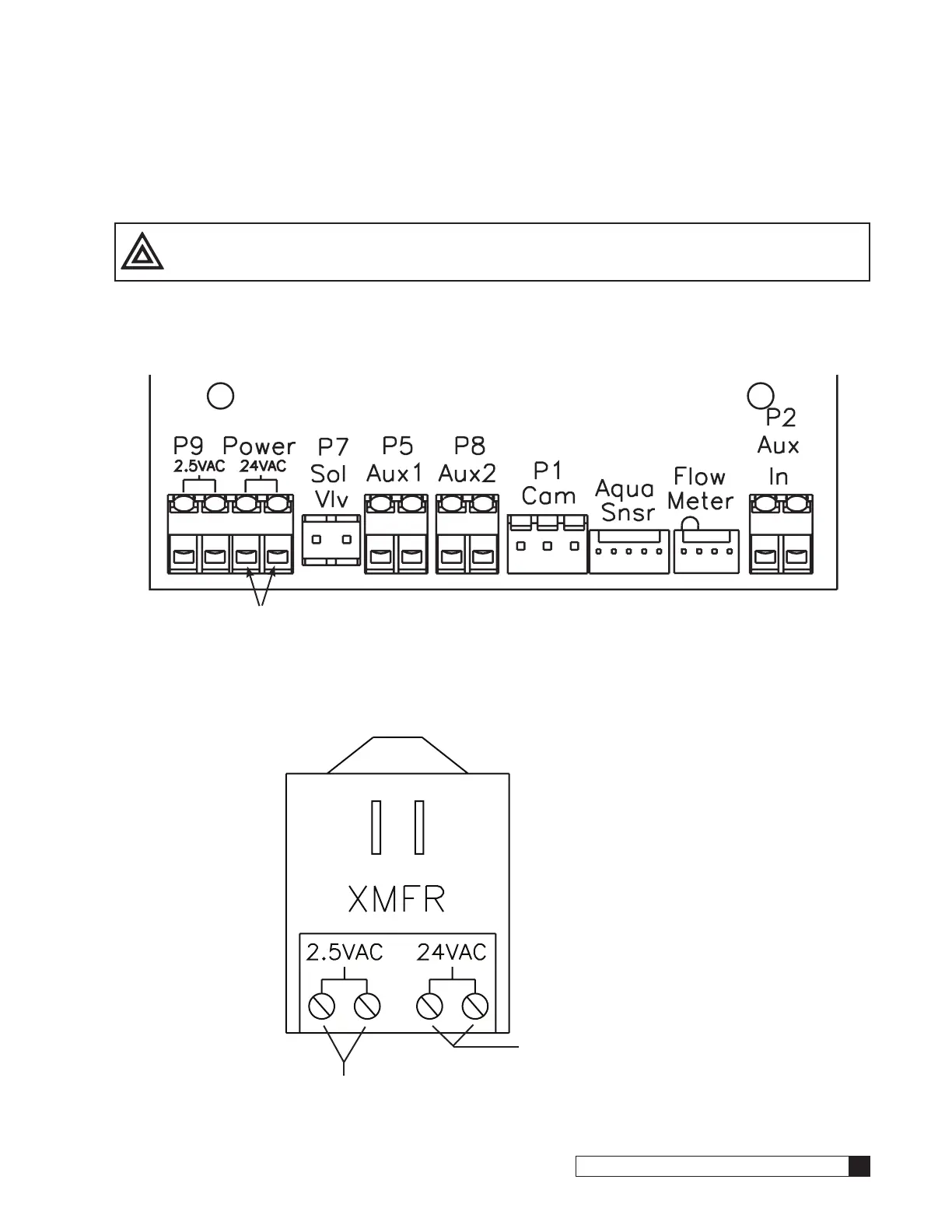

24V transformer connection
Figure 44.
POWER SUPPLY
ONE transformer is required for each Control
Power to circuit board 2.5VAC only required for
Aqua-Sensor installations
Power to circuit board 24V
Figure 45.
To Next Page
