Schematic 37
Cat. No. 01016370
Auxiliary Output #1 & #2 (Optional)

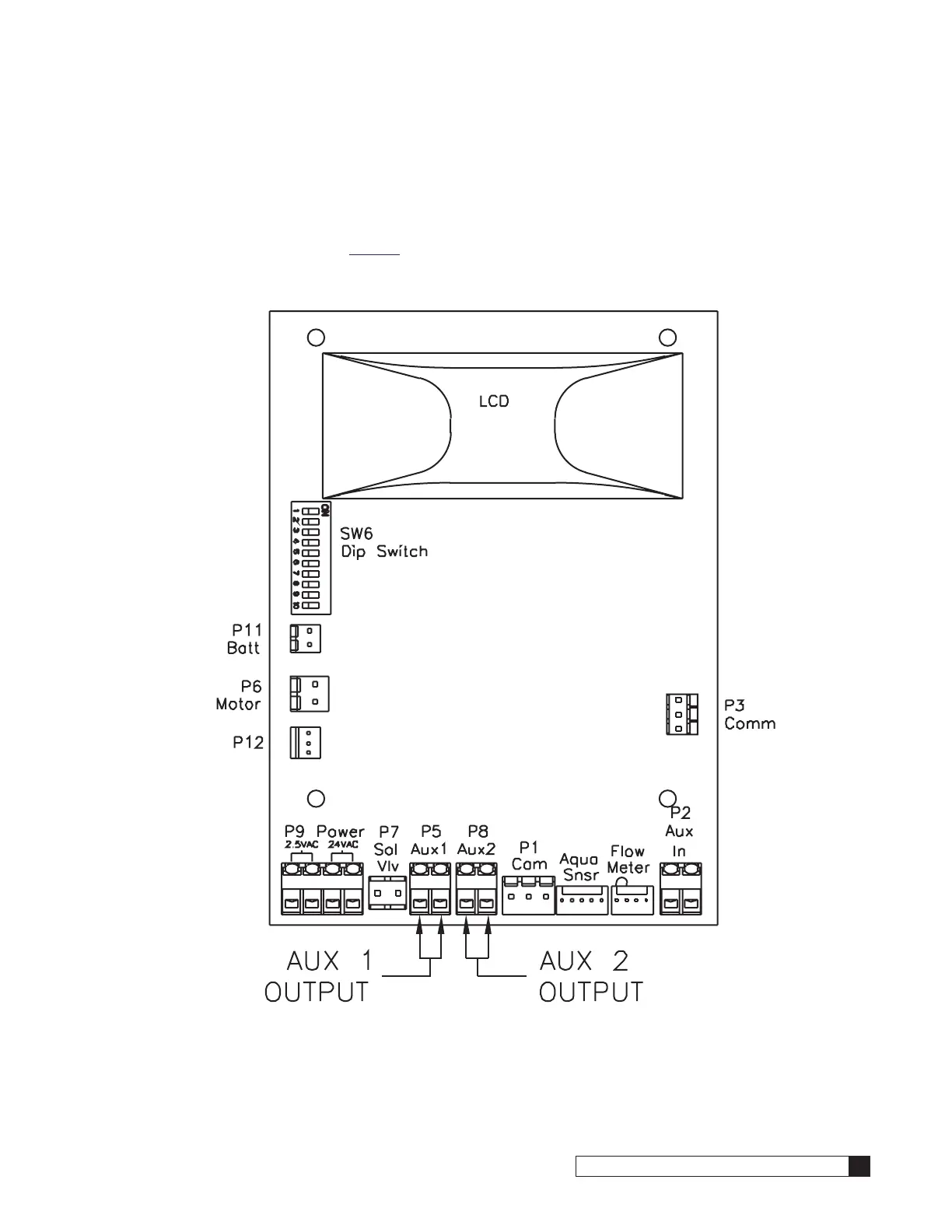

The Auxiliary Output #1 & #2 (P5 Aux 1 & P8 Aux 2 - reference Figure 56) are output triacs that can be programmed to
provide power to a “normally open” (normally no power to auxiliary output until power required) or a “normally closed”
contact (user choice). These 24 vac outputs can be used for energizing a relay coil only.
Refer to the section on Programming (page 48) for additional information on the uses of this feature.
Figure 56.
