Culligan CSM Series User Manual

38 Culligan® CSM Series Softeners
38 Cat. No. 01016370

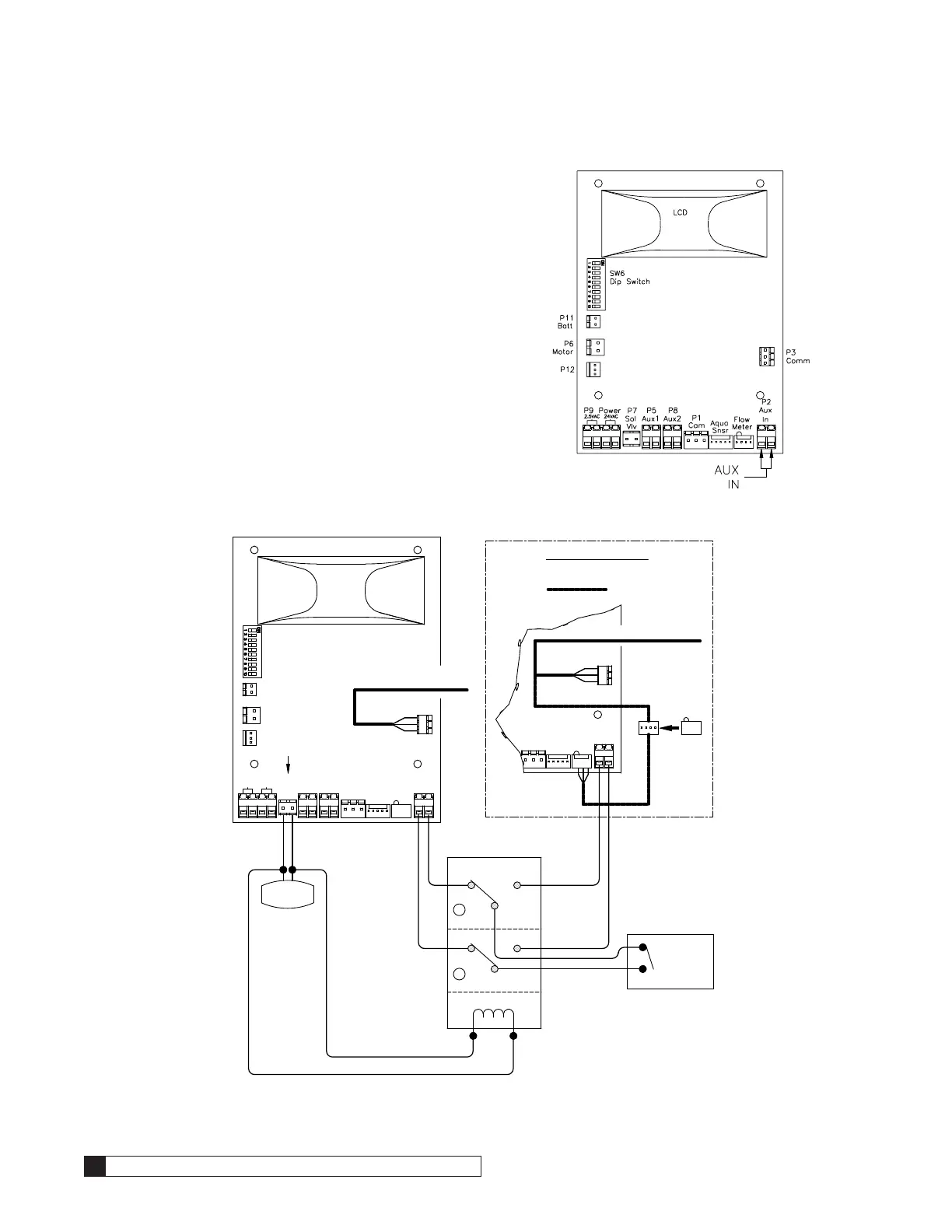

Auxiliary Input (Optional)
One auxiliary input (P2 Aux In) input is provided for optional signal devic-
es such as remote push buttons, differential pressure switches, hardness
monitors, turbid meters, etc. for the purpose of receiving a regeneration
signal.
Select an UN-POWERED contact within the remote device that will close
when regeneration is desired. The duration of the switch closure can be
as low as 0 seconds; 6 seconds is the recommended minimum and de-
fault but can be as long as 999 seconds. The contact must automatically
open following the start of a regeneration sequence. Connect this contact
to the P2 Aux In terminal shown in Figure 57.
Aux
2.5VAC
P9 Power
Aux2
Vlv
P7
Sol
24VAC
P8
Aux1
P5
Aqua
Snsr
Cam
Meter
P1
Flow
P6
P12
Motor
P11
Batt
LCD
Dip Switch
SW6
In
P2
Comm
P3
Comm
Flow
Meter
Cam
P1
In
Aux
P2
Snsr
Aqua
P3
NC NO
1
POLE
NC NO
2
POLE
SOLENOID
LOCKOUT
OUTPUT
C
C
To Comm on other board
(Multi-tank only)
To Comm on other board
DUPLEX ALTERNATING
Duplex Alternating Setup
MVP 1 MVP 2
SOL
Regen Signal
EXTERNAL
SOURCE
24V DPDT
RELAY
DUPLEX ALTERNATING WITH EXTERNAL SOURCE
ON LINE STAND-BY
Figure 58.
Figure 57.
