18 Culligan® Culligan Top Mount (CTM) Water Filters
18 Cat. No. 01029343
Tubing Pilot Valve
For Pilot Valves operating on water, install tubing and strainer as detailed by the image. Water Operating Pressure must
be 35 - 125 PSI
For Pilot Valves operating on air, install plugs and connect as detailed by the arrows. Air Supply must be at least 10 PSI
GREATER than the Highest Water Pressure
Refer to page 24 for multi-tank tubing instructions.

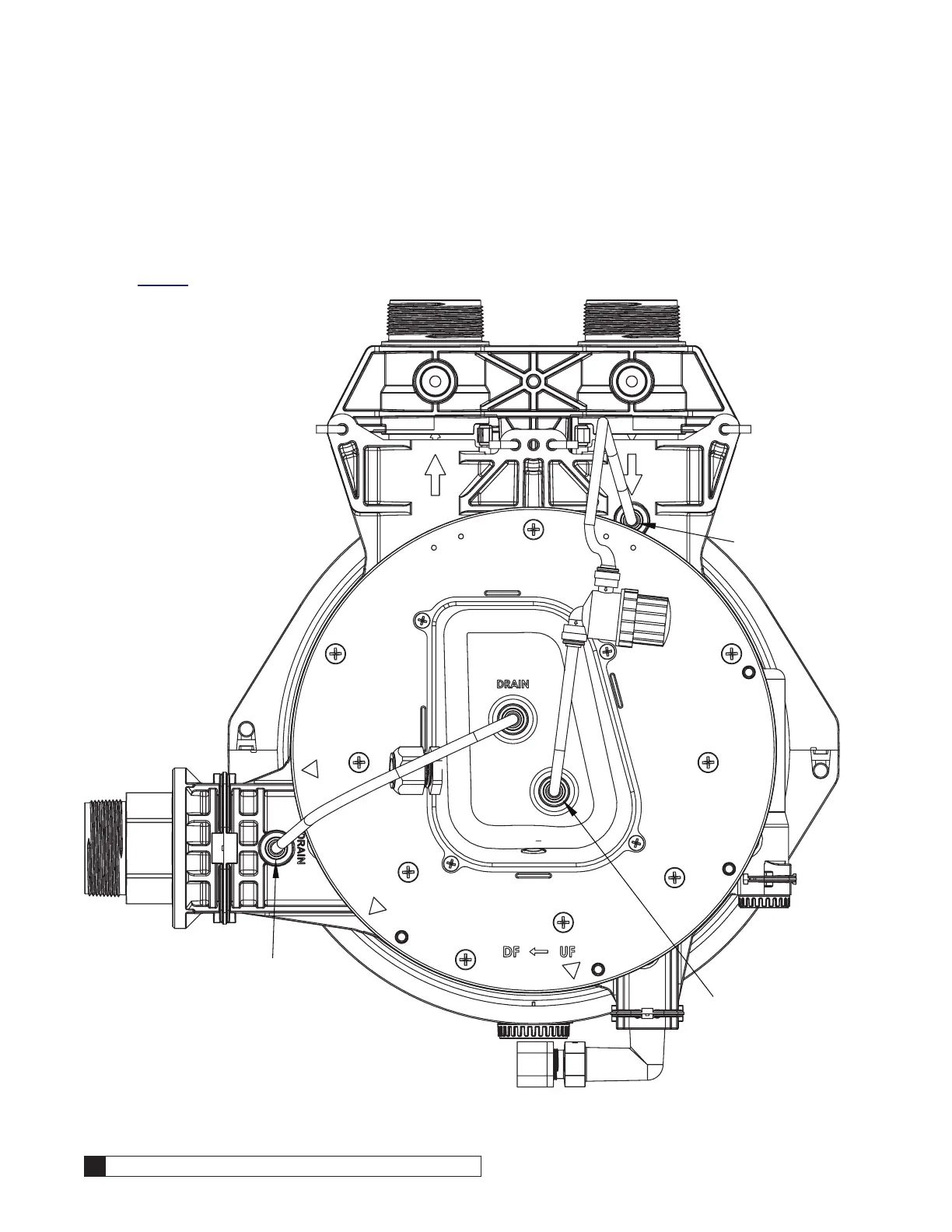

Figure 15. Inlet/Outlet Tubing
Connect to Air Supply
Insert with 1/4” plug for air operation
Insert with 1/4”
plug for air
operation
To Next Page
