22 Culligan® Culligan Top Mount (CTM) Water Filters
22 Cat. No. 01029343
Wiring the Smart Controller Power Cord and 24V Transformer
CAUTION! DO NOT PLUG THE TRANSFORMER INTO THE WALL UNTIL ALL WIRING IS
COMPLETED.
The Smart Controller is powered by a 24 VAC and 2.1 Amps (50 VA) transformer (P/N 01014897, 60 Hz). If there are
multiple controls in the system being installed, each controller will require its own transformer. It is recommended that
each transformer be plugged into a dedicated 120V circuit.
CAUTION! Connecting 24 V to the 2.5 V connection on the circuit board will damage the circuit
board.
NOTE The 2.5 V cord is only necessary when using an Aqua-Sensor.
CAUTION! To eliminate the possibility of polarity issues, carefully follow the wiring details shown
in Figure 22.

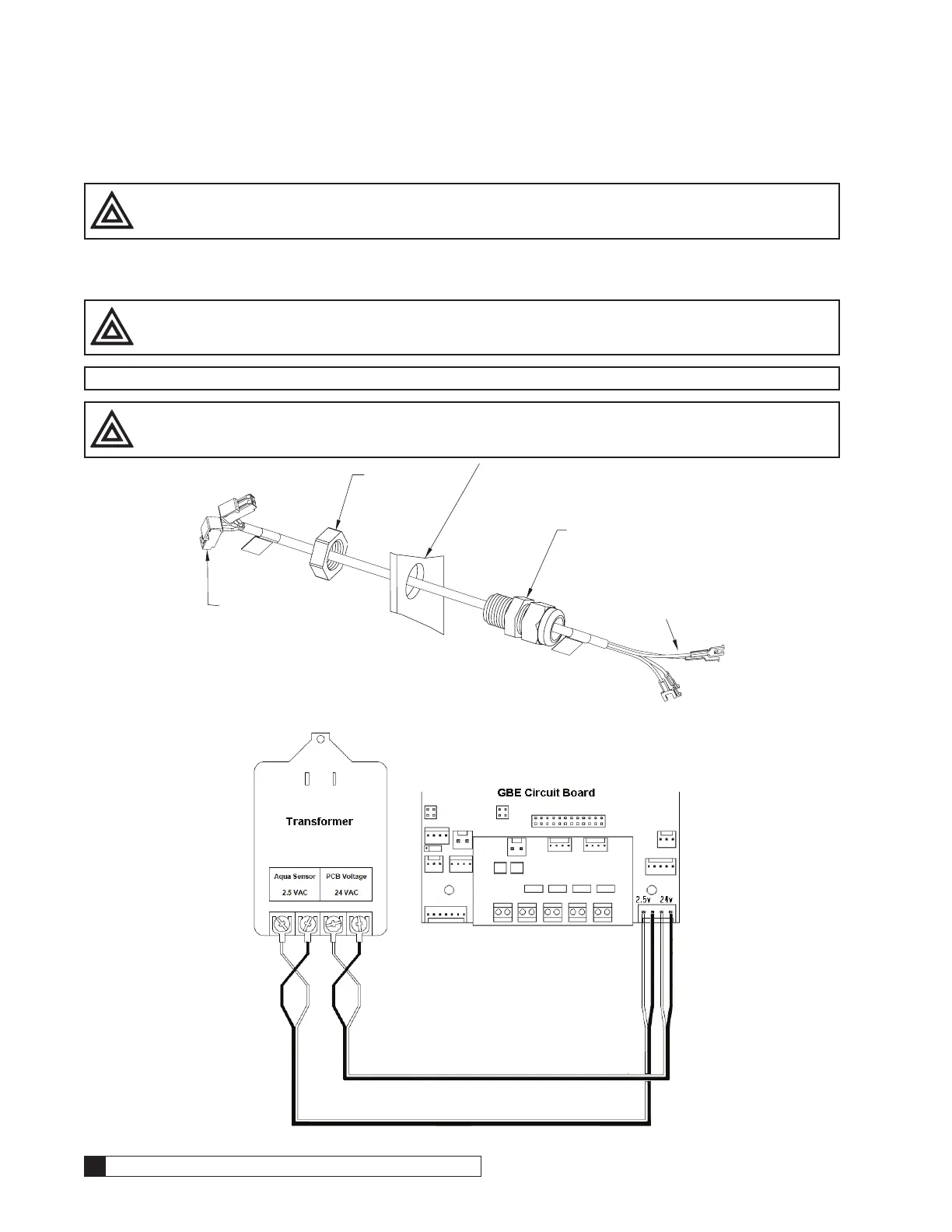

Figure 21. 24 V Power Connection
Figure 22. Transformer and Smart Controller circuit board.
Power cord connect
to tranformer
Cord Grip Body
Cord Grip
Locknut
Enclosure Wall
Connectors for
circuit board.
