Wiring for Multi-Tank Systems
Motorized Ball Valves, Valve Mounted Controller

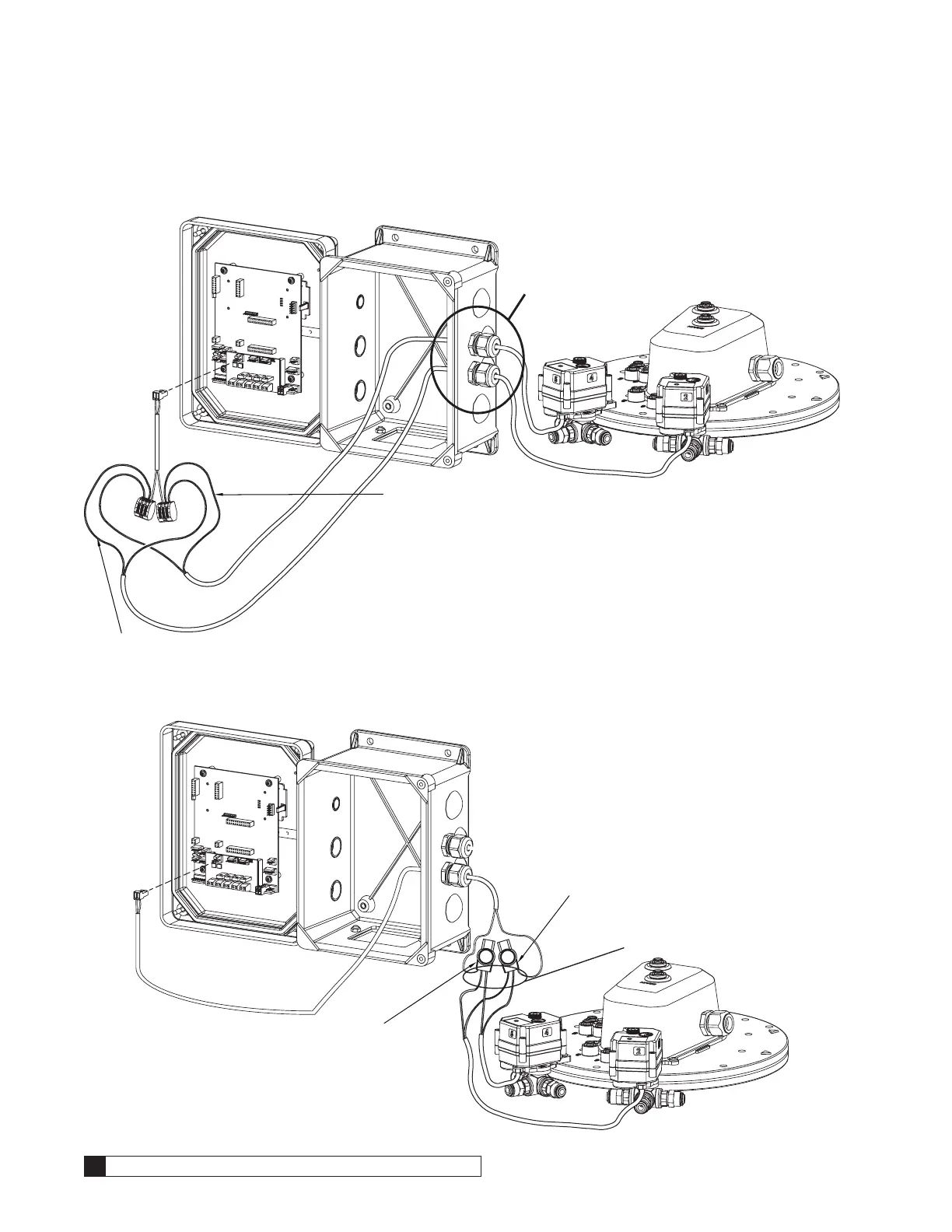

Figure 27. Ball Valve Wire Harness, Valve Mounted Controller
Motorized Ball Valves, Wall Mounted Controller (Optional, P/N 01030177)
Figure 28.
Black wires from both ball valves
go to the black wire from the harness.
Each ball valve cable should go
through its own cord grip
Red wires from both ball valves go
to the red wire from the harness.
Red wires from both ball valves go
to the red wire from the harness.
Clip off the stripped part of the wire
BEFORE inserting into the connector.
Black wires from both ball valves go to the
black wire from the harness.
To Next Page
