30 Culligan® Culligan Top Mount (CTM) Water Filters
30 Cat. No. 01029343
Ported Plumbing Adapter
The ported plumbing adapter is installed onto the valve the same way as the standard plumbing adapter, see page 9
for instructions.

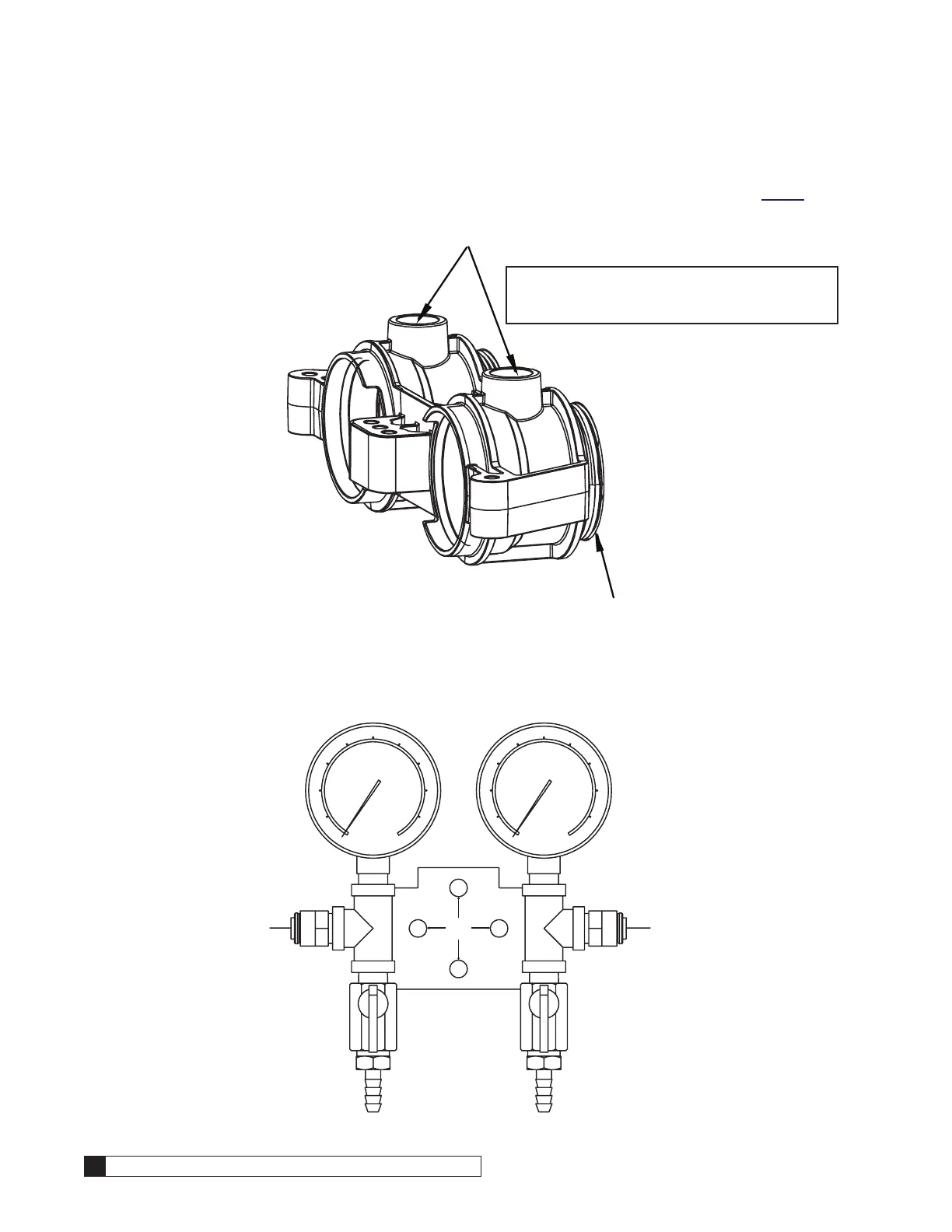

Figure 35.
Gauge and Sample Valve Kit (P/N 01029507)
This kit requires the use of a ported plumbing adapter (see above), 1/4” tubing (P/N 00303177 (1’ blue) or 00402184 (1’
black) and two 1/4” PI x 1/4” NPTE adapters (not provided).
]
Figure 36.
NOTE Ports can be positioned upwards for
gauges or downwards for sample
valves.
1/4” NPT Internal Threads
1.5” or 2” Threads
1/4” Tubing to inlet or outlet of
ported plumbing adapter.
1.5”
1/4” Tubing to inlet or outlet
of ported plumbing adapter
