Culligan CTM 21 - Page 49

Service and Repair 45
Cat. No. 01029343
Removing the Pistons

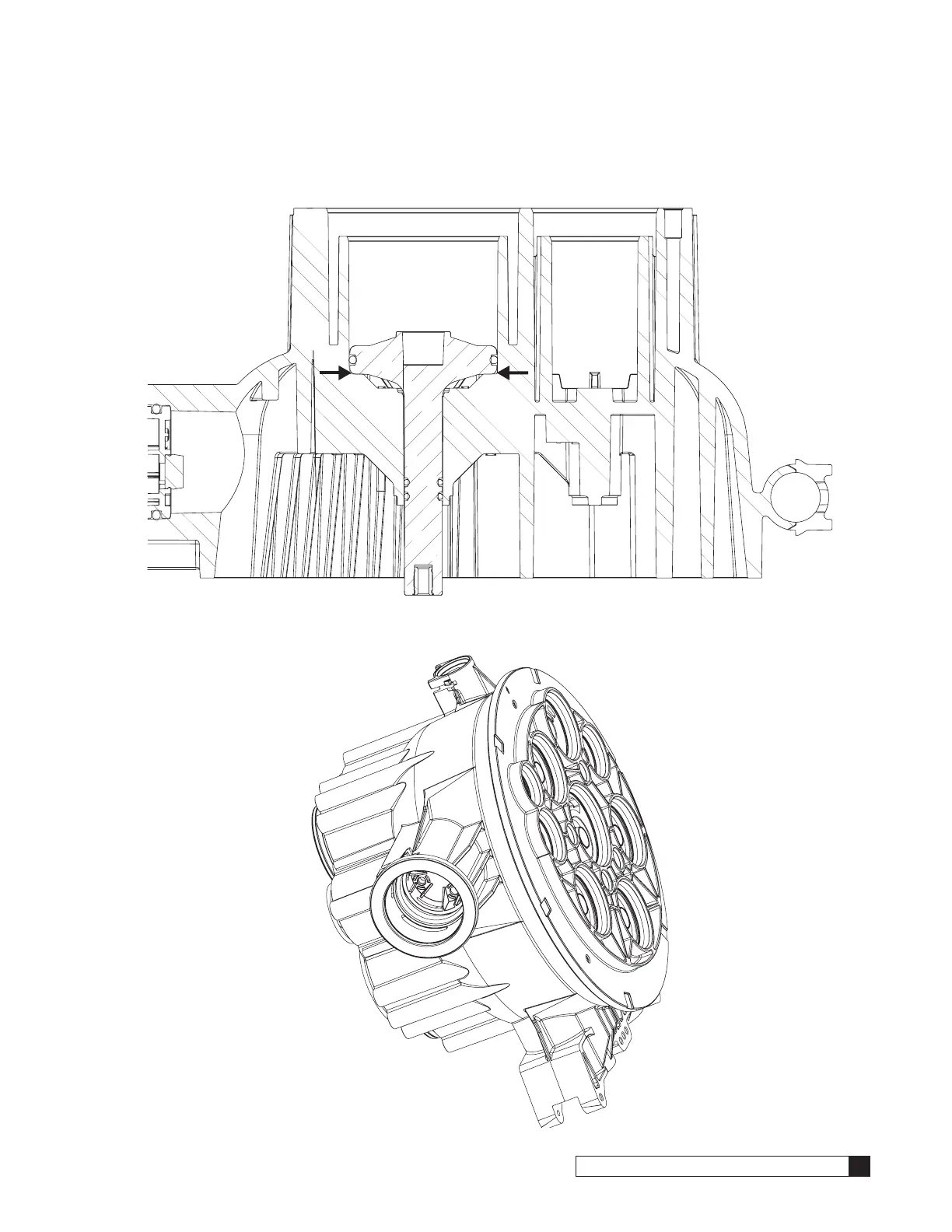

Push all the pistons into the fully seated position.
Figure 58.
Lay the valve body on its side with the drain port facing up to remove the pistons.
Figure 59.
Fully Seated Position
Top
Bottom
Top View
