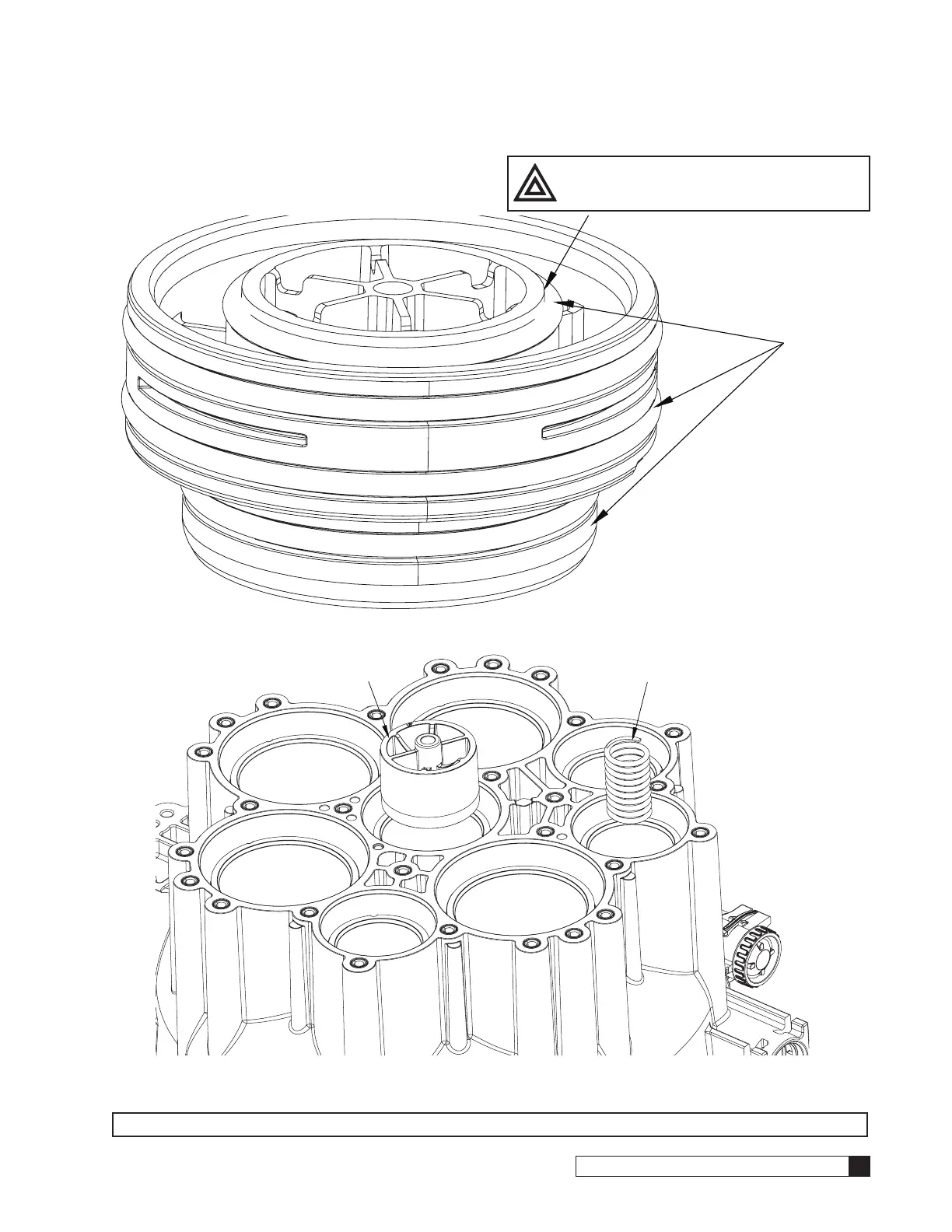

Reassemble Manifold
Esure all couplers are inserted in the top manifold
Figure 66.
Figure 67.
Secure top manifold assembly to valve body with 16 #3 screws
NOTE Screws will need to compress the top manifold to valve body with resistance from refill spring.
CAUTION! Make sure, this o-ring is in
place and not on the top
manifold for all couplers (8)
Lubricate all
o-rings on all
couplers (8)
Reinsert refill spring
Reinsert non-hardwater
bypass plug (if applicable)
