Pilot Valve Reassembly

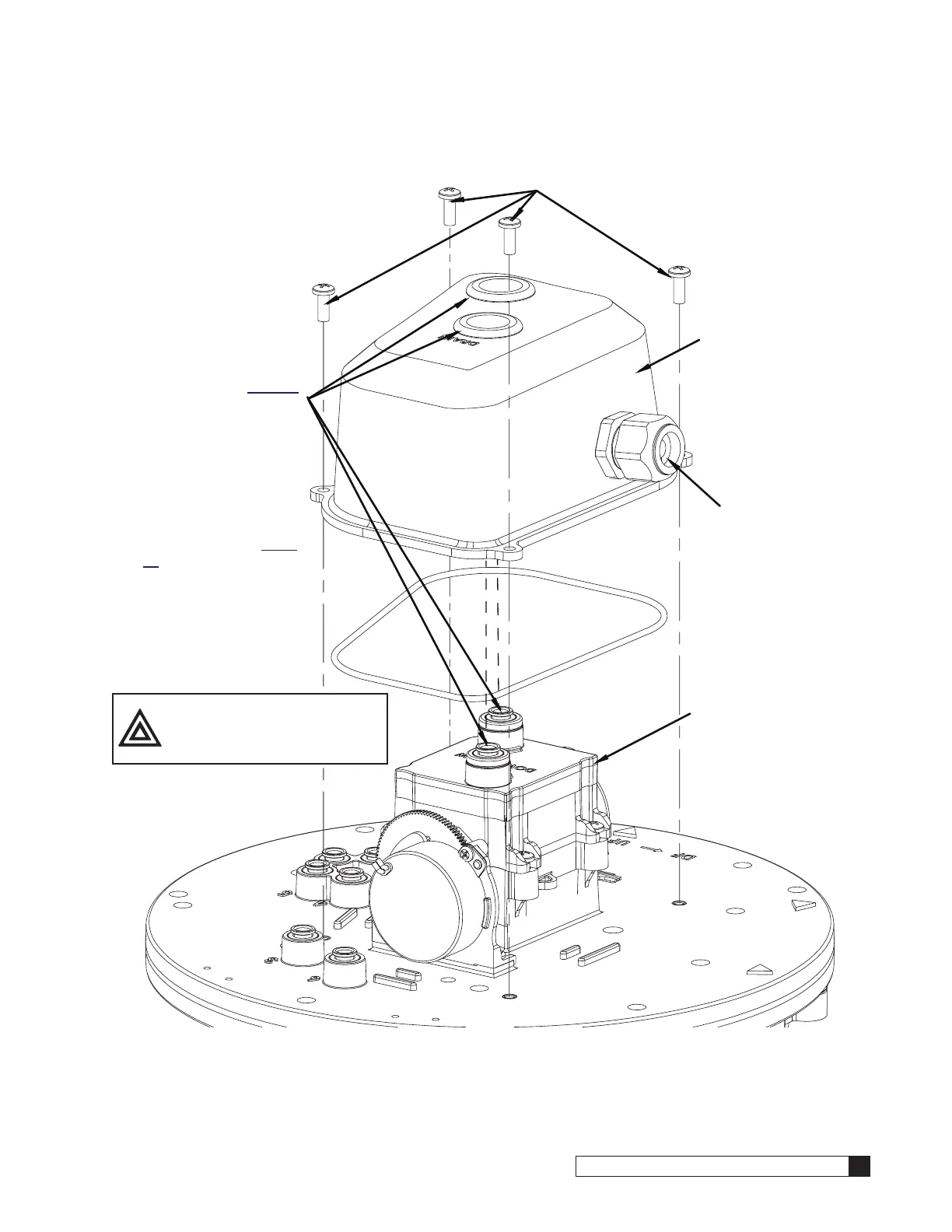

Figure 75.
Enclosure #2 Screws
1. Replace clamp and
tighten the 4 #2 screws
CAUTION! Ensure the
o-ring is in place
when replacing
the enclosure.
2. Reconnect electrical
connections, making
sure to route through
the enclosure
3. Connect tubing (page 18)
through the enclosure.
4. Repressurize unit (page
40)
5. Cycle valve, while checking
the pilot valve for leaks
6. If no leaks, replace
enclosure and tighten
with #2 screws.
