60 Culligan® Culligan Top Mount (CTM) Water Filters
60 Cat. No. 01029343
Flow Diagrams

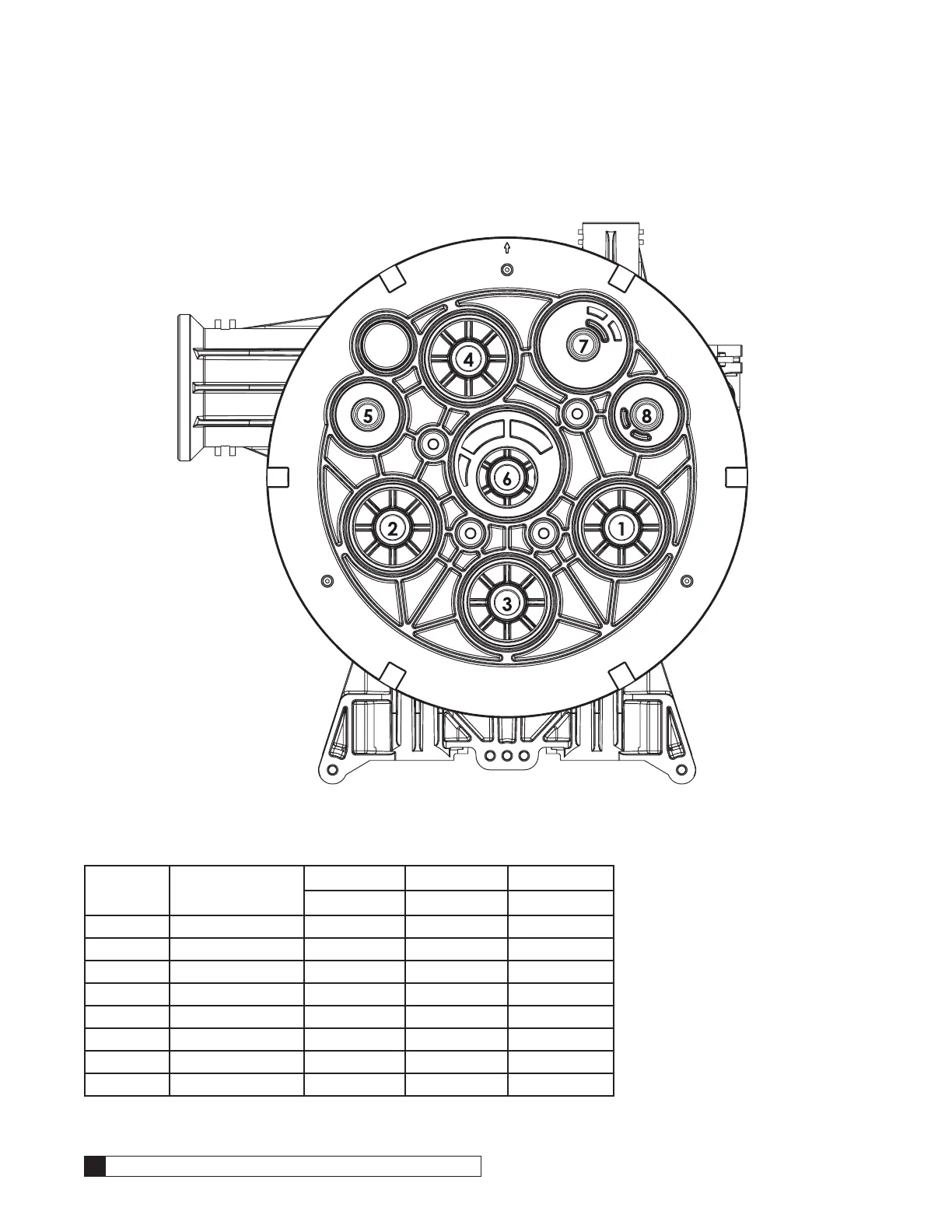

CTM Flow Valve Piston Locations
Figure 77. Piston Locations
Table 9. Piston Cycle Positions
Piston
Number
Piston
Position 1 Position 2 Position 3
Service Backwash Fast Rinse
1 Valve Inlet Up Down Up
2 Valve Outlet Up Down Down
3 Backwash Down Up Down
4 Drain - Backwash Down Up Down
5 Drain - Fast Rinse Down Down Up
6 Hard Water Bypass Down Up Up
7 Refill Down Down Down
8 Brine Draw Down Down Down
View: Bottom of the valve body
