Attaching the Cover
Once the drain and brine line is connected re-attach the cover. Refer to the below instructions and Figure 13 through
Figure 15.
1. Insert the two pins on the top of the cover into the two holes on top of the frame; the cover should be slightly
angled. See Figure 13.
2. Rotate the cover downward inserting the two pins on the side of the cover into the two holes on side of the
frame. See Figure 14.
3. Attach the cover fastener onto the control valve. See Figure 15.

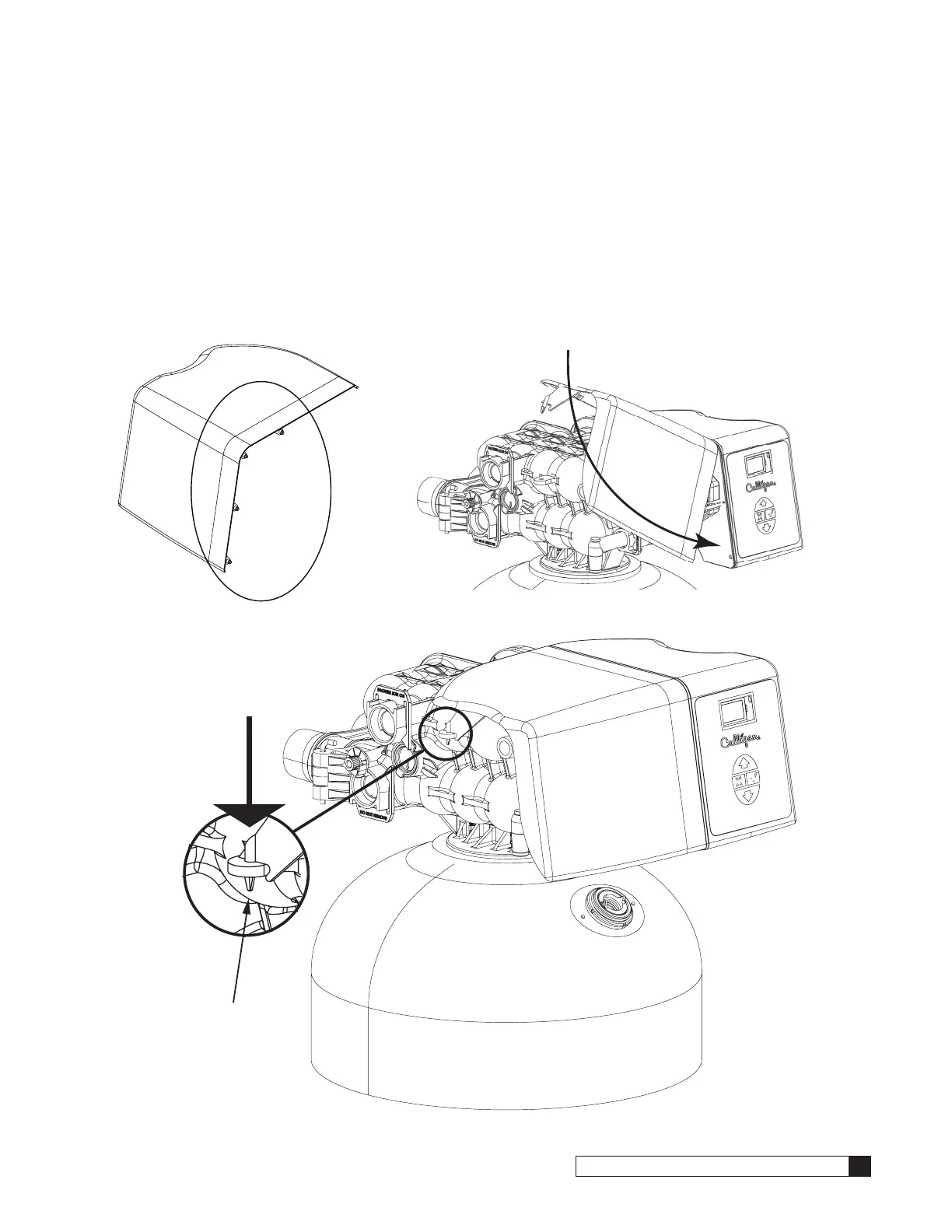

Figure 13. Cover fastener clip. Figure 14. Reattaching the HE softener cover.
Cover
Fastener
Push Down
Into Place
Figure 15. Reattaching the cover fastener.
