12 Culligan® High Efficiency 1.5 Water Softener
12 Cat. No. 01023552
Drain Line Flow Control Replacement
Refer to Table 4, Figure 10 through Figure 12, and the instructions below to replace the drain line flow control.
1. Remove the cover by releasing the cover fastener from the control valve. See Figure 10 and Figure 11.
2. Remove the drain clip and pull off the drain elbow.
3. Remove the drain line flow control located behind the elbow.
4. Install the correct drain line flow control
5. Reverse the procedure to reassemble.
NOTE The number on the flow control should face into the valve body.
NOTE Do not re-install the cover until the drain line tubing is connected.

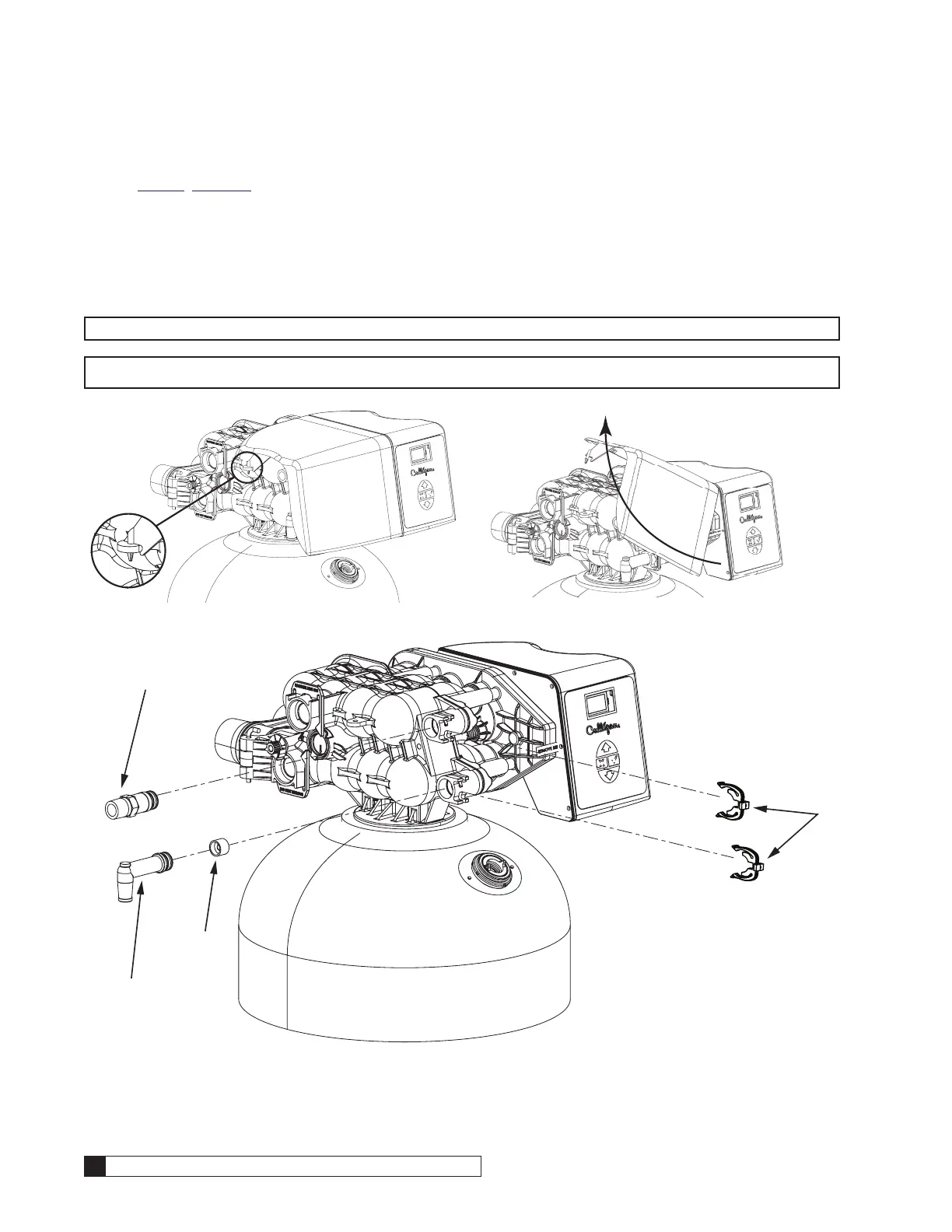

Figure 10. HE 1.5 softener cover fastener clip.
Figure 11. Removing the HE 1.5 softener cover.
Figure 12. Replacing drain line flow control.
Clips
Flow Control
Drain Elbow
Brine Connector
