10 Culligan® High Efficiency 1.5 Water Softener
10 Cat. No. 01023552
BYPASS VALVE
(NORMALLY CLOSED)
SOFT WATER
HARD WATER
SMART CONTROLLER
MANUAL
INLET VALVE
VACUUM
BREAKER
Figure 8. Progressive Flow/Triplex Parallel Tanks
NOTE Figure 8 displays externally blocked progressive flow. Internally blocked progressive flow is plumbed
similarly but without the blocking valves.
NOTE The base unit is set up for the 14" diameter, 60,000 grain system. If you are installing the 60,000 grain
system, then no changes are required to the control. If you are installing any other size system, refer to
Table 5 on page 16 for any additional changes. The items that are shaded are already in the valve.

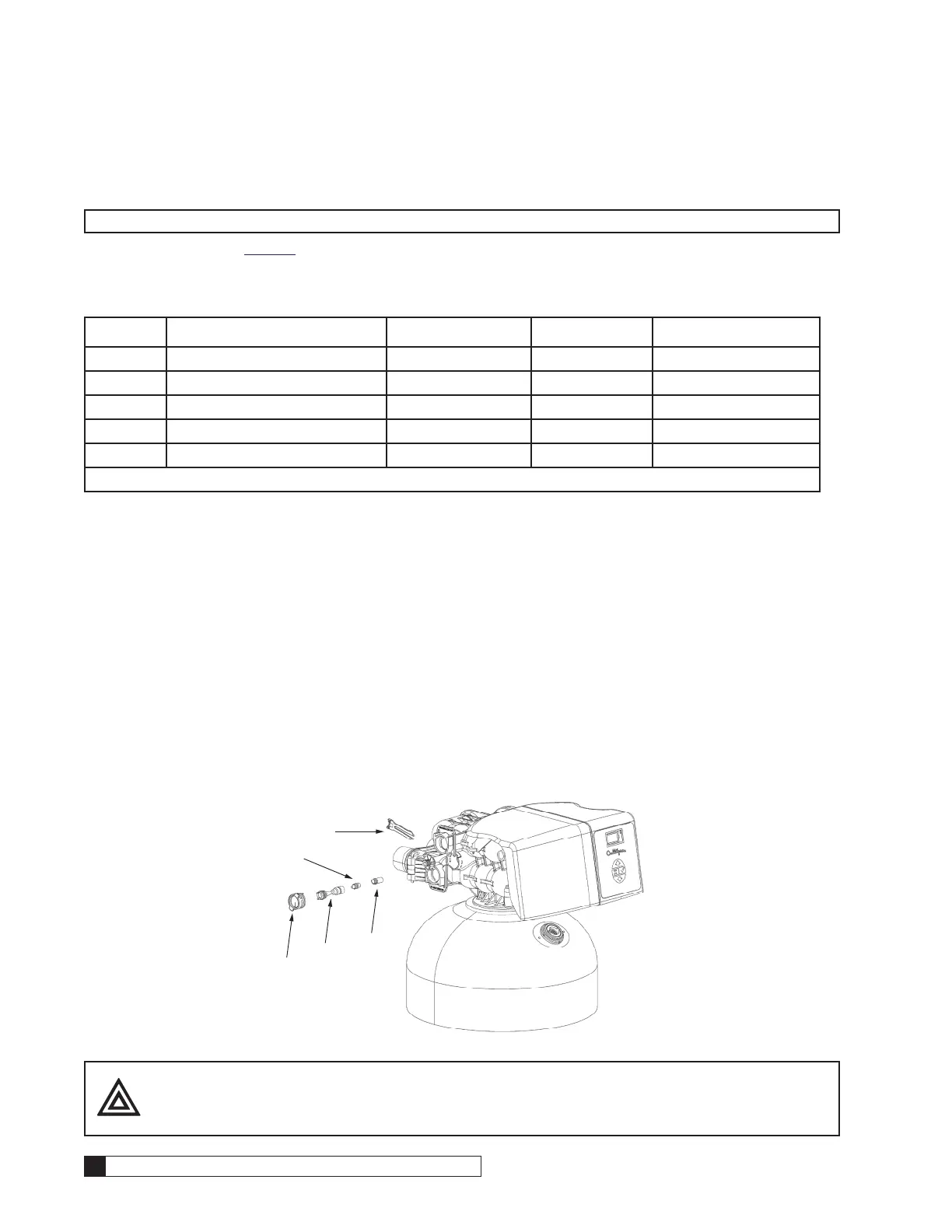

Drain Line Flow Control, Eductor Nozzle—Throat
Use the recommended drain line flow control, eductor nozzle, and eductor throat for various size tanks. See Table 4.
Refer to Figure 9 through Figure 12 and instructions below for changing the drain line flow control, eductor nozzle, and
eductor throat.
Table 4. HE 1.5 injector settings.
Model Drain Line Flow Control
Nozzle/Throat
Brine Refill Flow
Downflow Upflow
HE-060 5.5 gpm* Green*/Blue* Beige*/Beige* 0.8 gpm
HE-090 5.5 gpm* Green*/Blue* Beige*/Beige* 0.8 gpm
HE-120 5.5 gpm* Green*/Blue* Beige*/Beige* 0.8 gpm
HE-150 7 gpm Green*/Blue* Green/Blue 0.8 gpm
HE-210 11.5 gpm Yellow/Blue Yellow/Blue 0.8 gpm
*Shipped assembled inside the control standard from factory
