22 Culligan® High Efficiency 1.5 Water Softener
22 Cat. No. 01023552
Power to circuit
board 24V
Red
Black
Blue
White
Connector Plugs
POSITION SENSOR CONNECTOR
MOTOR CONNECTOR
FLOW METER CONNECTOR
AQUA-SENSOR PROBE
PHONE
24v
2.5v
Power to circuit board
2.5VAC required only for
Aqua-Sensor installations
Power cable should be
plugged to 24V
connectors—right side
Aqua-Sensor power
cable should be
plugged to 2.5VAC
connectors—left side

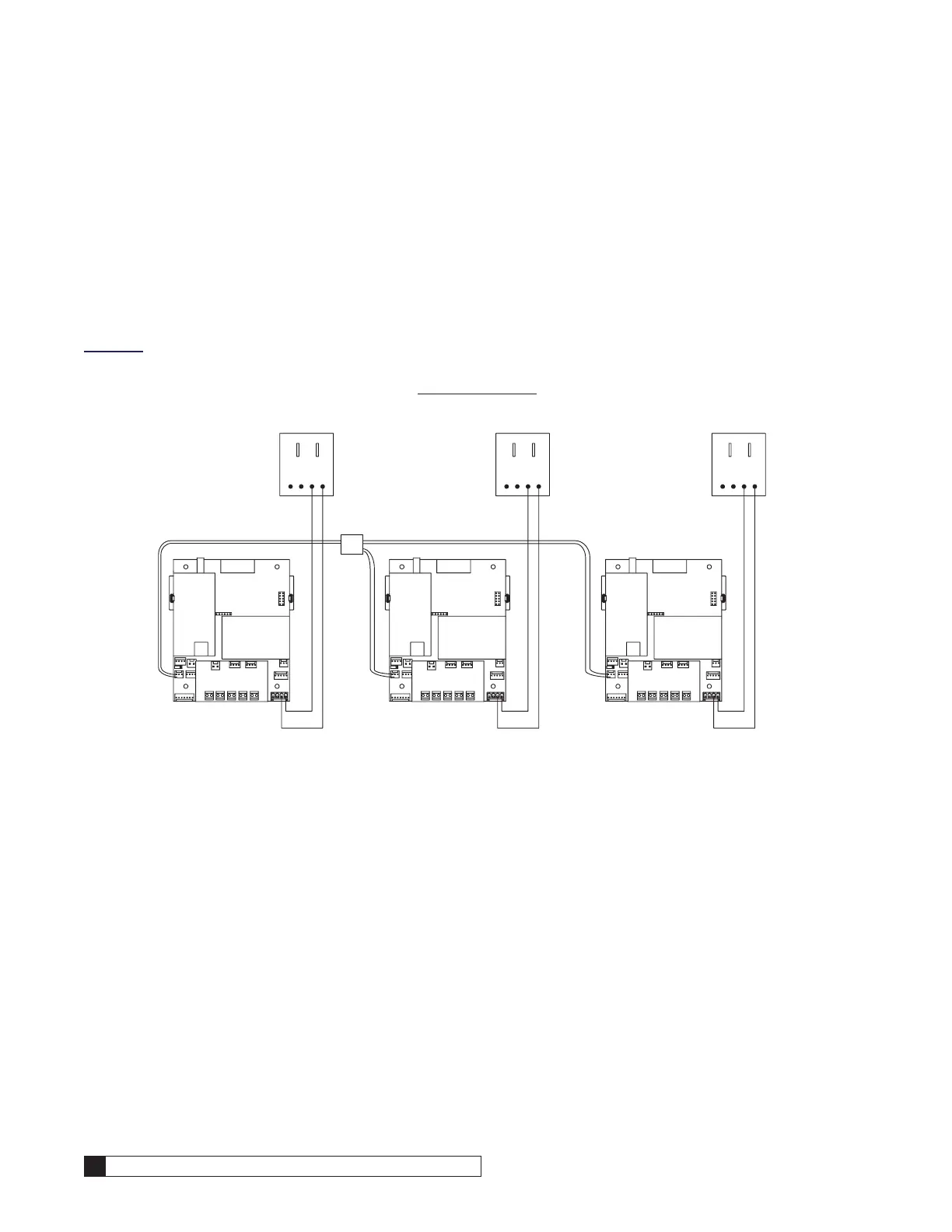

Figure 29. Transformer-circuit board power connection.
