Installation 23
Cat. No. 01023552
Returning the Circuit Board into the Enclosure
1. Angle the circuit board opposite the front enclosure and into the support bracket on the side of the enclosure.
2. Gently push down and rotate forward until you hear a click (the pins on the bottom of the enclosure being insert-
ed into the circuit board).
3. Check to make sure the circuit board is rigidly fastened.
Reattaching Electrical Enclosure Cover to Control Valve
1. If compartment plate was never removed, skip to step 4. Align the compartment plate over the gear motor onto
the control valve frame. Ensure that the gasket around the gear motor on the compartment plate is positioned
correctly to prevent leaks. Screw the compartment plate back onto the control valve frame.
2. Pull the position sensor cable back through the gray rubber bushing.
3. Reconnect the gear motor harness, position sensor harness, and any accessory harnesses to the GBE board.
4. Place the enclosure onto the control valve, aligning the circuit board edge with the slots on the control valve
frame and the screw on the enclosure with the hole on the cover. See Figure 30.
Make sure to align
slots on the frame
with the edge of the
circuit board in the
controller enclosure
Insert electrical
enclosure screw
holder on the
control valve
Figure 30. Attaching enclosure cover to control valve.

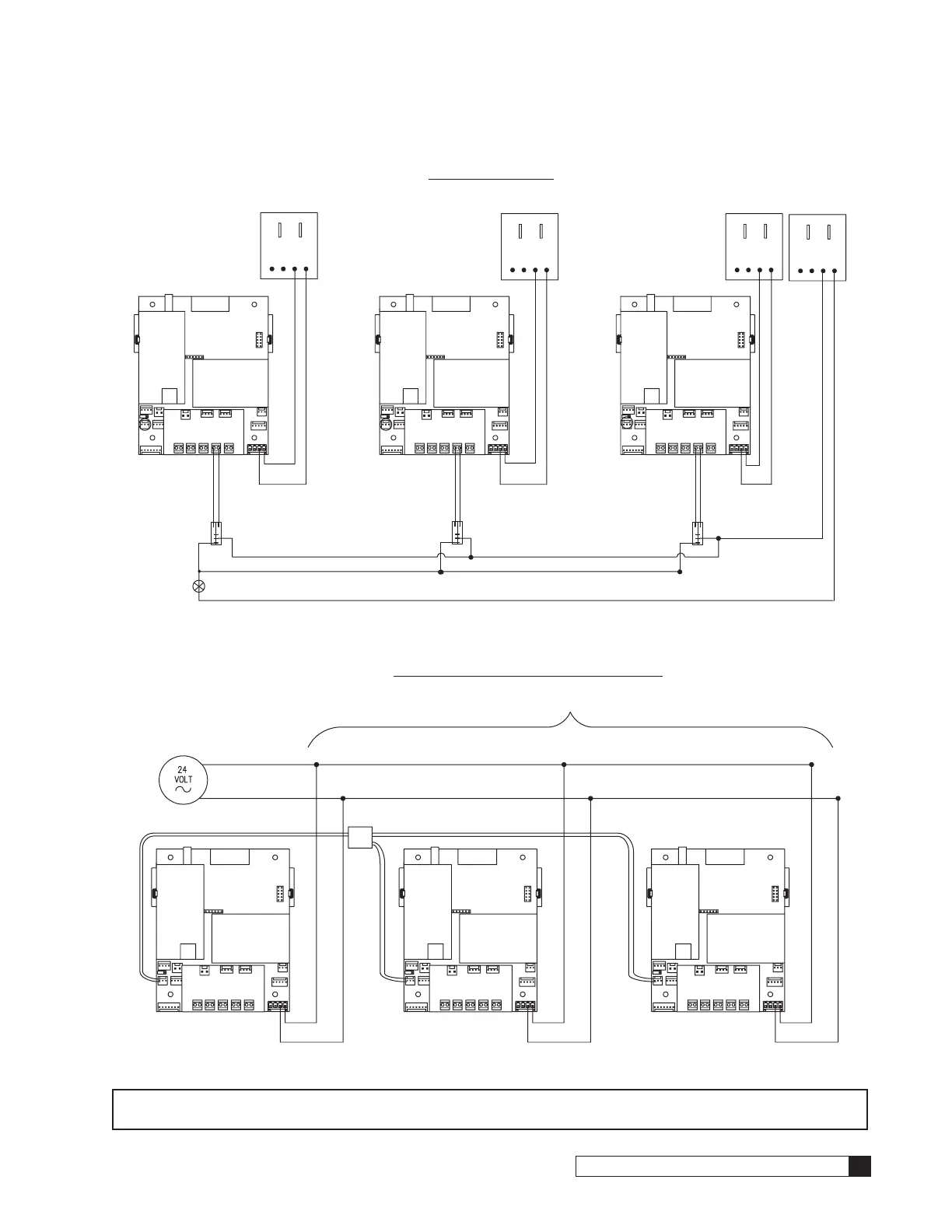

5. Connect the 24V power cord to the two 24V terminals on the transformer.
NOTE Refer to the GBE Programming for Commercial Softeners and Filters, except HF xN Manual (P/N
01027295) for programming information. This manual can be obtained from your local dealer, on C-Port
(www.cport.culligan.com) under the Technical Service Tab or on the Service Tech App.
