PARTS REPLACEMENT GUIDE 17

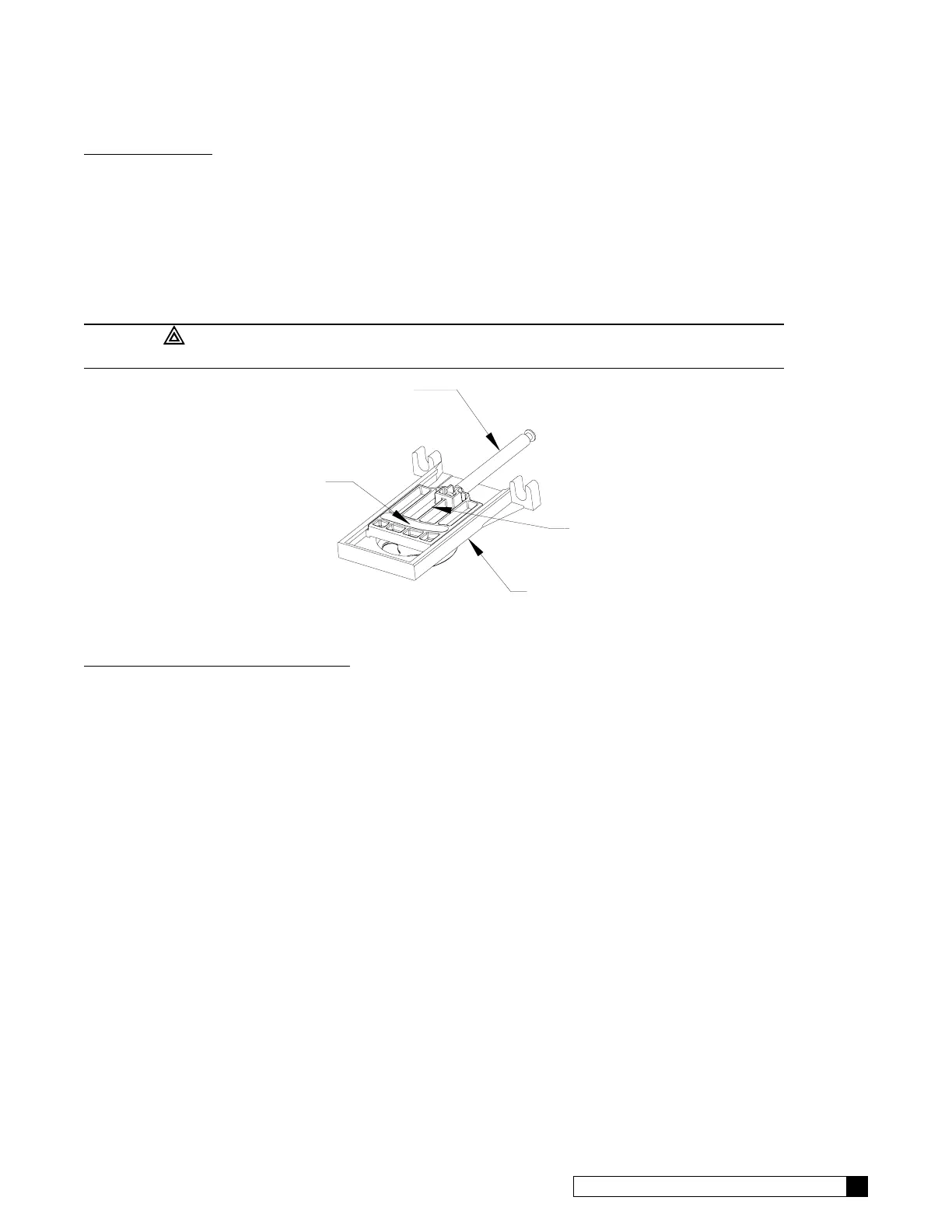

PISTON ROD
YOKE SUPPORT
PLATE
YOKE
SLOT FOR
FOLLOWER
Seal Pack Assembly
Follow the instructions for the replacing drive motor assembly through step 7, then continue as follows:
1. With the drive motor and backplate set aside, firmly pull the seal pack assembly from the valve body.
2. Lightly lubricate the o-rings of the replacement seal pack with silicone grease.
3. Reverse the procedure for reassembly.
NOTICE: Use only silicone grease; petroleum-based lubricants will cause the degradation of the rubber components.
CAUTION: Do not twist the seal pack upon insertion. This can cause the outer o-rings to
pinch, cut, or crimp.
FIGURE 6
Eductor Piston/ Eductor Sleeve Assembly
Follow the instructions for the replacing drive motor assembly through step 7, then continue as follows:
1. With the drive motor and backplate set aside, firmly pull the eductor piston & sleeve assembly from the valve body.
2. Lightly lubricate the o-rings of the replacement piston & sleeve assembly with silicone grease.
3. Reverse the procedure for reassembly.
NOTICE: Use only silicone grease; petroleum-based lubricants will cause the degradation of the rubber components.
NOTICE: The eductor piston & sleeve assemblies are unique to the softener, filter, and Super S
TM
controls. Refer to the
parts list to ensure that the proper assembly is used.
