DKC600 (U) & DKC600 (U)Y SLIDING GATE OPERATOR USER’S MANUAL
Conduit
In order to protect the wires, use PVC conduit for wires, conduit must be set into the concrete
when it is poured. Wires within the conduit shall be located or protected so that no damage can
result from contact with any rough or sharp part.
Concrete pad
The base unit of the gate operator requires a concrete pad in order to maintain proper stability.
The concrete pad should be approximately 300mm x 200mm x 200mm deep in order to provide
for adequate operation. The pad should be 70mm above finish grade. Be sure to locate the pad
so that it will not interfere with the gate.

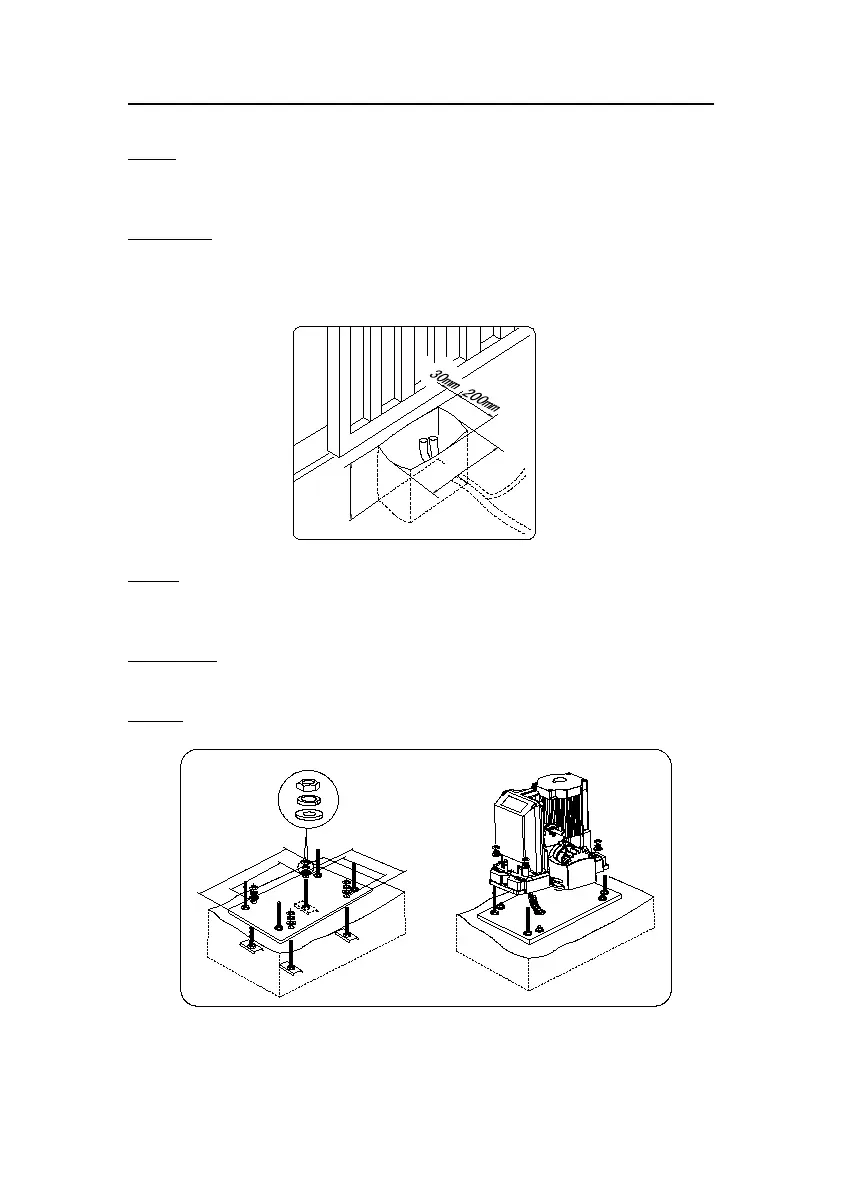

Fig.4
Anchors
You can use the anchors, bolts, washers and nuts that are provided with the operator see Fig.5.
These anchors must be set into the concrete when it is poured, or you can use wedge
expansion bolts.
Operator base
Mount the gate operator base to the concrete pad see Fig.5.Verify that the operator is leveled
properly.
Operator
Mount the gate operator to the base using nuts and washers.
Operator base
C
o
n
c
r
e
t
e
p
a
d
1
7
0
2
6
3
2
0
3
1
1
0
Nut
Spring washer
Plain washer
Fig.5
300mm
250mm
