ELECTRICAL CONNECTIONS
Only qualified personnel must carry out electrical connection.
The technical data plate, located on the back of the equipment, contains all the necessary information for
correct connection.
The equipment must be connected to a power supply with a H05 RN-F type cable (supplied by the installer).

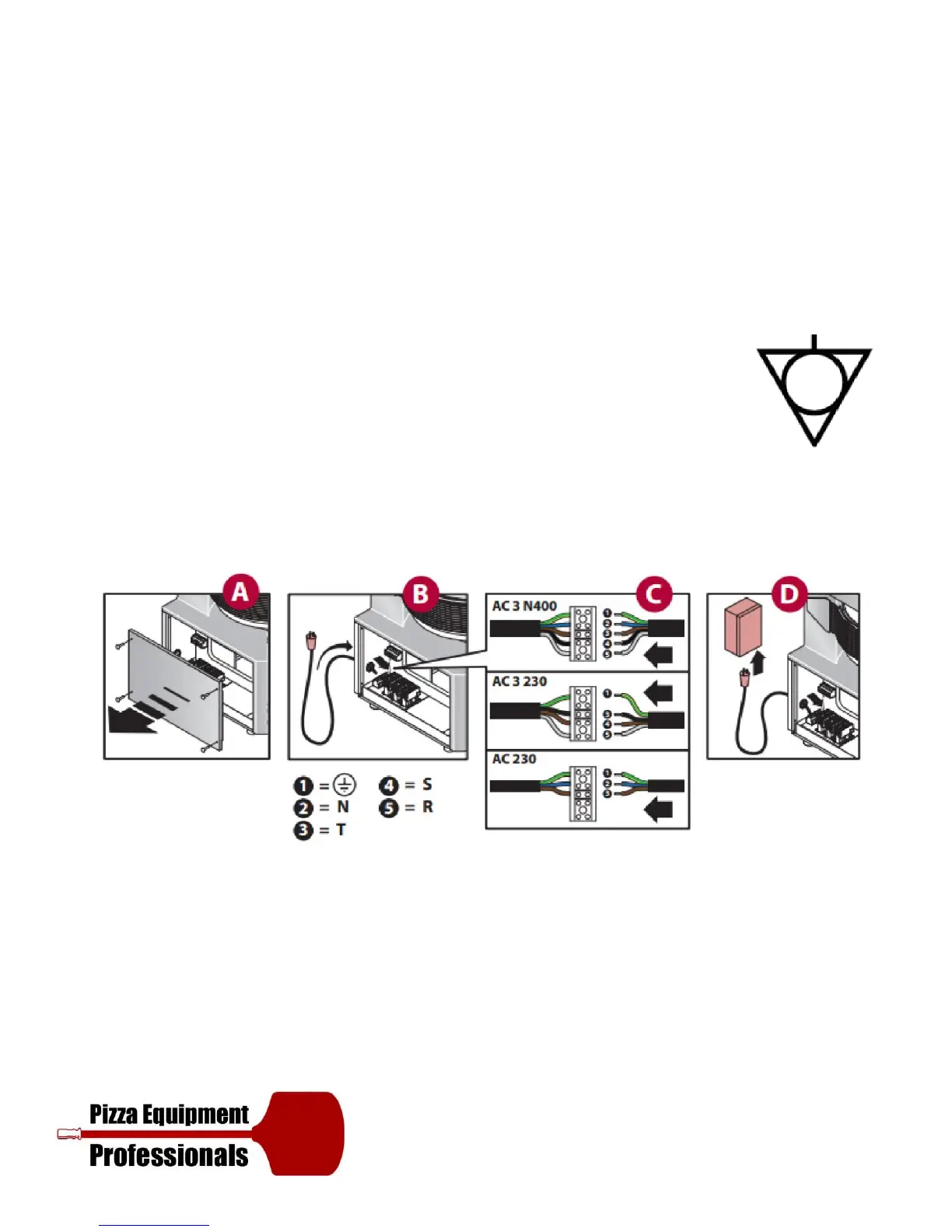

To carry out this operation, remove the right side equipment panel, connect the cable to the terminal board
and secure it with the relative cable gland located on the back of the equipment itself.
Earth the equipment and connect it to the circuit; the terminal intended for this very purpose can be found
on the back of the equipment, and is marked with the internationally-recognized symbol.
Connect the cable to the automatic master switch (omnipolar differential magnothermal
switch with a contact opening of at least 3 mm), arranged in the immediate vicinity.
The manufacturer will not assume any responsibility in the instance where the above described is not
respected.
