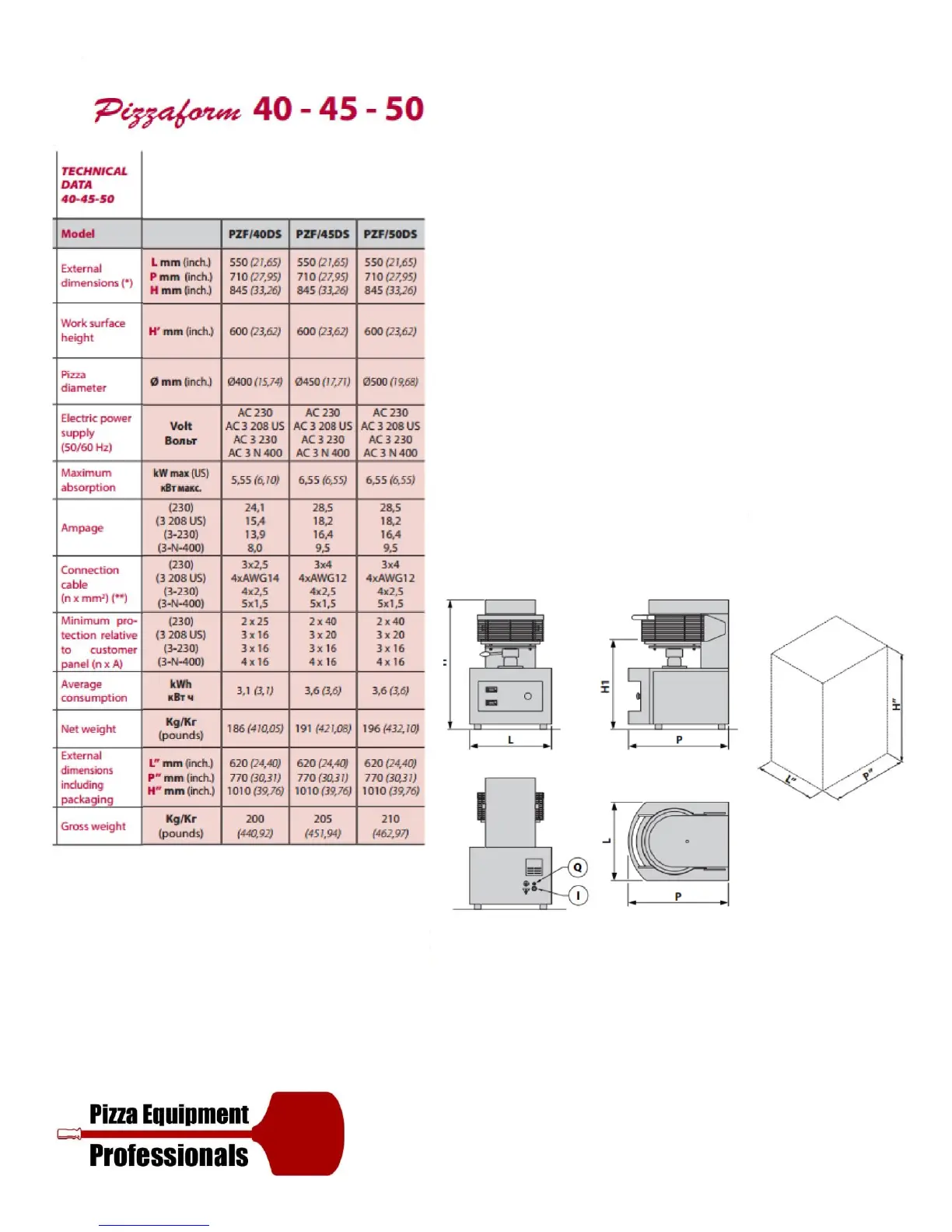

Cuppone Pizzaform - Technical Data Pizzaform 40-45-50; Dimensions and Packaging Specs (40-45-50); Electrical Specs (40-45-50); Work Surface Height (40-45-50)

7
Front View
Side View
Packaging
Dimensions
Ensure that you keep a distance of at least 500 mm
(20
inches) between the equipment and other
equipment of inflammable materials.
We advise that you leave an unrestricted space of
at least 500 mm to the right side to allow for easy
access to the electrical system.
Leave the space above the equipment free: do not
place anything on it.
L: width P: depth H: height
These cables can only be used provided
that their length does not exceed 2 m
between the point where the cable or
relative protection enters the equipment
and the plug input.
Plain View
Rear View
