INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com

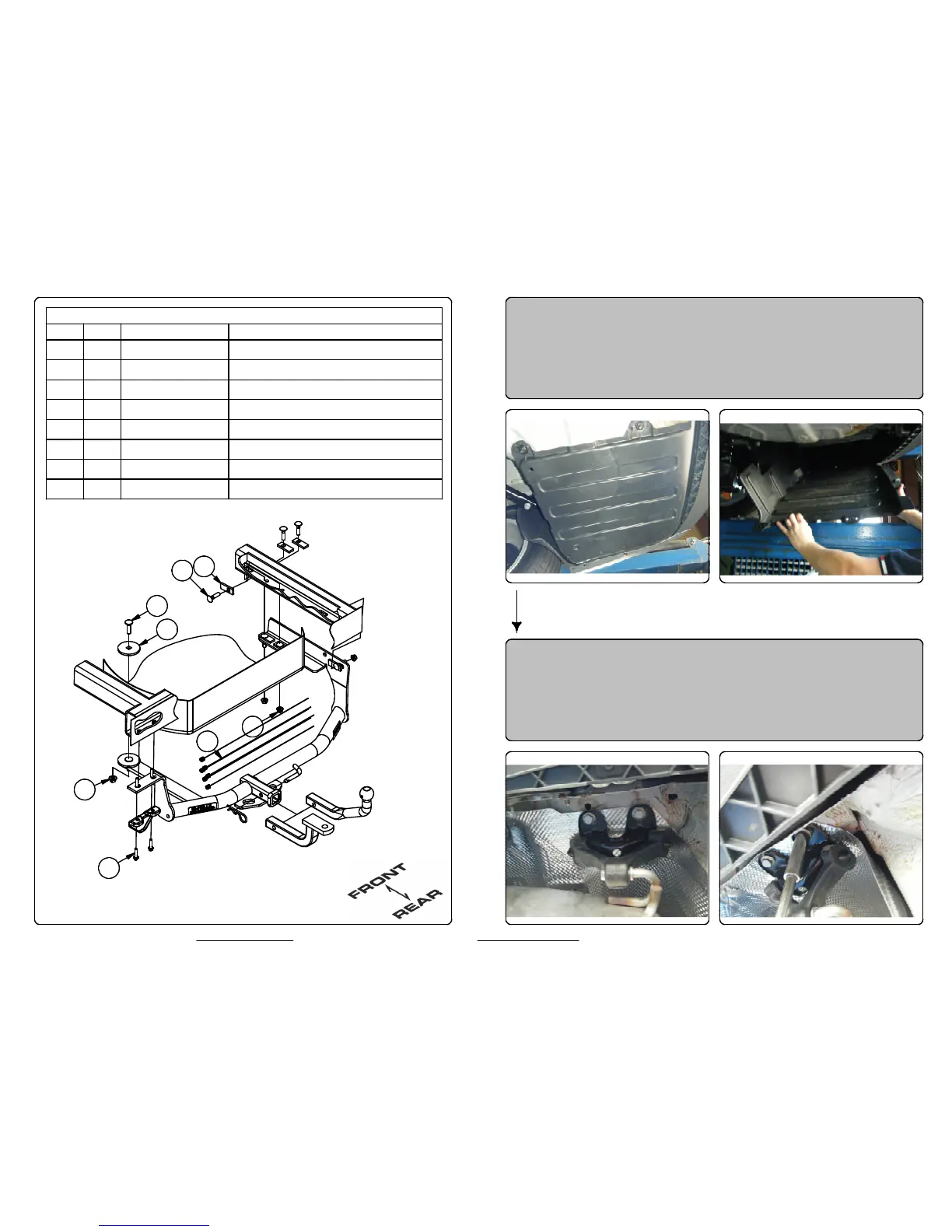

Parts List
DESCRIPTIONPART NUMBERQTYITEM
M8-1.25 x 35 HEX FLANGE BOLT
M8 - 1.25 x 35 HFB21
.250 x .88 x 2.25" SQUARE HOLE SPACERCM-SP2
32
CARRIAGE BOLT7/16 - 14 x 1 3/4
33
CARRIAGE BOLT1/2-13 x 1 3/4
14
.250" SPACER PLATECM-SP621
5
HEX FLANGE NUT7/16-1436
HEX FLANGE NUTHFN 12131
7
7/16" FISHWIRE7_16 FISHWIRE38
1. Lower the passenger side underbody panel by
removing (3) torx head screws and (2) hex nuts.
(Save fasteners for use in Step 10.)
2. Lower the exhaust by removing the (2) hex flange bolts
from exhaust hanger bracket. Return to vehicle owner.
(Leave the muffler attached to the exhaust hanger
bracket.)
1
7
4
5
3
2
6
8
