GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH: LBS. TRAILER WEIGHT & LBS. TONGUE WEIGHT.
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
WARNING: ALL NON-TRAILER LOADS APPLIED TO THIS PRODUCT MUST BE SUPPORTED BY AUXILIARY STABILIZING STRAPS.
** FAILURE TO PROPERLY SUPPORT NON-TRAILER LOADS WILL VOID PRODUCT WARRANTY**
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT
1-800-798-0813
HITCH WEIGHT: LBS.
INSTALL TIME
PROFESSIONAL: MINUTES
NOVICE (DIY): MINUTES
INSTALL NOTES:
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
2,000 200
32
45

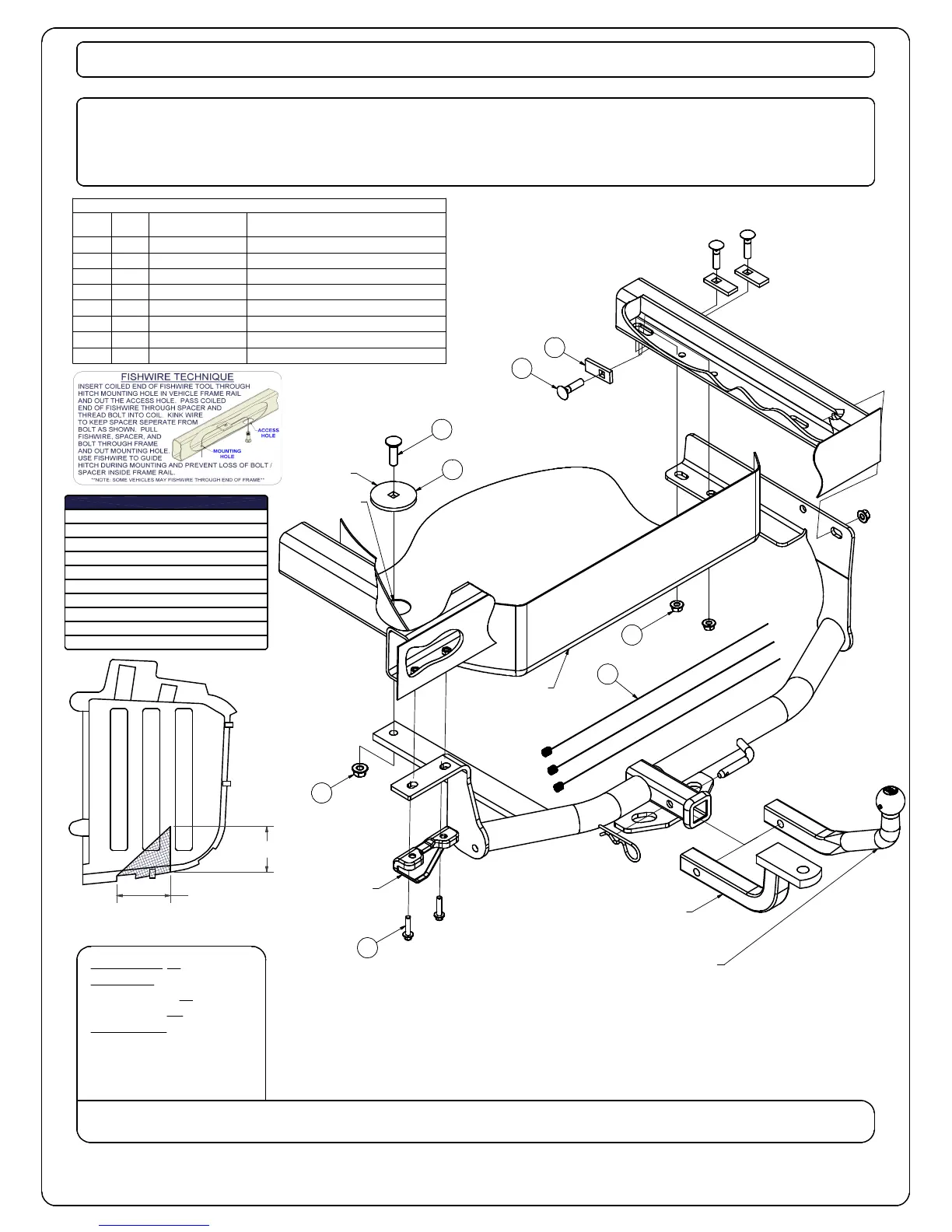

VOLKSWAGEN PASSAT SEDAN
11/26/2012
11232
90
Parts List
DESCRIPTIONPART NUMBERQTYITEM
M8-1.25 x 35 HEX FLANGE BOLTM8 - 1.25 x 35 HFB21
.250 x .88 x 2.25" SQUARE HOLE SPACERCM-SP232
CARRIAGE BOLT7/16 - 14 x 1 3/433
CARRIAGE BOLT1/2-13 x 1 3/414
.250" SPACER PLATECM-SP621
5
HEX FLANGE NUT7/16-14
36
HEX FLANGE NUTHFN 121317
7/16" FISHWIRE7_16 FISHWIRE
38
5
8
2
7
4
3
6
SPARE TIRE WELL
SPARE TIRE
WELL PLUG
SEAL WITH
SILICONE
EXHAUST
HANGER
BRACKET
1
Page 1 of 2
-NO DRILLING REQUIRED
-LOWER EXHAUST
-FISHWIRE HARDWARE
-TRIM UNDERBODY PANEL
-REMOVE DRAIN PLUG
-TEMPORARILY REMOVE SPARE TIRE
DESIGNED FOR USE WITH
BALL MOUNT # D-20 / 45520
7.00 in
7.00 in
UNDERBODY PANEL
TRIM DIAGRAM
EURO MOUNT OPTION AVAILABLE
#45561 (1-7/8" BALL) #45562 (2" BALL)
TOOLS REQUIRED
#15 AND #25 TORX DRIVERS
10mm, 13mm, 3/4", 11/16" SOCKETS
10" EXTENSION
RATCHET
TORQUE WRENCH
ROTARY CUTTING TOOL
TAPE MEASURE
MASKING TAPE
CAULK
SAFETY GLASSES
(EXCEPT TDI AND 3.6L W/ DUAL EXHAUST)
