curt 11354 - Installation Walkthrough; Parts List and Preparation; Step 1: Remove Existing Bolt; Step 2: Reverse Fishwire Hardware

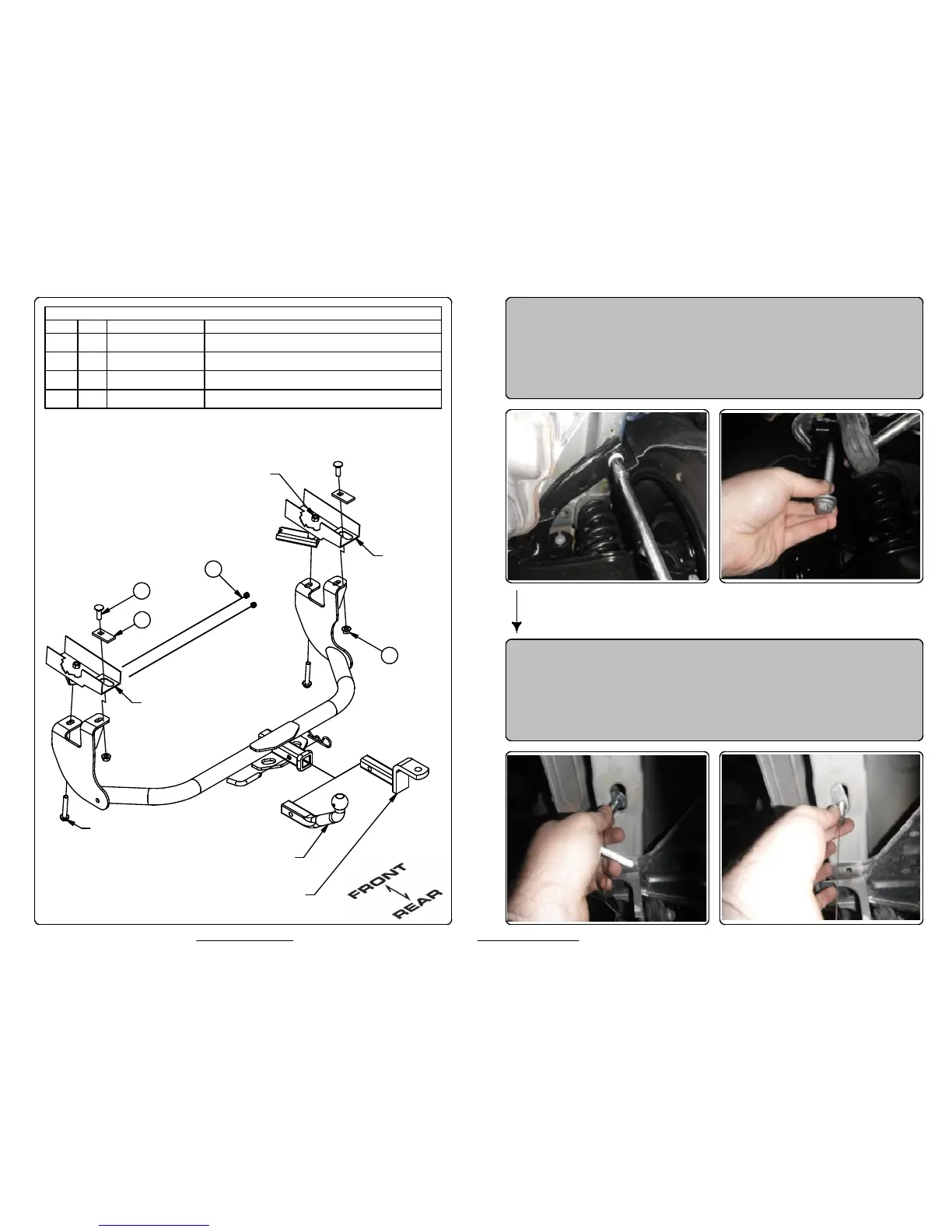

INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
Parts List
DESCRIPTIONPART NUMBERQTYITEM
.250 x 1.25 x 2.50" SQUARE HOLE SPACERCM-SP17
21
CARRIAGE BOLT1/2-13 x 1 1/222
HEX FLANGE NUTHFN 121323
1/2" FISHWIRE1_2 FISHWIRE24
2
1
4
3
1. Remove existing bolt from driver and passenger side of
vehicle. Retain bolt for hitch installation.
2. Reverse fishwire 1/2"-13 x 1 1/2" carriage bolts and
CM-SP17 spacers into driver and passenger side
frame rails.
EXISTING BOLT
(BOTH SIDES)
FRAME RAIL
FRAME RAIL
EXISITNG WELDNUT
(BOTH SIDES)
EURO MOUNT OPTION
AVAILABLE # 45571 (1 7/8" BALL)
& # 45572 (2" BALL)
DESIGNED FOR USE WITH
BALL MOUNT # D-55001 / 45501
