18112-INS-RB
•
PAGE 4
Step 2

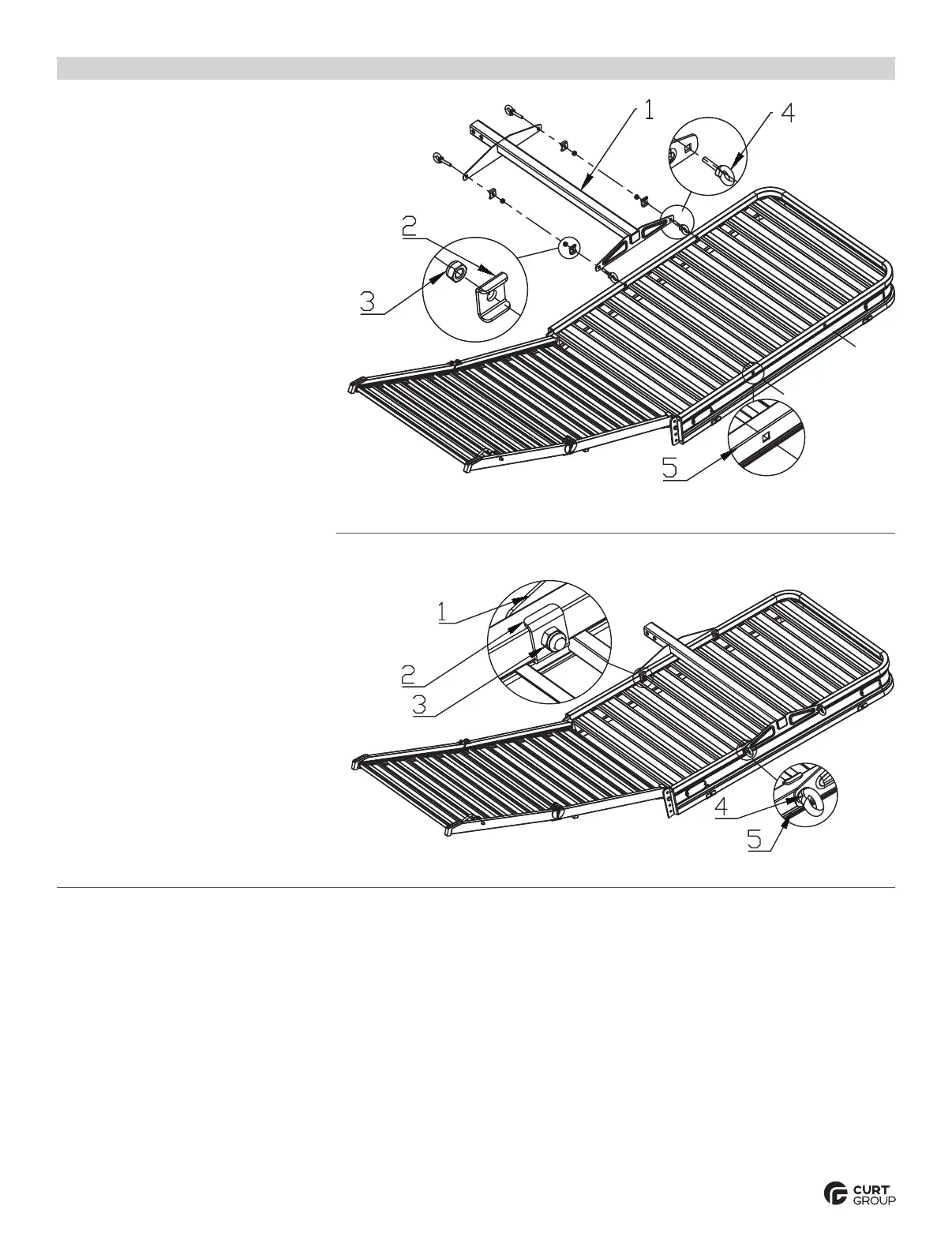

Place the bottom bracket (#1) on
the bottom of the carrier frame (#5)
and line up the square holes.
Insert an M10 eye bolt (#4) through
the bottom bracket, carrier frame and
U-clamp (#2) in all four locations.
Note: The head of the eye bolt will
be on the outside of the carrier frame.
Secure with M10 lock nuts (#3).
Snug the hardware,
but do not fully tighten.
