18112-INS-RB
•
PAGE 5

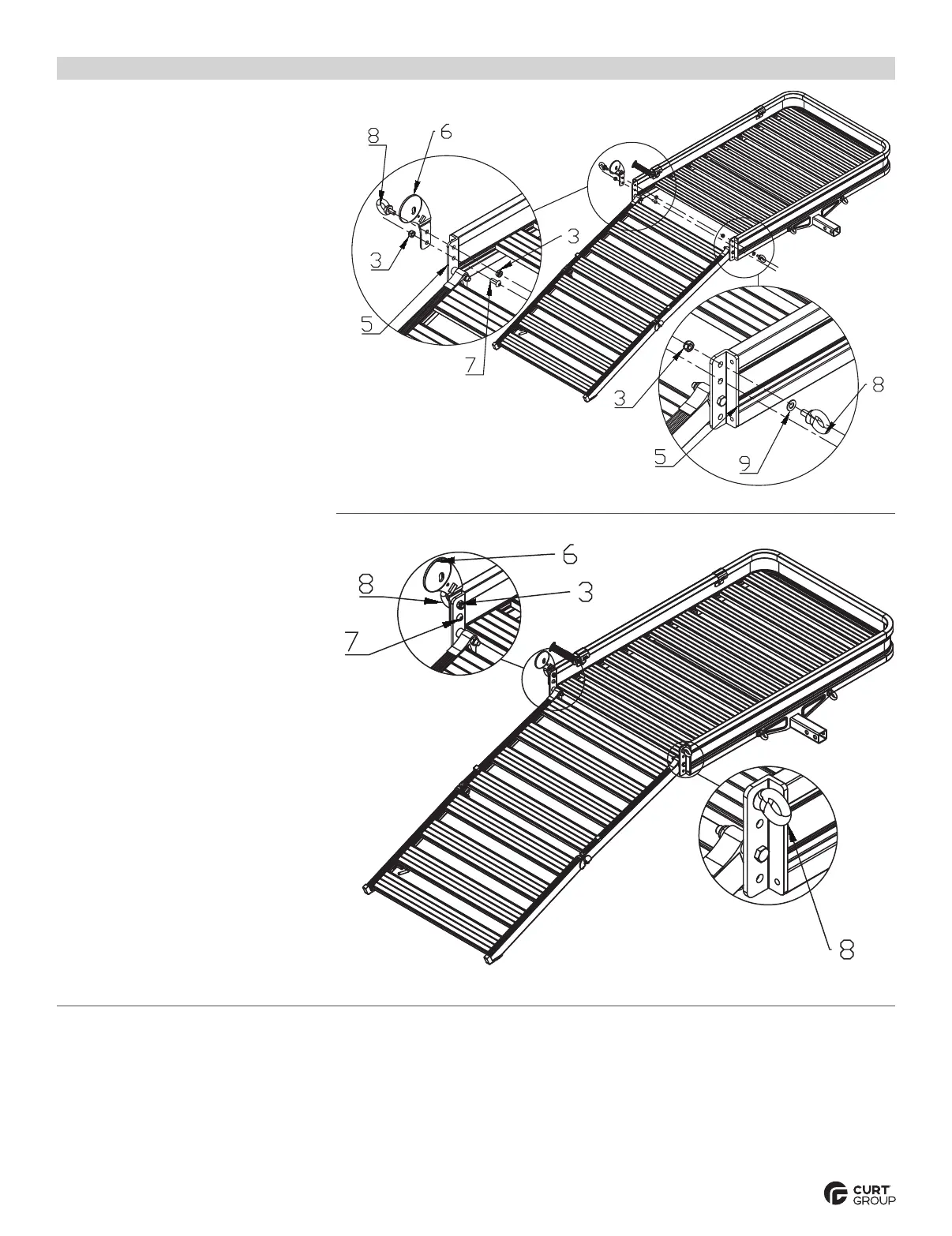

Step 3
Mount the fixed plate (#6) to the carrier frame
(#5) by inserting an M10 eye bolt (#8) through
the upper hole in the fixed plate and the upper
hole in the carrier frame as shown. Secure with
an M10 lock nut (#3).
Insert an M10 button socket cap screw (#7)
through the lower hole in the carrier frame
and the lower hole in the fixed plate. Secure
with an M10 lock nut.
Insert M10 eye bolt into top hole of carrier
frame as shown. Slide M10 flat washer (#9)
onto eye bolt. Secure with an M10 lock nut.
At this time, torque all M10 hardware
in steps 2 and 3 to 12 ft-lbs.
