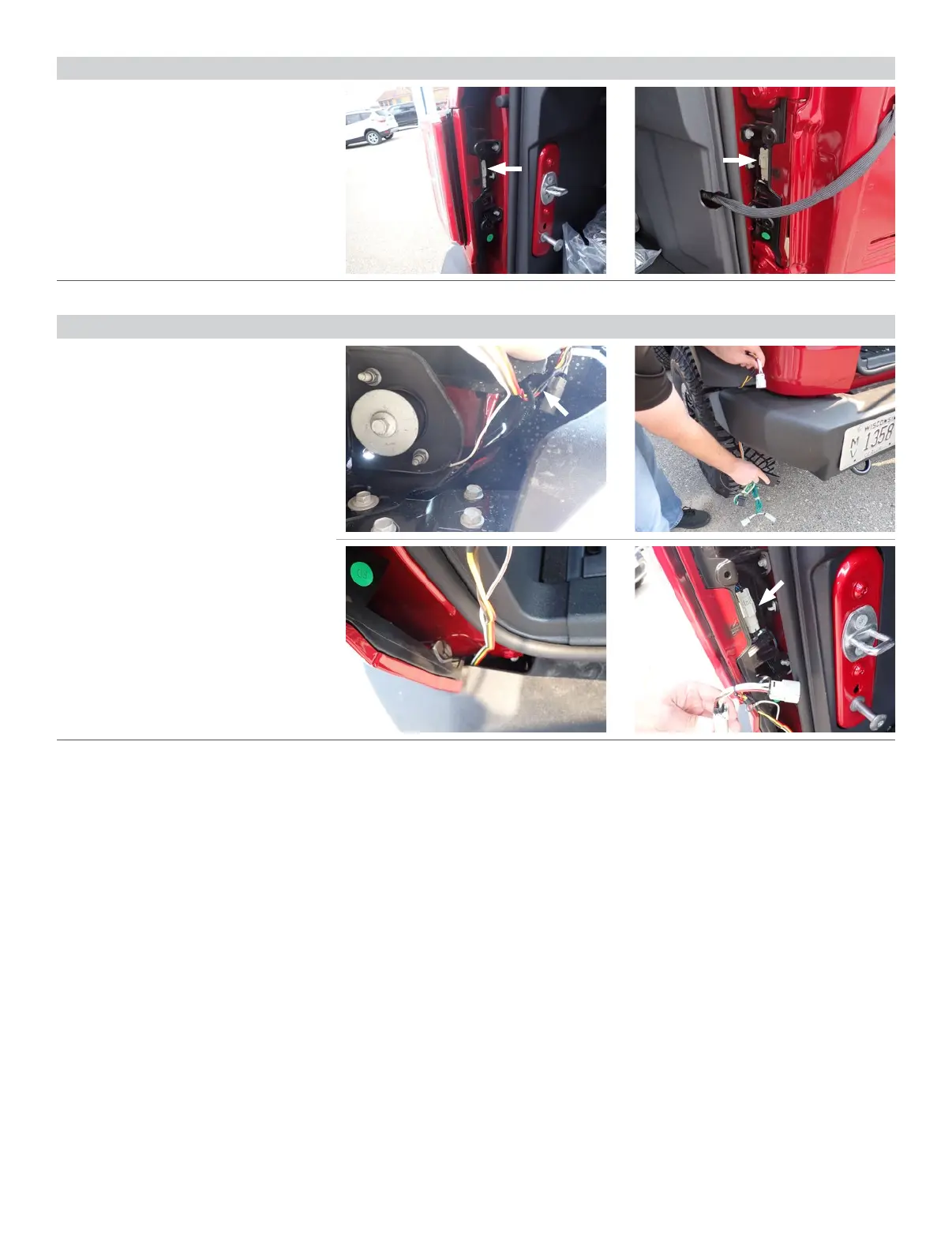

Step 5
Locate the vehicle taillight wiring connectors.
The connectors will be similar to those on
your new custom wiring product. Separate the
connectors from the taillight housing taking
care not to damage the locking tabs.
Repeat on the other side of the vehicle.
Step 6
Starting on the driver side, locate the custom
wiring end with the yellow wire. Route the
yellow wire behind the taillight wiring and wrap
the wire around the rear bumper so that the
connectors are above the bumper and the black
converter box is below the bumper.
Insert the custom wiring end with yellow
wire between the separated connectors.
Make sure the connectors are fully
inserted with locking tabs in place.
Route the wires up and behind the rear door
seals that were removed in steps 4 and 5.
